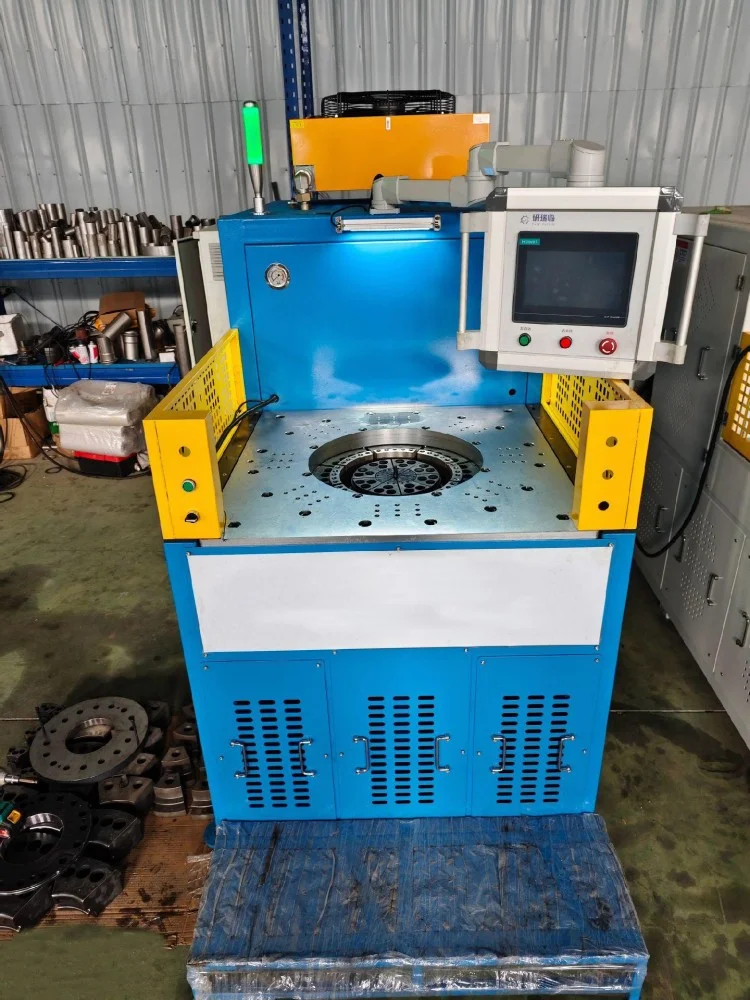

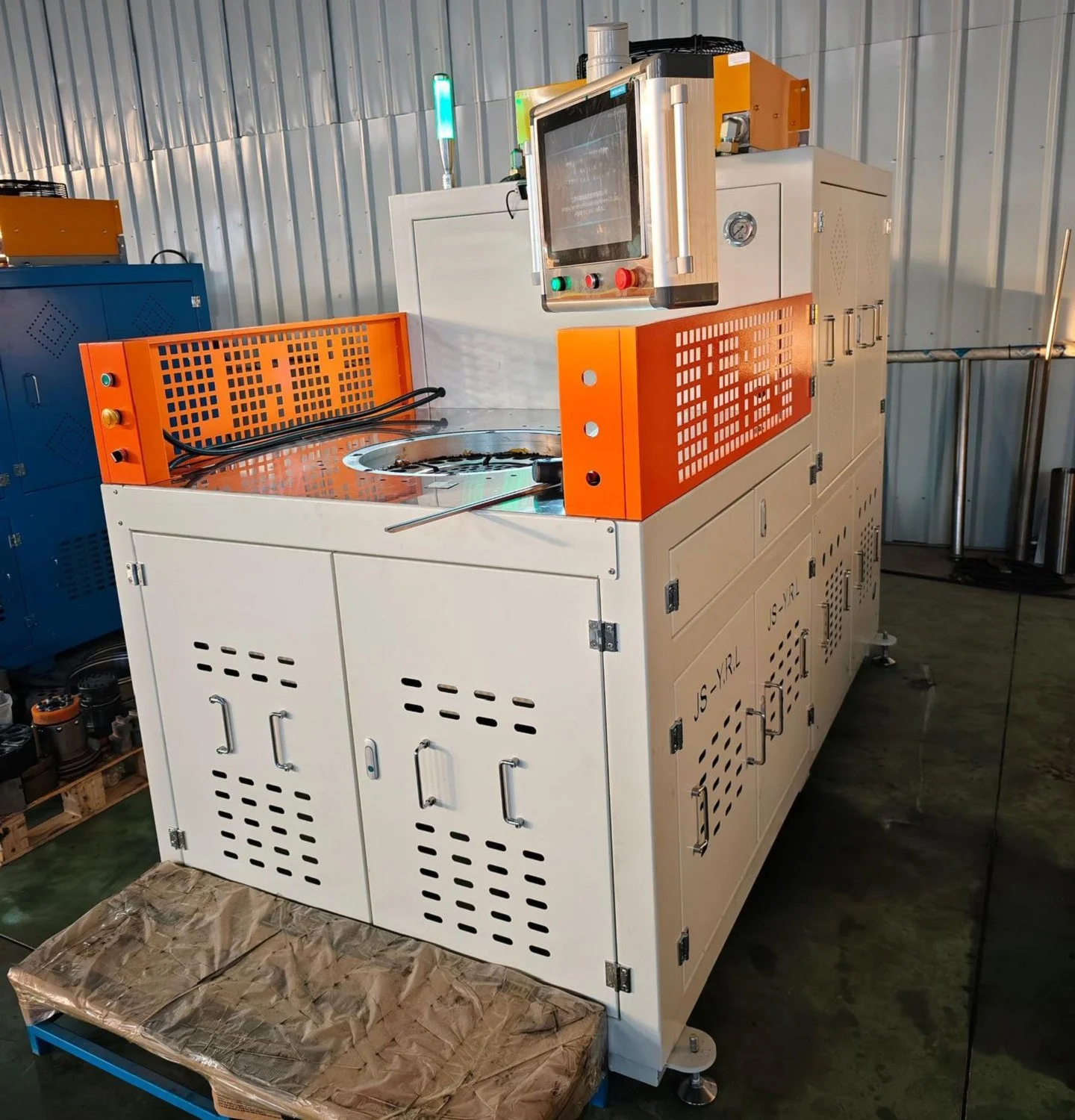

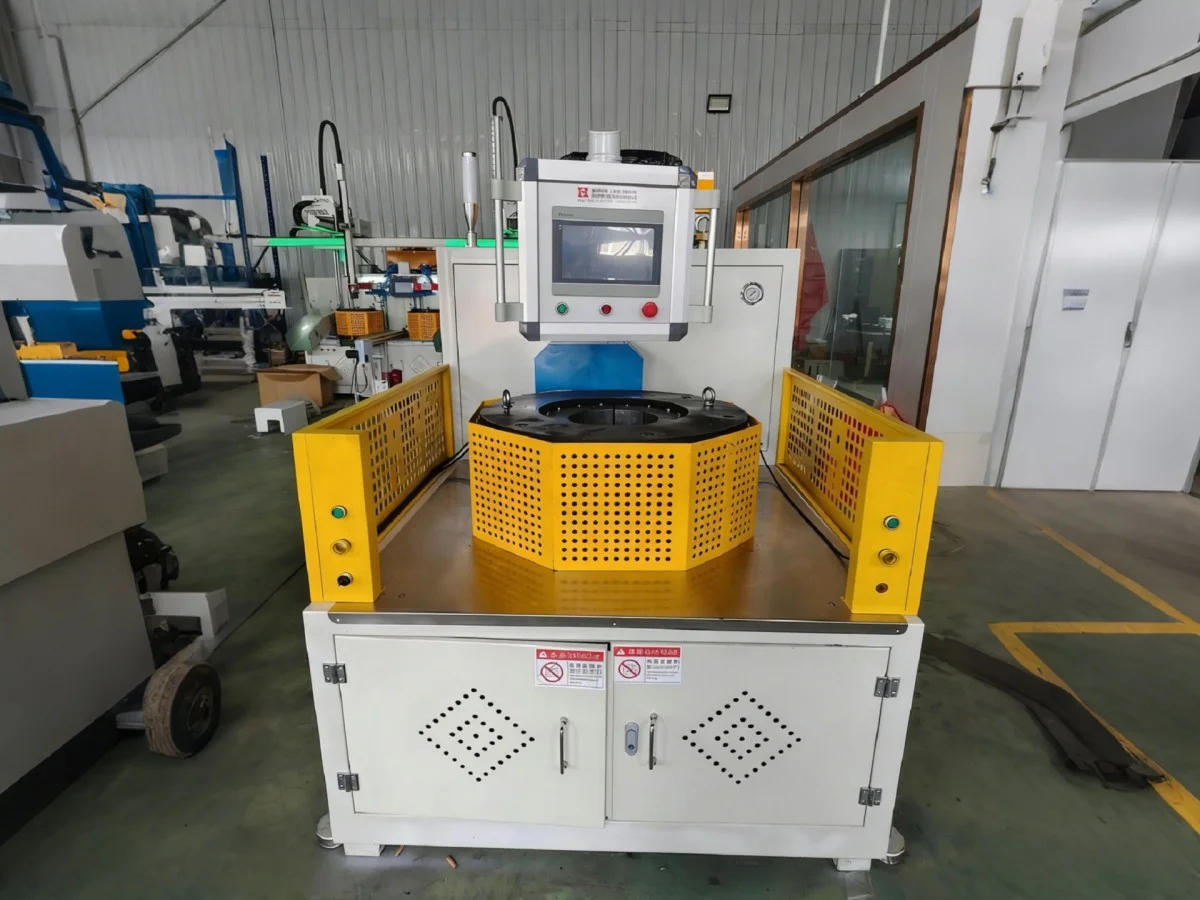

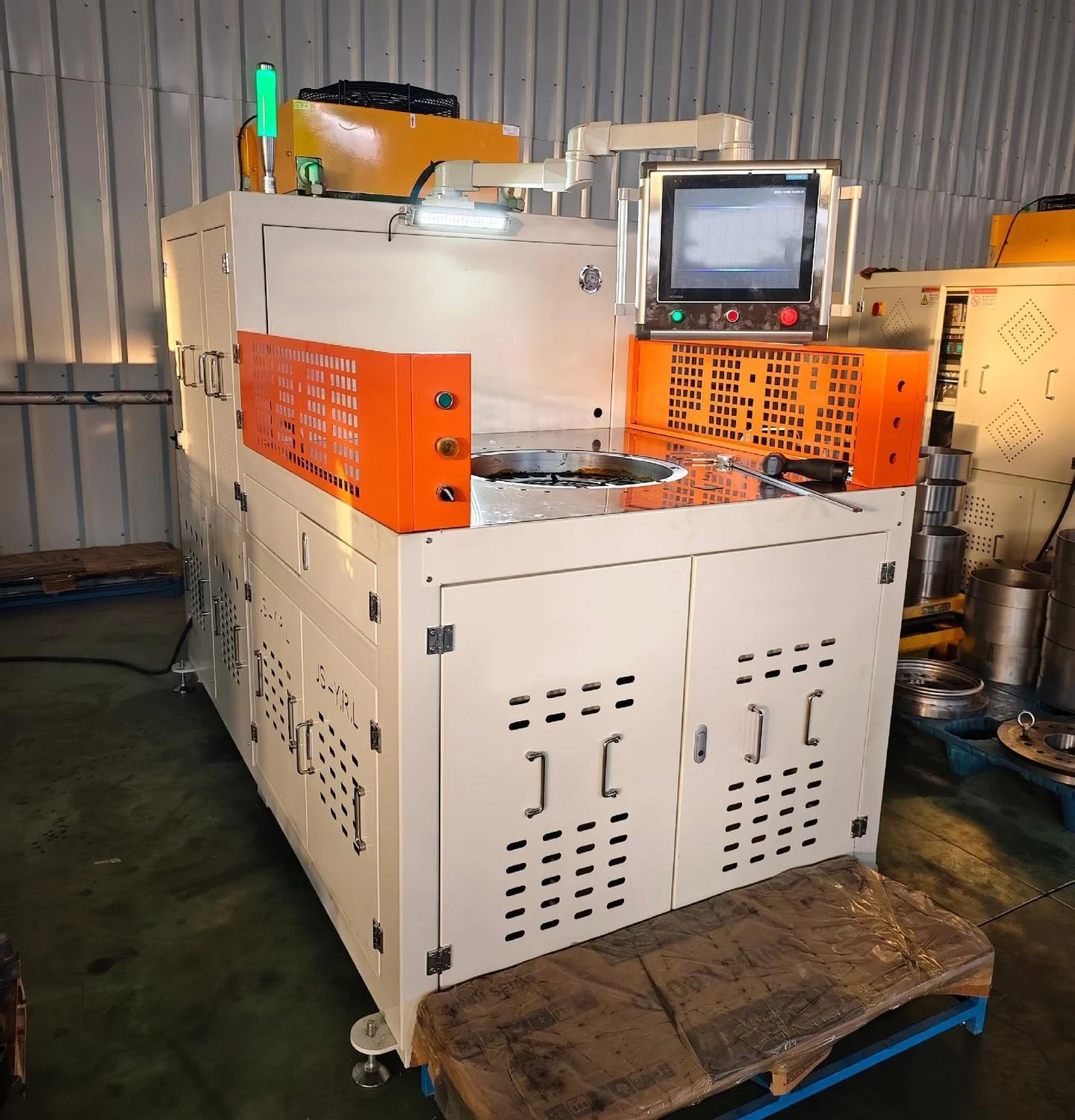

Single-Station CNC Tube End Forming Machine

OEM Custom Tube End Forming Machine Solutions

Applications:

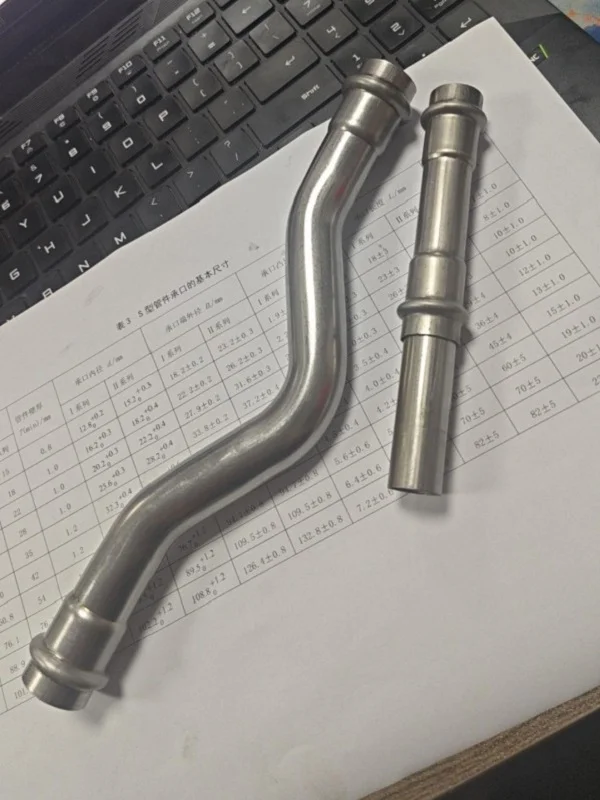

• Automotive Tube Forming: Suitable for fuel pipes, brake lines, exhaust systems, and other automotive tubing components
• Plumbing and Pipeline Systems: Used for water supply, drainage, and gas pipeline tube end forming applications
• HVAC and Refrigeration Tubing: Ideal for copper and aluminum tube forming in air conditioning and cooling systems
• Shipbuilding and Marine Applications: Applicable for corrosion-resistant pipe fittings and marine tubing systems

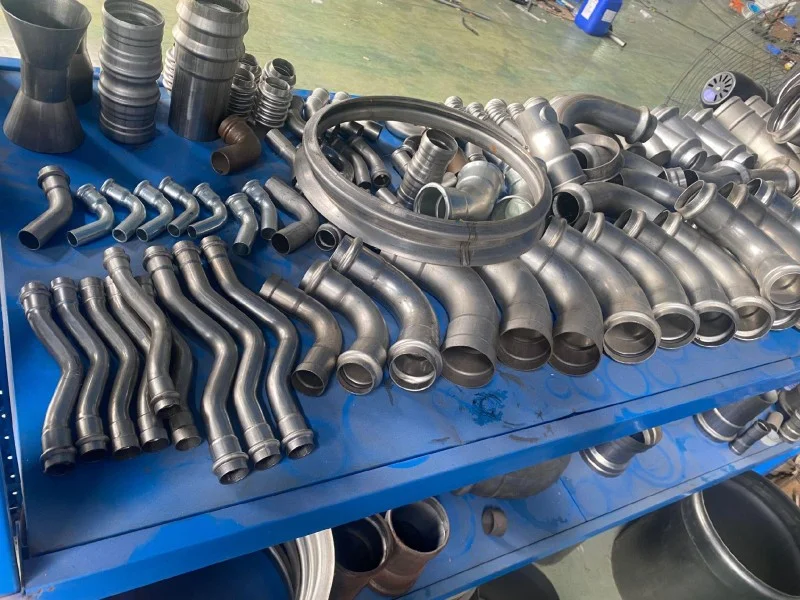

• General Tube Fabrication: Widely used in metal tube processing, pipe fitting manufacturing, and industrial tube forming production

Product Features:

• PLC Centralized Control: Integrated control system improves operational stability and ensures reliable performance in automatic tube end forming machine applications
• Automatic Lubrication System: Centralized lubrication reduces wear, ensures smooth machine operation, and extends equipment service life
• Production Counter Function: Built-in counter supports real-time production tracking and efficient manufacturing management
• Integrated Cooling System: Oil tank and frame combined with optional air cooling or water cooling for improved thermal stability during continuous operation
• Flexible Operation Modes: Supports foot switch and button box control for flexible and user-friendly operation
• Quick Die Change System: Compatible with international standard tooling, enabling fast changeover for different tube forming processes
• High Production Efficiency: High-speed forming capability with high yield rate and consistent precision for mass production

Key Advantages:

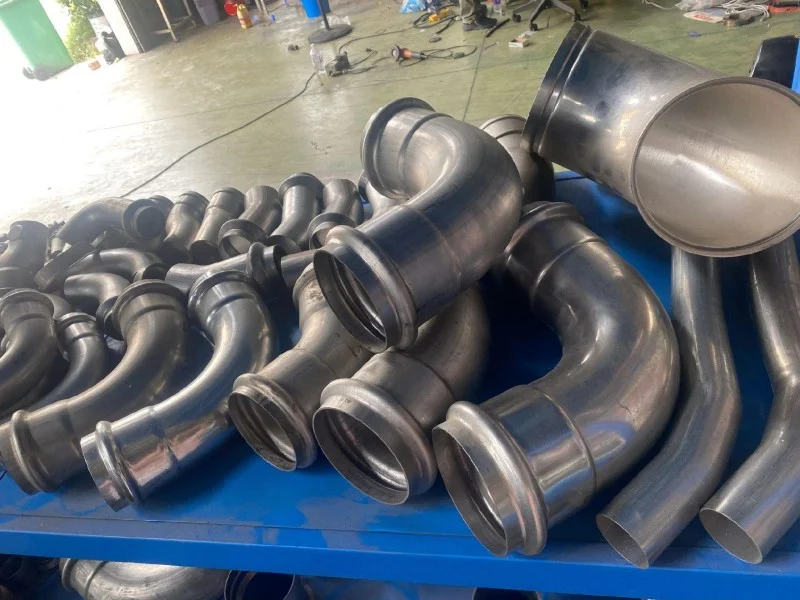

• High Precision Tube End Forming: Burr-free and scratch-free tube ends with uniform wall thickness, ensuring high-quality forming results
• User-Friendly Operation Manual loading and unloading design makes it ideal for small batch production, prototyping, and flexible manufacturing

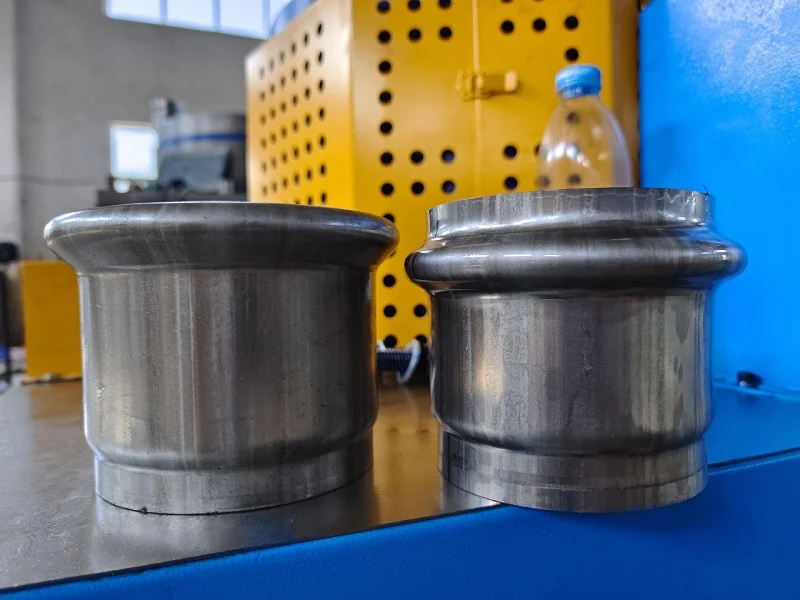

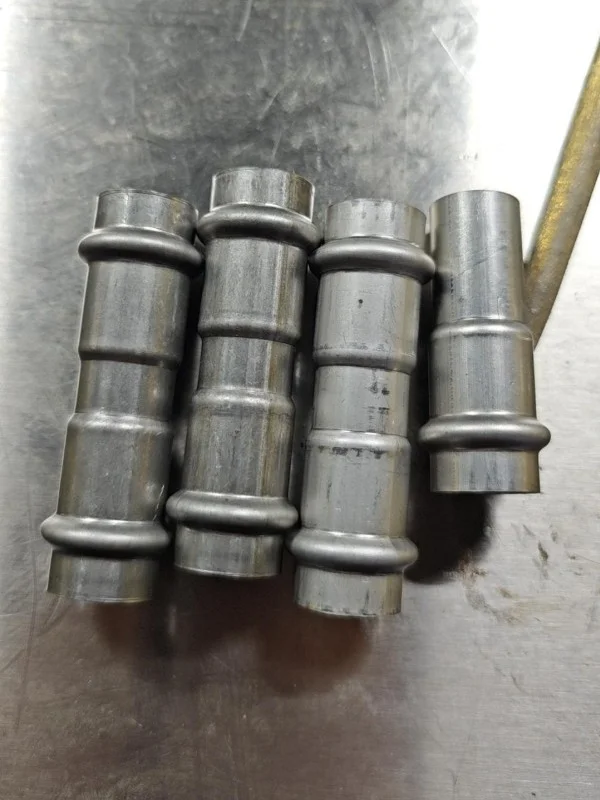

• Multi-Process Capability: Supports expanding, reducing, flanging, beading, and other tube end forming processes with quick tooling changeover
• Compact Machine Structure Space-saving design with easy installation and commissioning, suitable for various workshop layouts
• Stable and Reliable Performance: Low failure rate, reduced maintenance requirements, and long-term operational stability

Structure & Control System:

• High-Rigidity Machine Frame: Integrated high-strength cast iron structure provides excellent rigidity, minimizes vibration, and ensures stable operation for CNC tube end forming processes

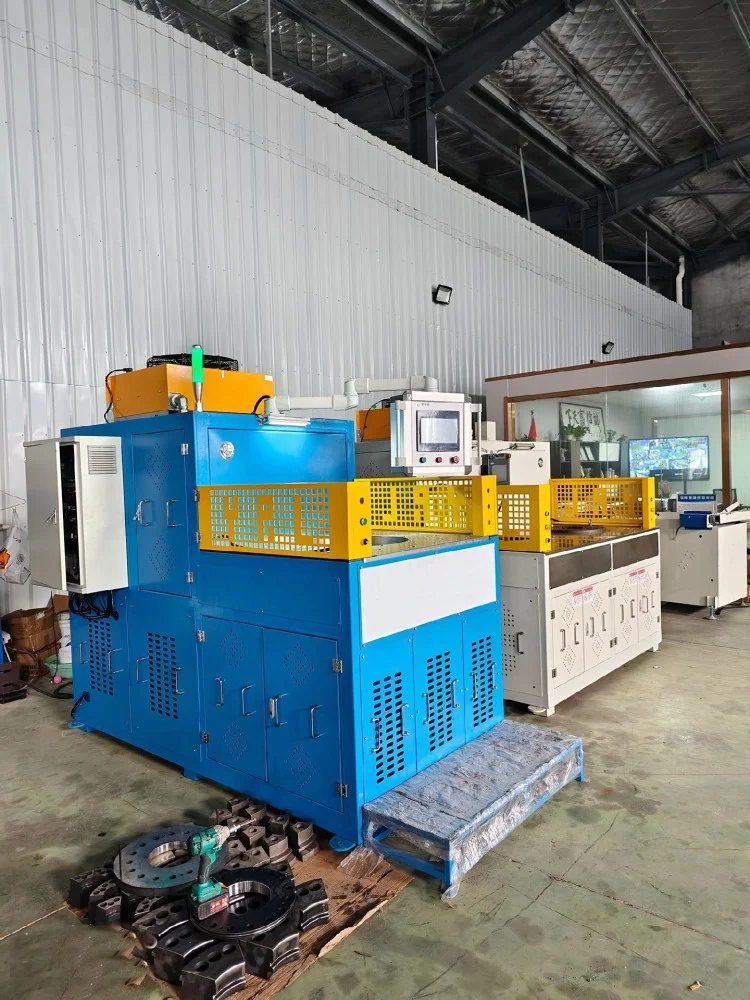

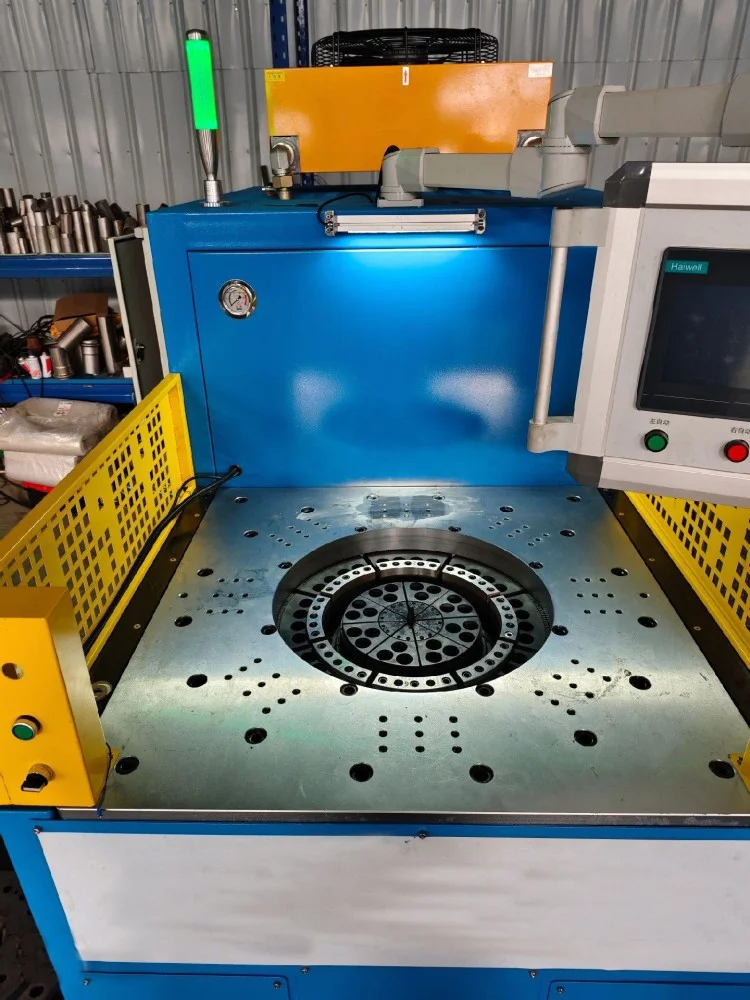

• Single-Station Forming  Design:  A single-station tube forming structure enables quick die change, simplified setup, and flexible operation for different tube end forming applications.

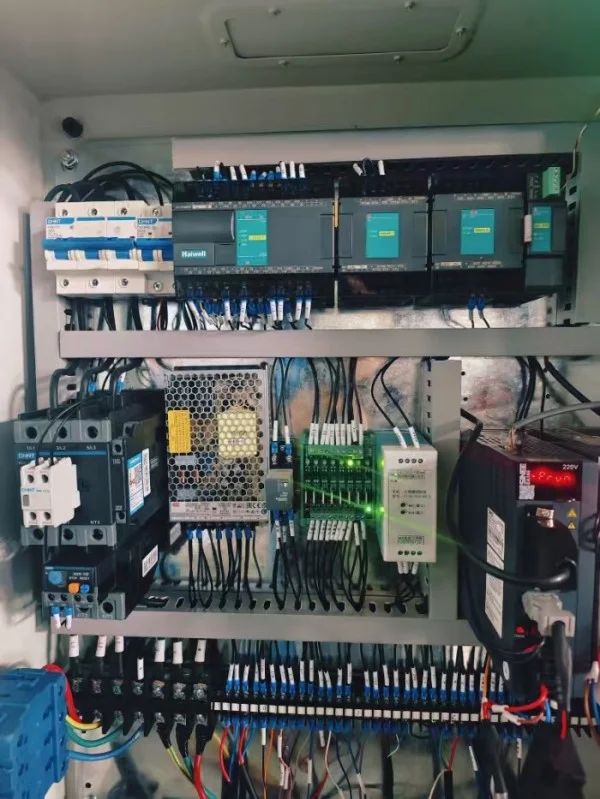

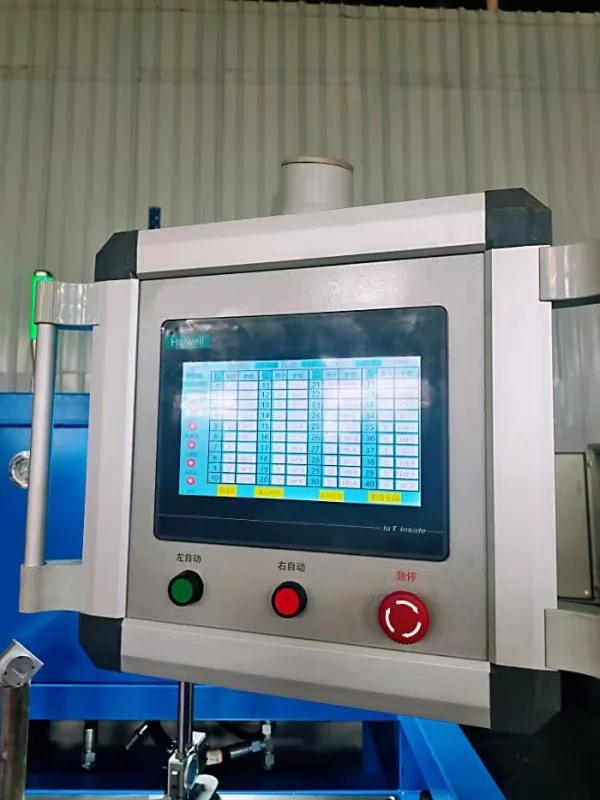

• PLC Control System with HMI: Advanced PLC control combined with touchscreen interface allows parameter setting, storage, and one-touch recall for automatic tube end forming operations

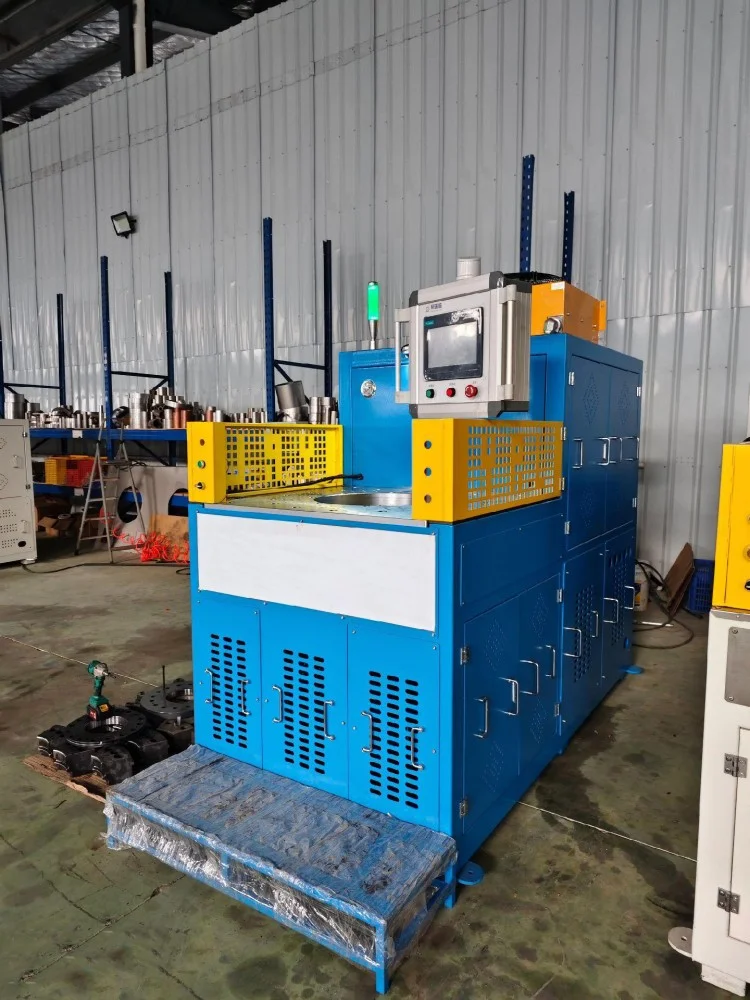

• Servo Drive System: High-precision servo-controlled motion ensures consistent forming accuracy, repeatability, and stability in CNC tube forming applications
