26" NC Industrial Horizontal Band Saw

Serra de fita horizontal automática para serviços pesados de 26 polegadas nc img2

26 inch nc automatic heavy duty horizontal band saw img4

26 inch nc automatic heavy duty horizontal band saw img3

26 inch nc automatic heavy duty horizontal band saw img1

Número do modelo: AEK-VA-65NC Series

~~$9200.00~~$9000.00

(Preço de Referência)

O AEK-VA-65NC is a high-performance fully automatic metal cutting machine, specifically designed to meet the demanding requirements of industrial-scale cutting of large-size ferrous and non-ferrous materials with high precision. It features a cutting range of 26 × 26 inches e um variable blade speed of 18–60 m/min, enabling efficient cutting of a wide range of workpieces.

Equipped with an sistema de controle duplo automático/manual, operators can easily switch between automatic and manual modes for flexible operation. Its worm gear drive system ensures stable power transmission and long-term durability for continuous operation.

Enviar consulta agora

Descrição
Especificações

26 nc automatic heavy duty horizontal band saw for metal cutting

26 horizontal hydraulic metal band saw dimensions

26 cnc heavy duty industrial horizontal bandsaw for steel alloys

26 horizontal hydraulic metal band saw back structure

Principais características

Open-Bottom Discharge Table– Allows coolant to flow back in time, preventing splashing and keeping the work area clean.
Built-in Roller Feeding Table– Ensures smooth and stable material feeding.
Bridge-Type Feeding Design– Reduces friction and improves stability during material transfer.
Automatic/Manual Dual Control System– Flexible operation to suit different user preferences and cutting requirements.
Hydraulic Blade Clamping with Pressure Gauge– Provides precise control of blade tension, preventing breakage.

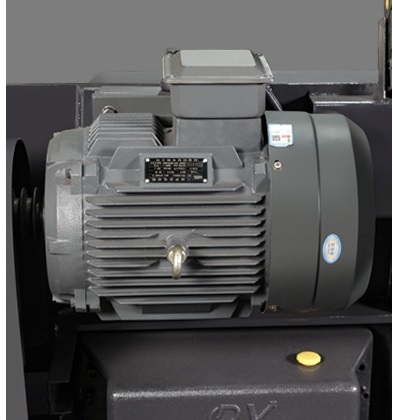

High-Load Three-Phase Copper Motor (7.5 kW, 6-Pole)– Heavy-duty performance with reliable overload and overheating protection.
Full-Stroke Hydraulic Cylinder with Adjustable Pressure– Ensures smooth operation and adaptable cutting force.
Widened Vise with Four-Axis Guided Movement– Enhances clamping stability and minimizes vibration during cutting.

hydraulic blade clamping with pressure gauge 26 horizontal metal band saw aek va 65nc

automaticmanual dual control system 26 horizontal metal band saw aek va 65nc

built in roller feeding table 26 horizontal metal band saw aek va 65nc

open bottom discharge table 26 horizontal metal band saw aek va 65nc

three phase pure copper 6 pole high load motor 26 horizontal metal band saw aek va 65nc

full stroke hydraulic cylinder with adjustable pressure 26 horizontal metal band saw aek va 65nc

Aplicações típicas

Fabricação Mecânica– Shafts, pipes, plates, and large billets.
Indústria de Estruturas de Aço– H-beams, square tubes, angle steels, and structural profiles.
Indústria automotiva– Engine blocks, chassis parts, and large precision components.
Máquinas de construção– Frames, heavy-duty steel parts, and fabricated assemblies.

Parâmetro	AEK-VA-65NC
Faixa de corte (mm)	650 × 650
Velocidade da lâmina (m/min)	18–60 (frequência variável)
Tamanho da lâmina de serra (mm)	54 × 1,6 × 6530
Motor principal (kW)	7,5 kW
Motor hidráulico (kW)	2.5 kW
Forma de tensionamento da lâmina	Hidráulico
Grampo de torno	Hidráulico
Motor de refrigeração (kW)	0,09 kW
Curso de avanço (mm)	–
Dimensões da máquina (cm)	310 × 300 × 240
Peso da máquina (kg)	5250
Machine Size(LWH)(mm)	3660x2280x2660
Drive	Worm Gear Drive
