RF 가열 기능이 있는 CNC 수직 튜브 끝단 폐쇄 기계

cnc vertical tube end closing machine with rf heating img1
cnc vertical tube end closing machine with rf heating img4
cnc vertical tube end closing machine with rf heating img3
cnc vertical tube end closing machine with rf heating img2
cnc vertical tube end closing machine with rf heating img1
cnc vertical tube end closing machine with rf heating img4
cnc vertical tube end closing machine with rf heating img3
cnc vertical tube end closing machine with rf heating img2

모델 번호: AEK-TCM NC40 Series

$2300.00$2200.00
(참고가격)

그만큼 Vertical Tube End Closing Machine is a vertically arranged tube processing equipment designed for precise closing, shrinking, sealing, and end forming of metal and plastic tubes.

Key Functions:

  • Tube End Shrinking / Reducing: Reduces the tube end diameter to a specified size, forming tapered, stepped, or other profiles suitable for downstream assembly, such as pipe fittings or valve cores.
  • End Sealing: Completely seals the tube end via extrusion, spinning, or heat bonding to achieve leak-proof and dust-proof results.
  • Custom End Forming: Produces special end shapes like round, flat, or flanged ends according to product requirements.
지금 문의하기

 Vertical Tube End Closing Machine Photos

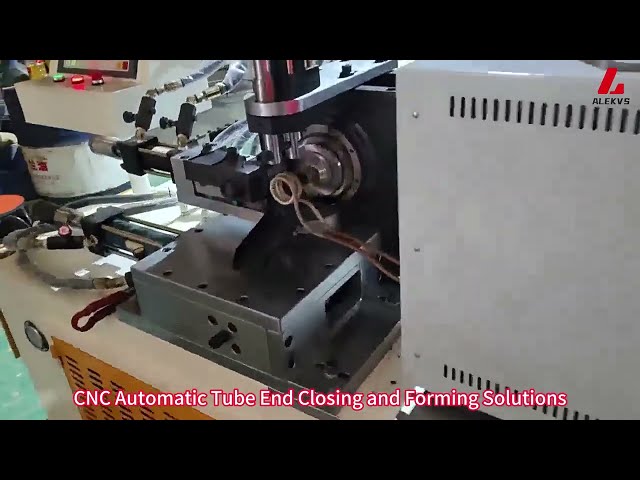

cnc vertical tube end closing machine with high precision forming
vertical tube end closing machine for stainless steel

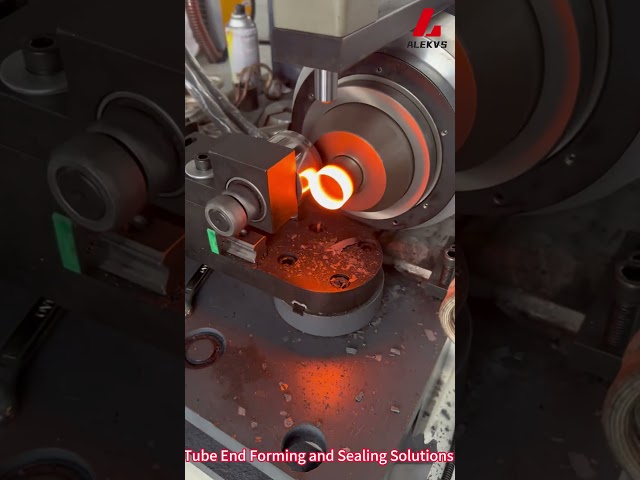

rf heating coil for vertical tube end closing machine
cnc vertical tube end shrinking and sealing machine
hydraulic cylinder drive unit

특징

  • Compact Vertical Layout: Vertical design saves floor space, allowing dense production line arrangements or integration with multiple machines.
  • Precise and Stable Positioning: Tubes are vertically placed, using gravity-assisted alignment combined with hydraulic or servo clamping for end-forming accuracy of ±0.1–0.3 mm.
  • Uniform Forming Quality: Vertical pressing ensures symmetrical force distribution, preventing eccentricity or deformation, especially for thin-walled tubes.
  • High Automation Compatibility: Seamlessly integrates with vibration bowl feeders, robotic arms, hoppers, and other automatic loading/unloading systems for fully unmanned production.
  • 폭넓은 소재 호환성: Primarily designed for metal tubes (copper, aluminum, stainless steel, steel) and, in some models, compatible with rigid plastic tubes.
automatic lubrication system for die and roller
die installation and tool change area
hf generator rf power supply

응용 프로그램

  • Automotive Components: Fuel lines, brake tube end closing
  • Furniture Tubes: Table legs, chair frames end sealing
  • Hardware Accessories: Hydraulic fittings, gas springs tube end forming
  • 가전제품: Air conditioning copper tubes, hot water inlet/outlet
round tube end with rf heated forming sample 1
flat end tube sample carbon steel round tube
tube end sample round stainless steel tube
round tube end with rf heated forming sample 2
모델 AEK-TCM NC40
처리 용량 40x3mm
유압 모터 동력 4kw
회전 모터 동력 3kw
초음파 고주파 기계 15kw
최대 적용 파이프 ￠40 x 2.5mm
최대 파이프 길이 1.5m
유압 12MPa
크기 2100 x 1300 x 1350mm
패키지 크기 2020x1400x1600mm
무게 900kg
