Numero modello: AEK MHD 90

$4300.00$3200.00
(Prezzo di riferimento)
This machine adopts a fully automatic CNC + PLC intelligent control system, integrating hydraulic/servo-driven cold-forming technology to perform punching, collaring, and flanging in a continuous automated process. It ensures high precision, burr-free edges, and no tube deformation, making it ideal for mass production in refrigeration and heat exchange industries.
It is compatible with copper tubes, aluminum tubes, and copper-aluminum composite tubes, and supports straight tubes, bent tubes, and irregular tube types, widely used in D-type tubes, header tubes, evaporator, and condenser applications.
  • Internal punching design: punching from inside the tube outward
  • Cold-forming process: preserves material properties without damage
  • High-rigidity structure: stable operation for continuous long-hour production

Invia richiesta ora

Foto della macchina

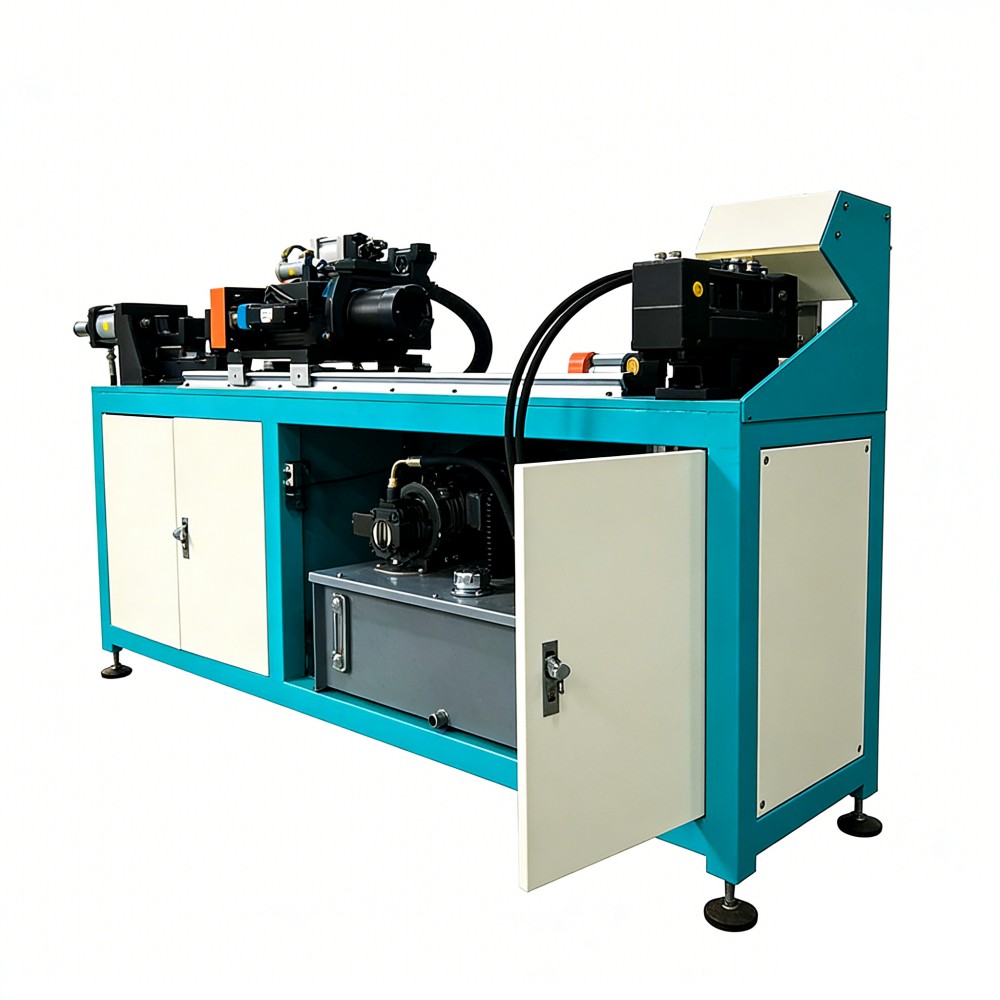

fully automatic cnc tube collaring flanging machine for copper aluminum tubes

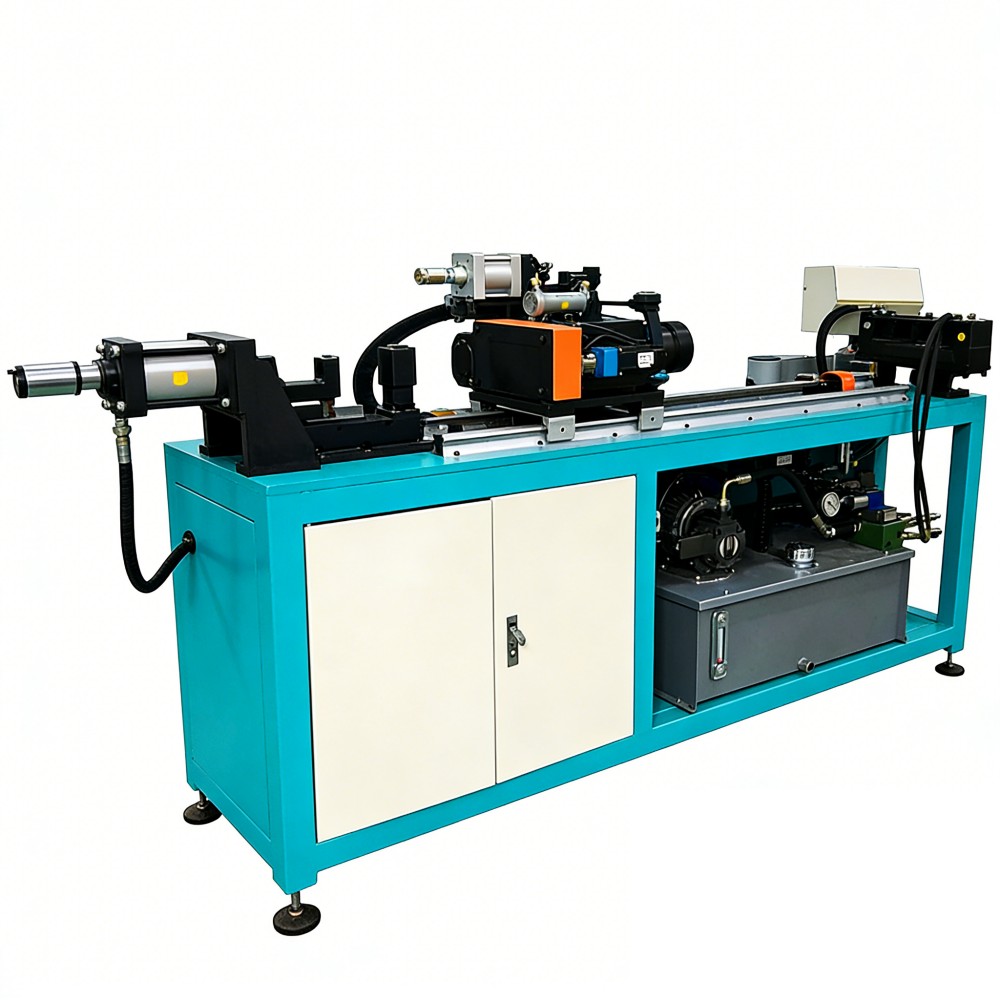

cnc pipe hole collaring and flanging machine for heat exchanger tubes

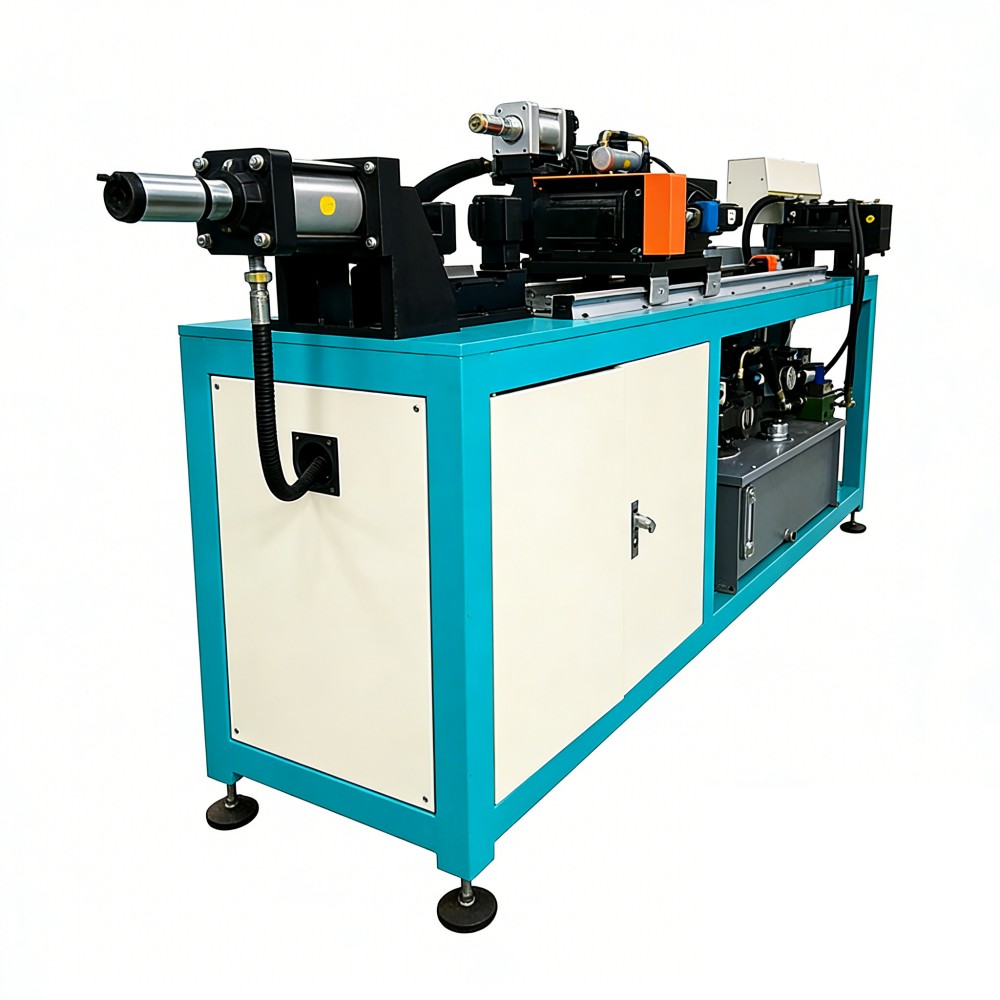

fully automatic pipe collaring flanging machine for copper and aluminum tubes

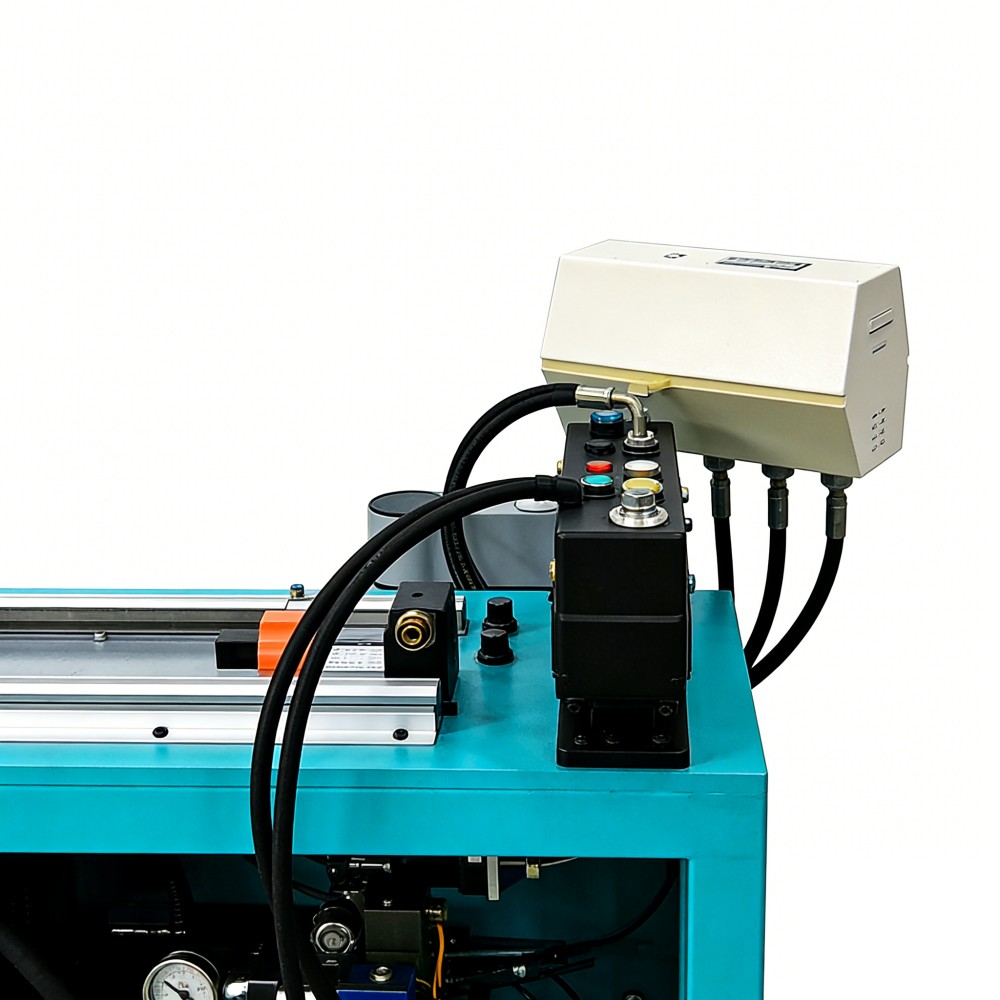

cnc tube forming machine control panel

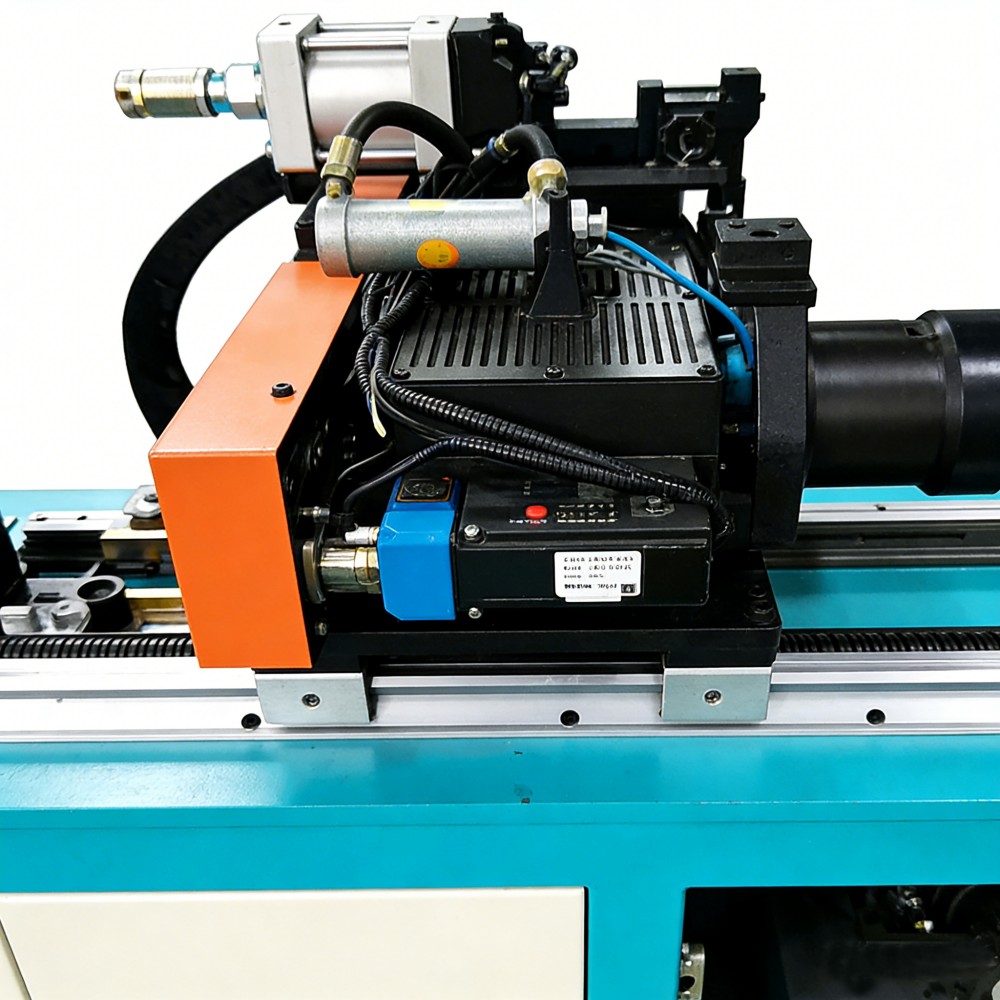

cnc tube collaring flanging machine head detail

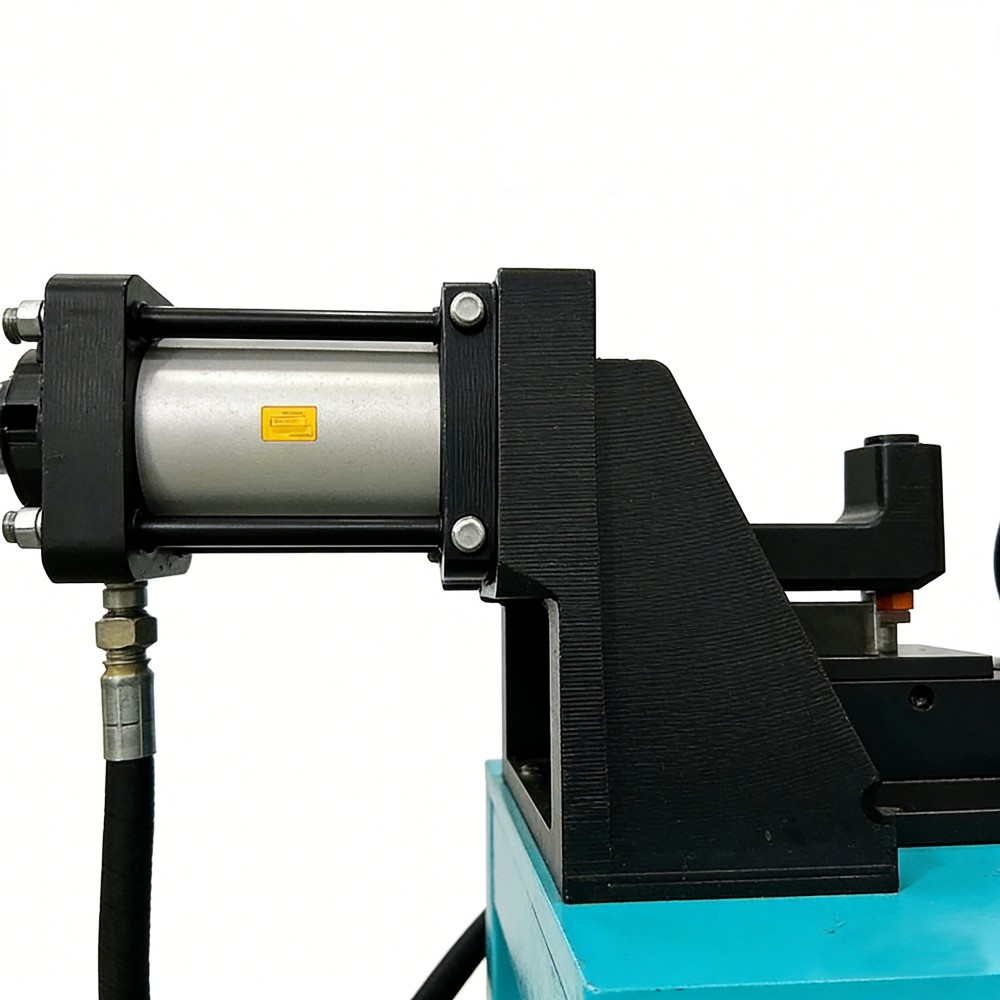

hydraulic driven tube flanging machine actuator

Application Fields

  • Air conditioning, refrigeration, and HVAC systems
  • Water heaters and solar thermal collectors
  • Industrial heat exchangers, evaporators, and condensers
  • Copper and aluminum tube processing industries

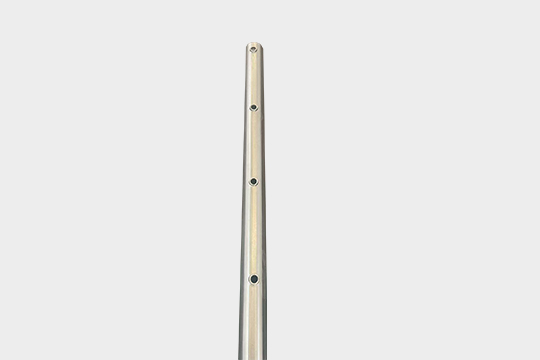

copper tube multi hole punching forming part

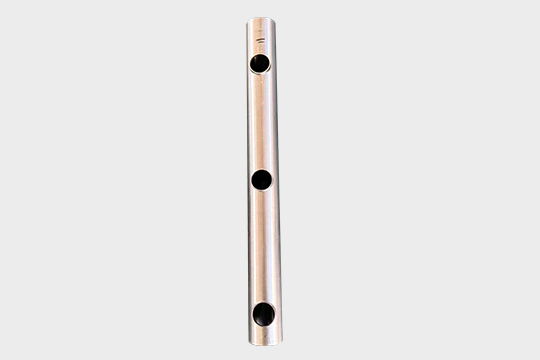

stainless steel tube side hole machined part

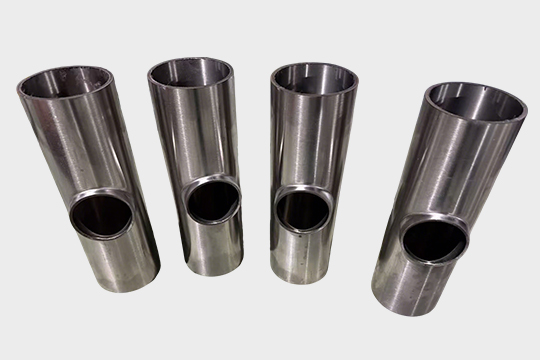

multi hole tube assembly for heat exchangers

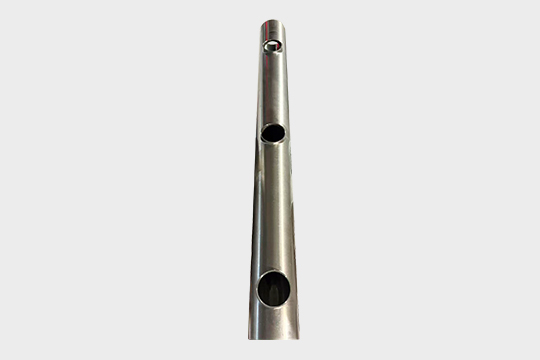

metal tube end punching forming component

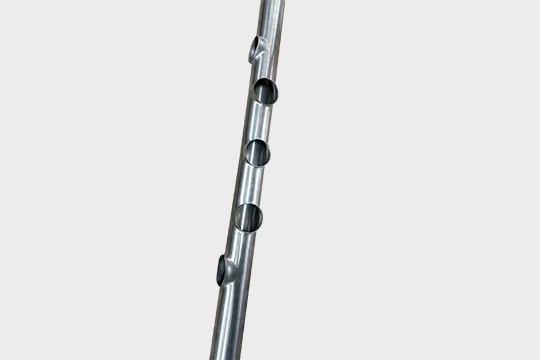

copper tube flanging hole expanding formed pipe

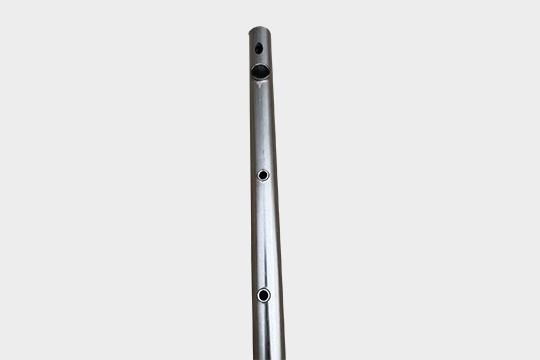

precision metal tube multi hole machined part

Vantaggi principali

Formatura di alta precisione

Accurate hole positioning with smooth, burr-free edges. Uniform collaring and flanging without deformation or cracking, improving sealing performance and joint strength.

CNC Fully Automatic Control

Controllo intelligente PLC with one-key parameter setting ensures stable and consistent production, significantly improving efficiency and product yield.

Ampia gamma di elaborazione

Supports tube diameters φ10–80 mm, wall thickness 0.8–2.5 mm, and effective length 100–1800 mm. Slide stroke up to 1600 millimetri. Quick mold change allows flexible adaptation to different specifications.

Stable & Durable Performance

Standardized core components ensure reliable operation and easy maintenance. Supports 220V/380V optional voltage for global industrial applications.

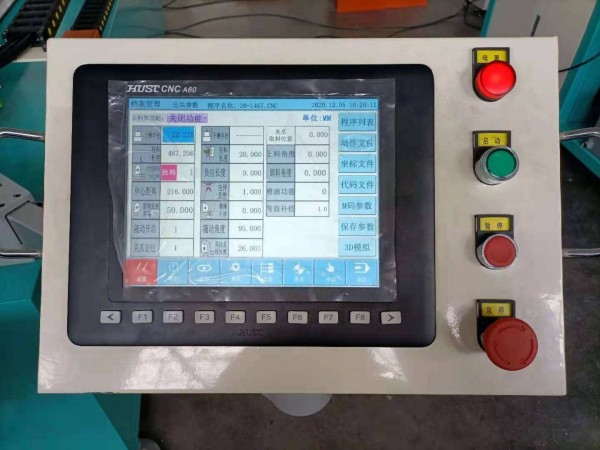

automatic tube forming machine cnc control interface

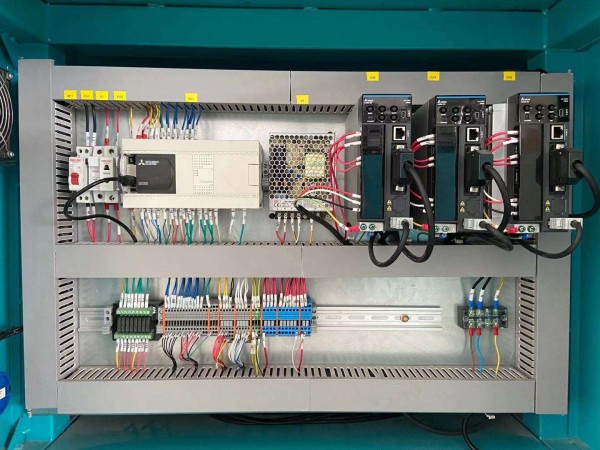

tube processing machine plc servo electrical control cabinet

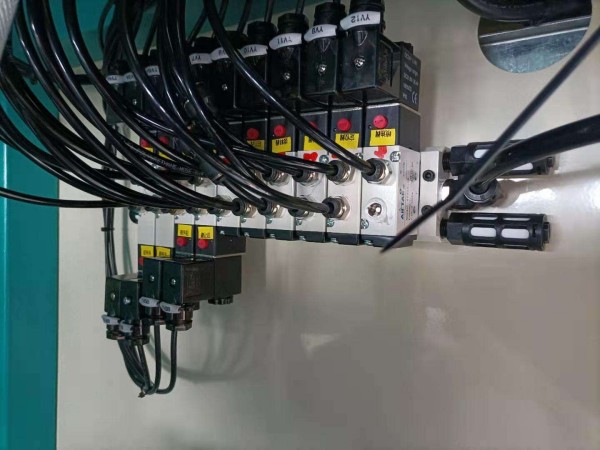

pneumatic control solenoid valve bank of machine

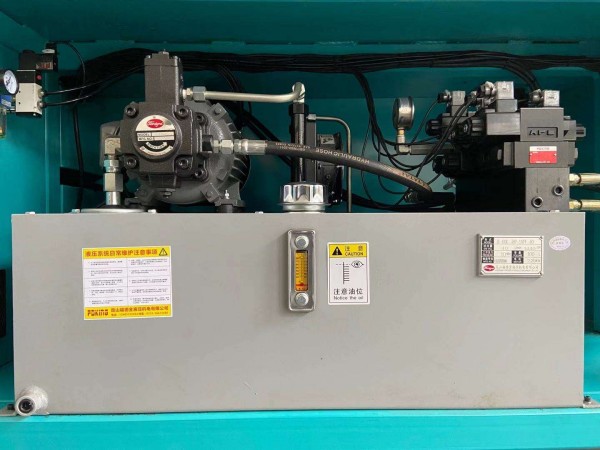

fully automatic tube flanging machine hydraulic power unit

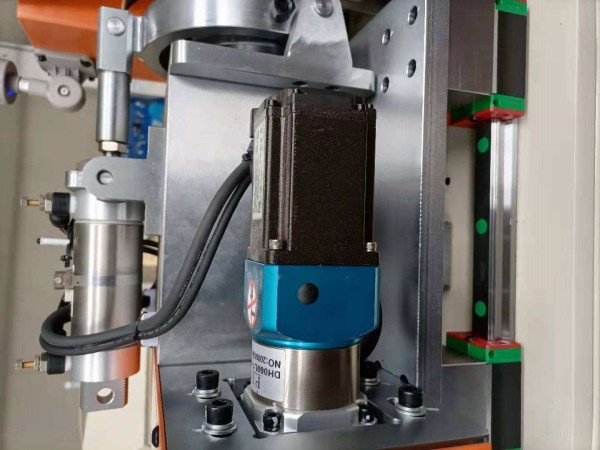

cnc tube flanging machine servo actuator detail

Quality & Service

  • High-quality bearings, motors, transmission system, and PLC control
  • Factory inspection reports and testing videos available
  • 1-year warranty on machine and key components with reliable after-sales support
Articolo Specificazione
Modello AEK MHD 90
Tipo di macchina Mechanical Punching Machine
Brand Name VEDETTE
Place of Origin Cina
Punti di forza chiave High Accuracy, Stable Performance
Settori applicabili Air Conditioning, Water Heaters, Refrigeration Equipment
Corsa diapositiva 1600 millimetri
Fonte di alimentazione Mechanical Drive System
Potenza del motore 3,7 kW
Peso 1 Ton
Voltaggio 380V / 220V Optional
Overall Dimensions (L × W × H) 3129 × 3800 × 5257 mm
Componenti principali Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine
Garanzia dei componenti principali 1 anno
General Warranty 1 anno
Rapporto di prova dei macchinari Fornito
Video Outgoing Inspection Fornito
Showroom Location Nessuno
Marketing Type Attrezzature industriali
