26" NC Industrial Horizontal Band Saw

Scie à ruban horizontale robuste et automatique NC de 26 pouces (26 pouces) img2

Scie à ruban horizontale robuste et automatique NC de 26 pouces (26 pouces) img4

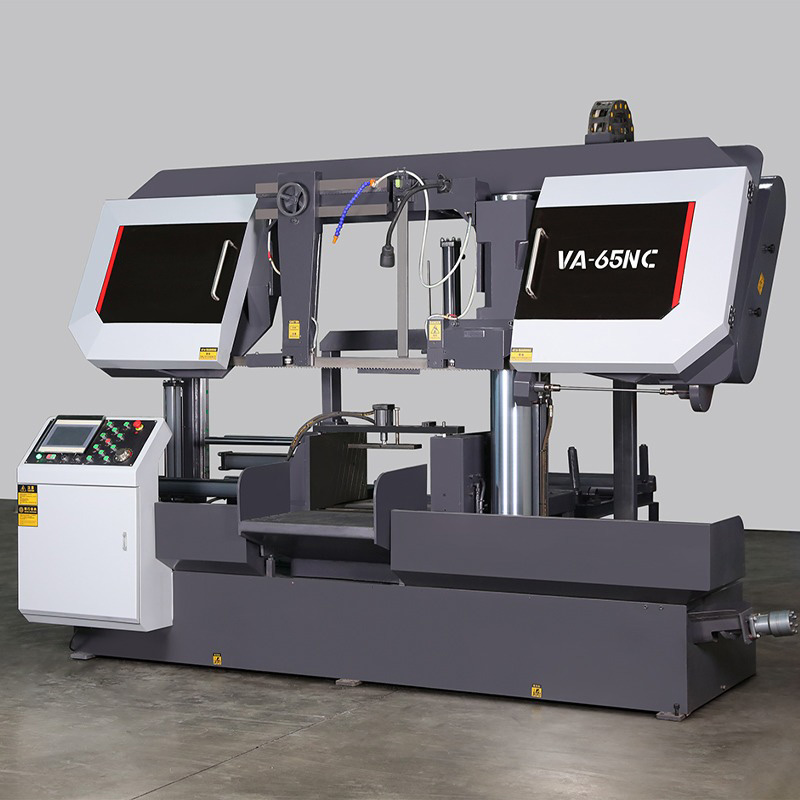

26 inch nc automatic heavy duty horizontal band saw img3

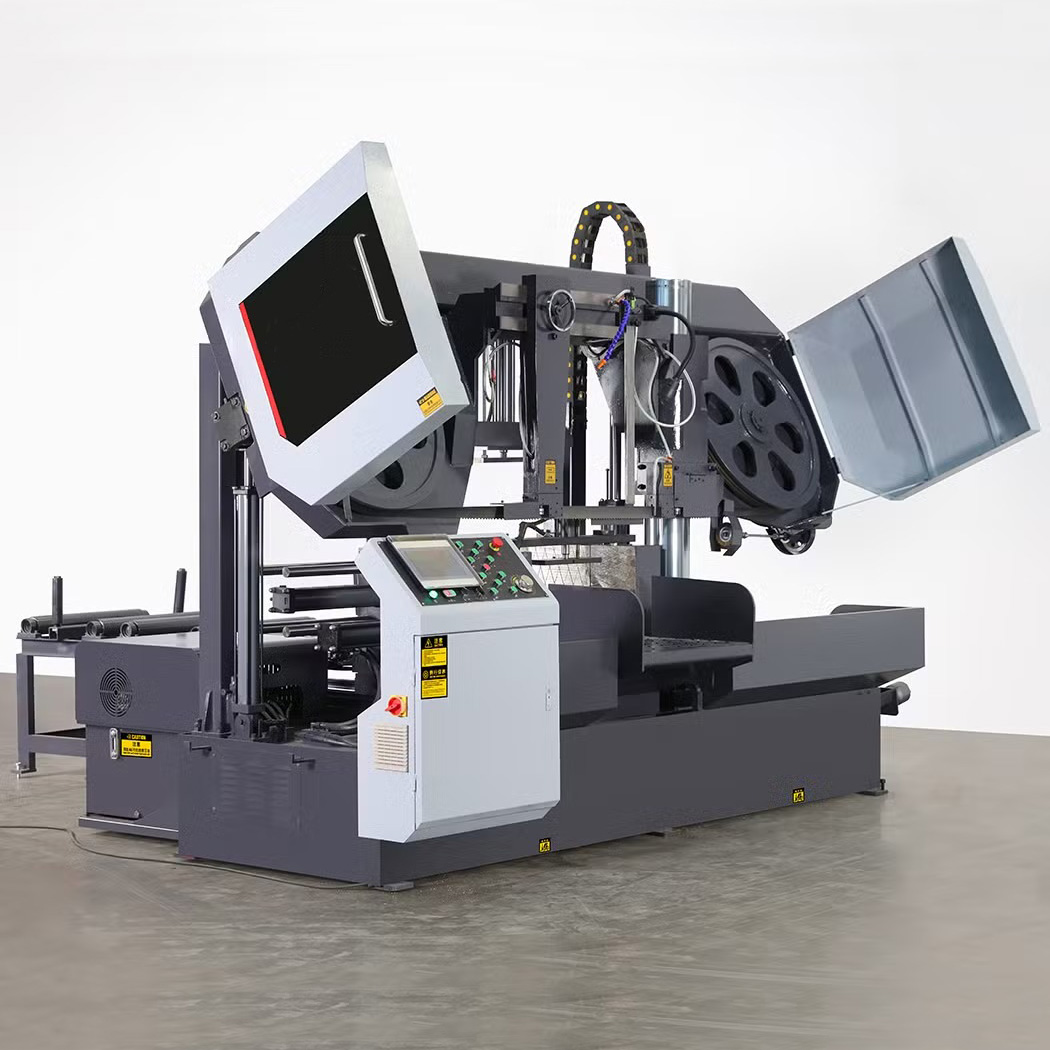

26 inch nc automatic heavy duty horizontal band saw img1

Numéro de modèle : AEK-VA-65NC Series

~~$9200.00~~$9000.00

(Prix de référence)

Le AEK-VA-65NC is a high-performance fully automatic metal cutting machine, specifically designed to meet the demanding requirements of industrial-scale cutting of large-size ferrous and non-ferrous materials with high precision. It features a cutting range of 26 × 26 inches et un variable blade speed of 18–60 m/min, enabling efficient cutting of a wide range of workpieces.

Equipped with an système de double commande automatique/manuel, operators can easily switch between automatic and manual modes for flexible operation. Its worm gear drive system ensures stable power transmission and long-term durability for continuous operation.

Envoyer une demande maintenant

Description
Caractéristiques

26 nc automatic heavy duty horizontal band saw for metal cutting

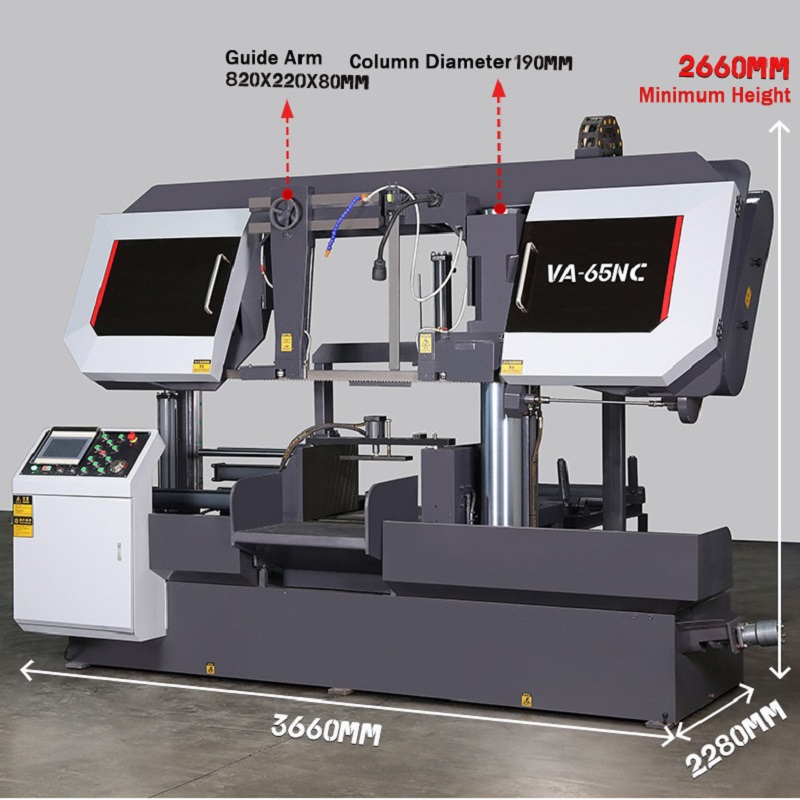

26 horizontal hydraulic metal band saw dimensions

26 cnc heavy duty industrial horizontal bandsaw for steel alloys

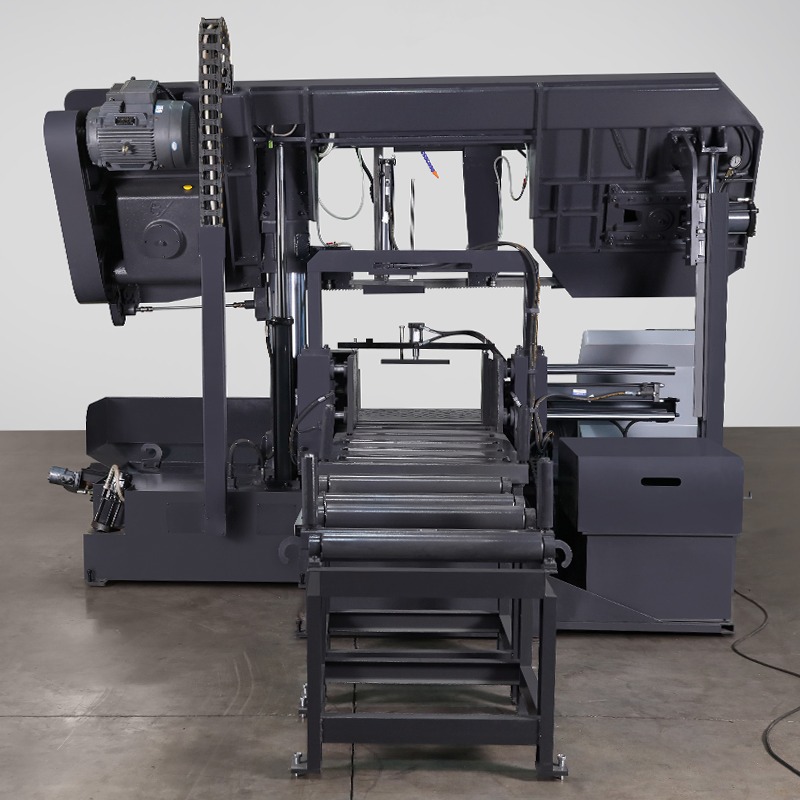

26 horizontal hydraulic metal band saw back structure

Caractéristiques principales

Open-Bottom Discharge Table– Allows coolant to flow back in time, preventing splashing and keeping the work area clean.
Built-in Roller Feeding Table– Ensures smooth and stable material feeding.
Bridge-Type Feeding Design– Reduces friction and improves stability during material transfer.
Système de double contrôle automatique/manuel– Flexible operation to suit different user preferences and cutting requirements.
Hydraulic Blade Clamping with Pressure Gauge– Provides precise control of blade tension, preventing breakage.
High-Load Three-Phase Copper Motor (7.5 kW, 6-Pole)– Heavy-duty performance with reliable overload and overheating protection.
Full-Stroke Hydraulic Cylinder with Adjustable Pressure– Ensures smooth operation and adaptable cutting force.
Widened Vise with Four-Axis Guided Movement– Enhances clamping stability and minimizes vibration during cutting.

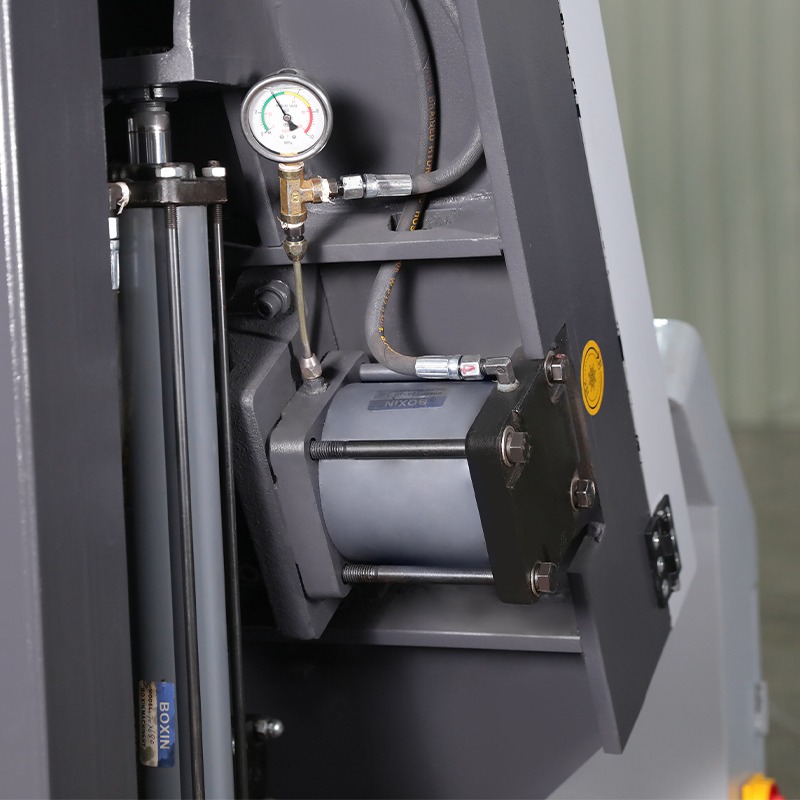

hydraulic blade clamping with pressure gauge 26 horizontal metal band saw aek va 65nc

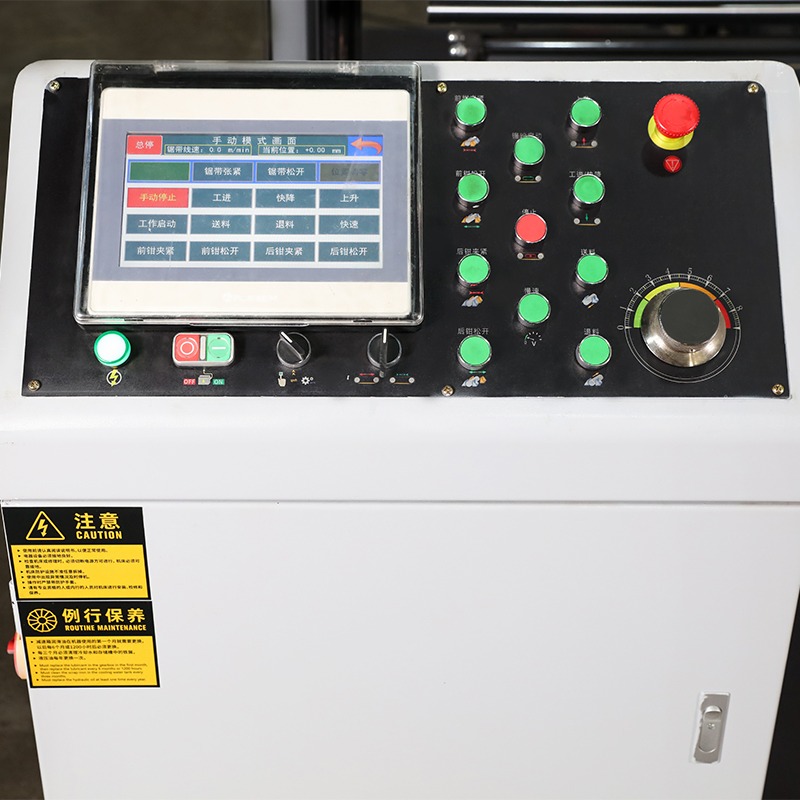

automaticmanual dual control system 26 horizontal metal band saw aek va 65nc

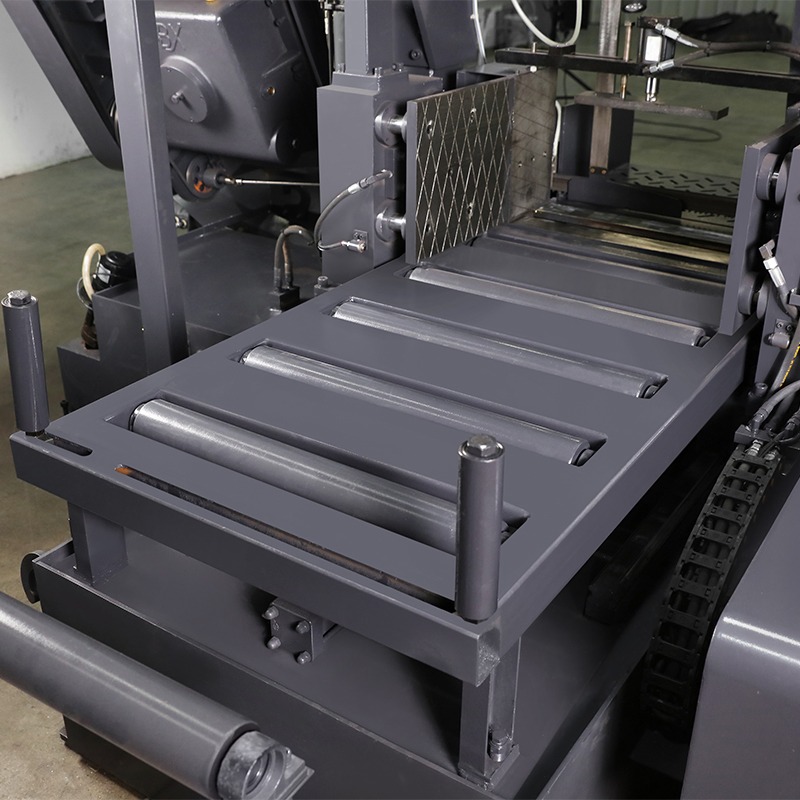

built in roller feeding table 26 horizontal metal band saw aek va 65nc

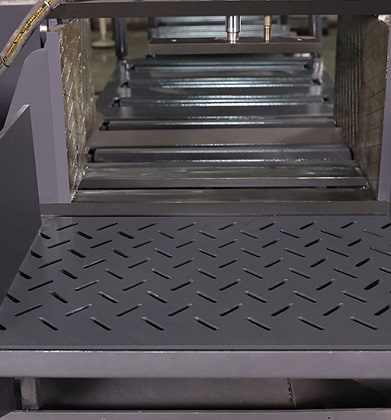

open bottom discharge table 26 horizontal metal band saw aek va 65nc

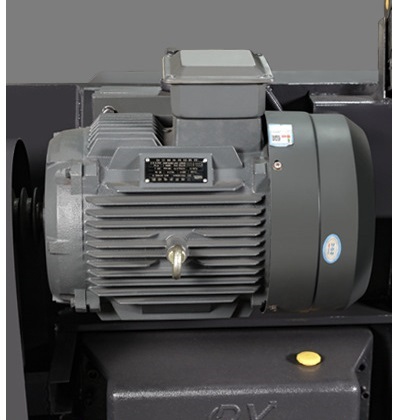

three phase pure copper 6 pole high load motor 26 horizontal metal band saw aek va 65nc

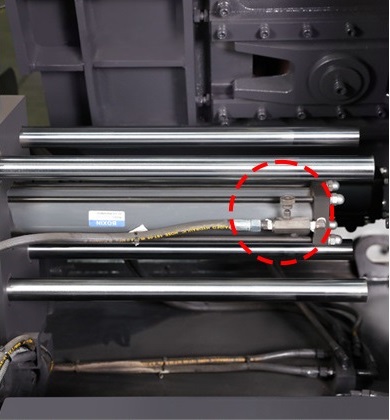

full stroke hydraulic cylinder with adjustable pressure 26 horizontal metal band saw aek va 65nc

Applications typiques

fabrication mécanique– Shafts, pipes, plates, and large billets.
Industrie des structures en acier– H-beams, square tubes, angle steels, and structural profiles.
Industrie automobile– Engine blocks, chassis parts, and large precision components.
Machines de construction– Frames, heavy-duty steel parts, and fabricated assemblies.

Paramètre	AEK-VA-65NC
Plage de coupe (mm)	650 × 650
Vitesse de la lame (m/min)	18–60 (fréquence variable)
Taille de la lame de scie (mm)	54 × 1,6 × 6530
Moteur principal (kW)	7,5 kW
Moteur hydraulique (kW)	2.5 kW
Forme de tension de la lame	Hydraulique
Pince-étau	Hydraulique
Moteur de refroidissement (kW)	0,09 kW
Course d'alimentation (mm)	–
Dimensions de la machine (cm)	310 × 300 × 240
Poids de la machine (kg)	5250
Machine Size(LWH)(mm)	3660x2280x2660
Drive	Worm Gear Drive
