Model Number: AEK FBM Series

$2300.00$2100.00
(Reference Price)

The Flanging Pre-Bending Curling Machine Series is designed for edge forming of metal cylindrical and container-type workpieces. It integrates pre-bending, flanging, curling, trimming, and related edge forming processes in one setup.

Suitable for stainless steel, carbon steel, and aluminum sheets, the pre-bending process minimizes edge deformation during forming and enables multi-step processing in a single clamping cycle.

Technical Specifications

  • Product diameter range: 90–3000 mm (model-dependent)
  • Processing height range: 80–1500 mm
  • Material thickness (iron): up to 4 mm
  • Material thickness (stainless steel): up to 3 mm
Send Inquiry Now

Industrial Large Metal Cylinder Flanging Machine

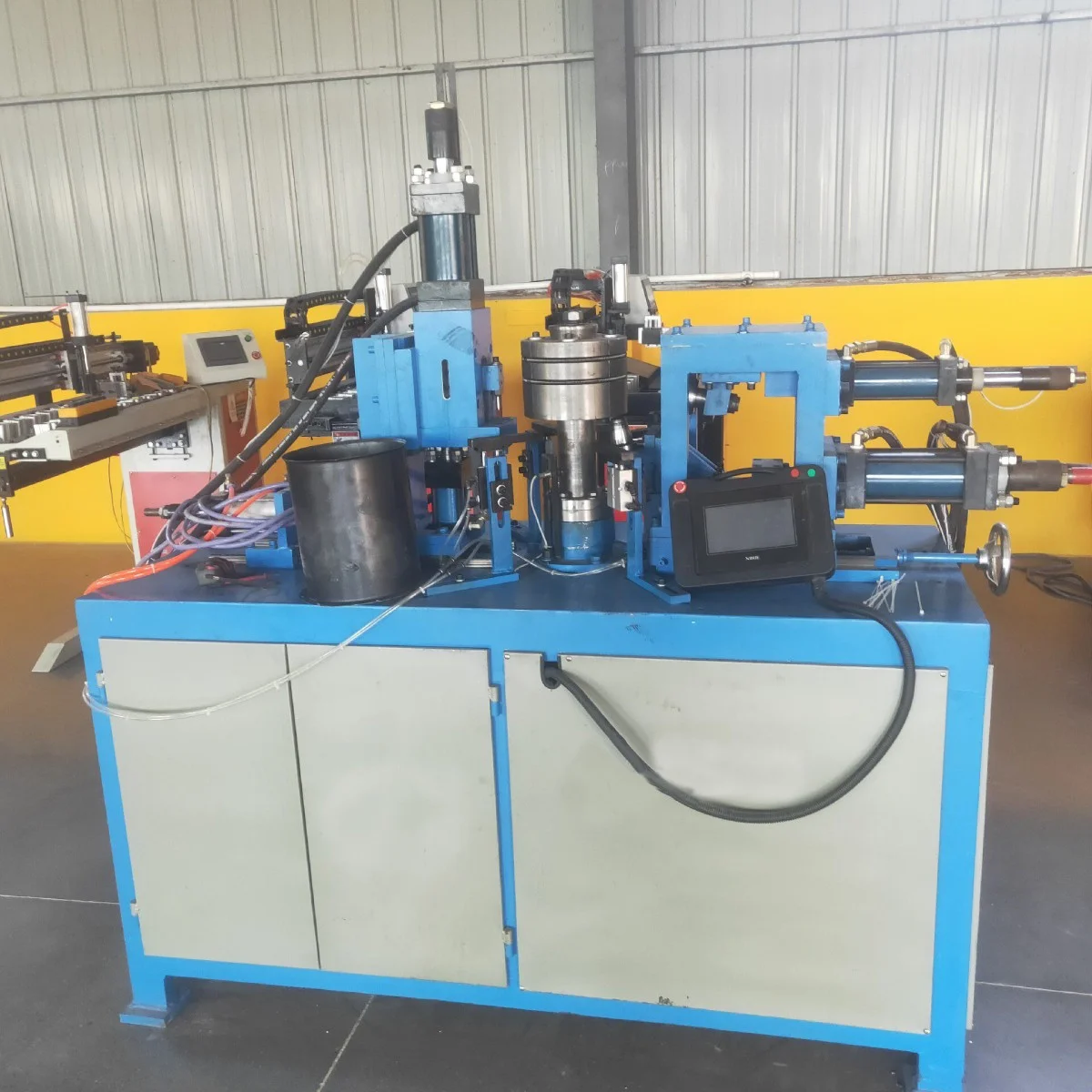

hydraulic edge forming machine for flanging curling

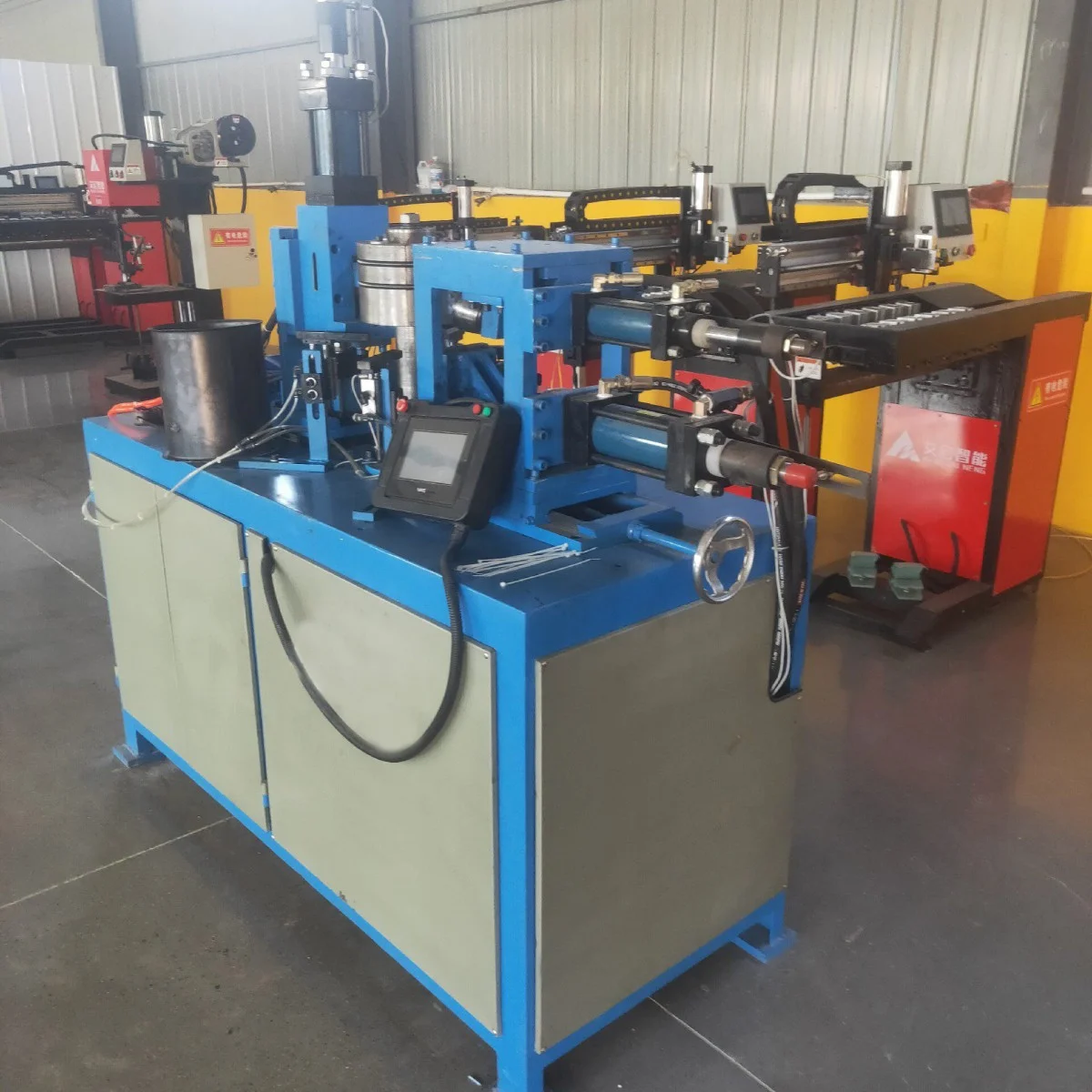

flanging curling pre bending edge forming machine
large diameter metal flanging curling machine

Process Features

  • Multiple forming processes are completed in a single clamping cycle
  • Pre-bending structure reduces edge wrinkling and cracking
  • Suitable for thin and medium-thickness metal sheets
  • Stable forming quality for cylindrical and oval workpieces
  • Hydraulic or pneumatic drive system for stable operation

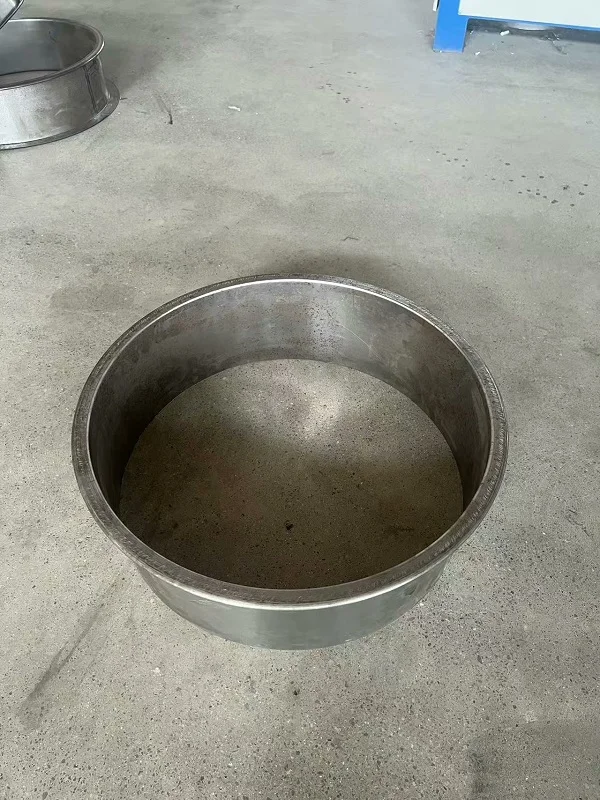

large size metal cylinder flanged mouth finished product

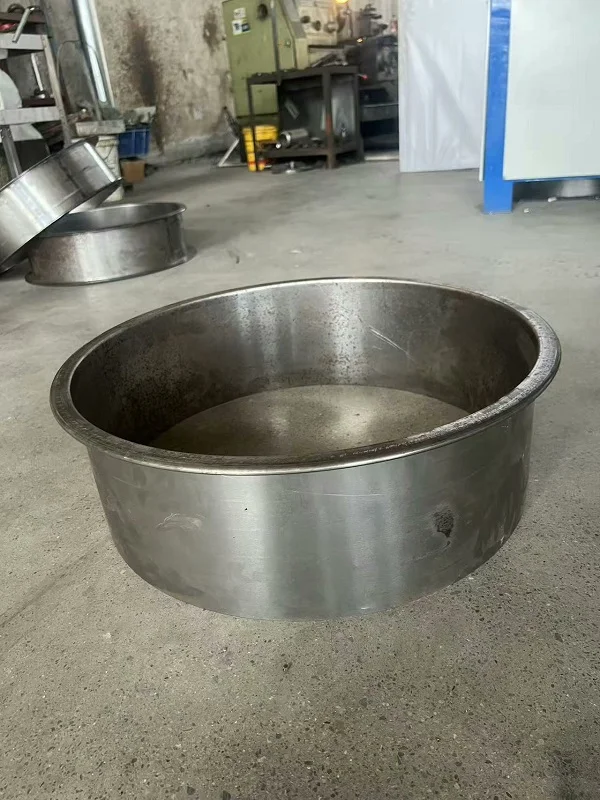

large diameter metal container flanged edge workpiece

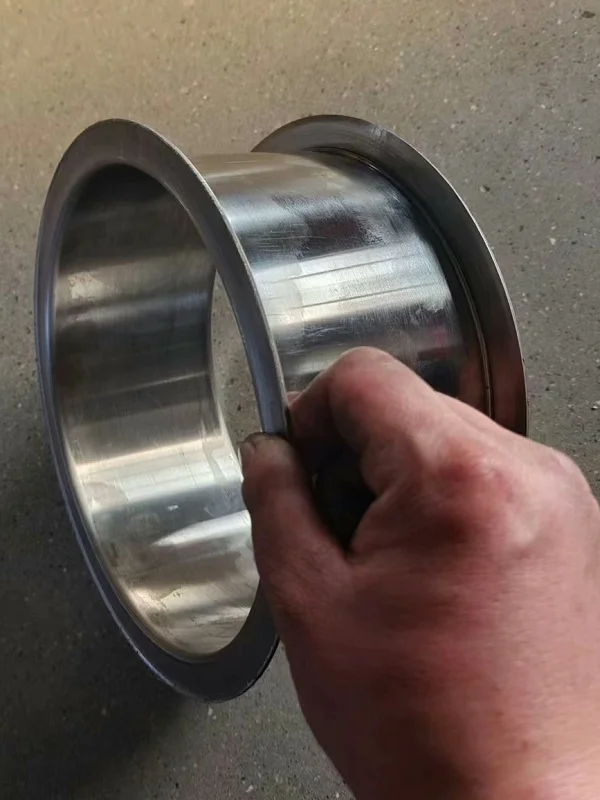

handheld metal cylinder double flanged ring component

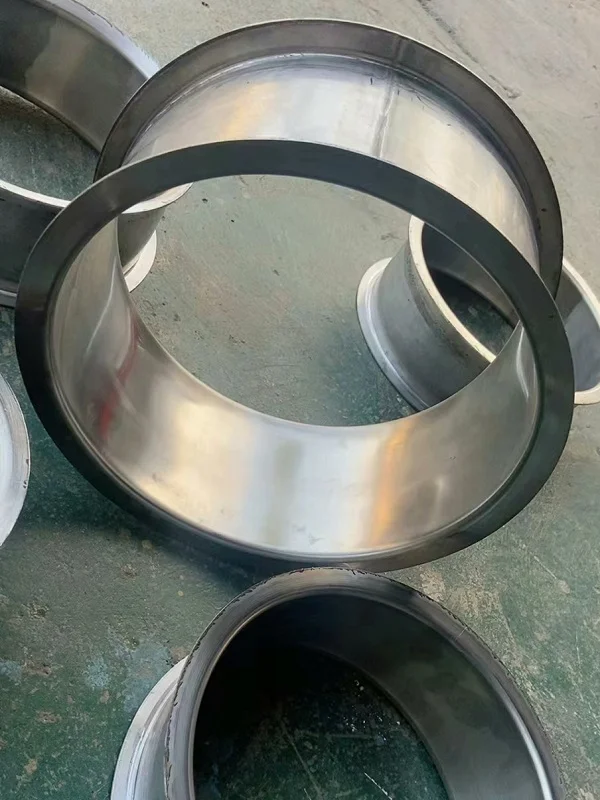

finished metal cylinder flanged parts stainless steelcarbon steel

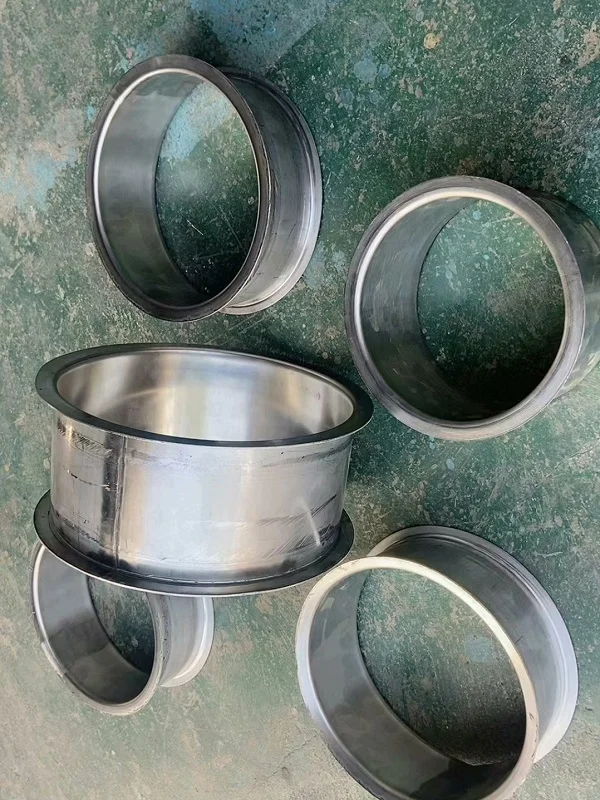

batch of metal cylinder flanged and curled finished parts
turn straight edge
Turn straight edge
turn round edge
Turn round edge
turn the hem mouth
Turn the hem mouth
straighten the edge or roll the edge after the hem
Straighten the edge or roll the edge after the hem
edge trimming after flanging hem
Edge trimming after flanging hem
beading
beading
bore
Bore
flip the horizontal and vertical edges
Flip the horizontal and vertical edges
flip the edges inward straight
Flip the edges inward straight
fold the edges straight and fold them upwards
Fold the edges straight and fold them upwards
after straightening the edge press the s edge
After straightening the edge, press the S edge
conical upper and lower mouth flanging
Conical upper and lower mouth flanging

Main Functions (Expandable Configuration)

Built on a tension-rotation forming system, the machine supports configurable edge forming functions:

  • Flanging (straight edge / inward flanging)
  • Round edge flanging
  • Flared edge forming
  • Flanging followed by curling
  • Trimming and edge finishing
  • Beading/rib forming
  • Punching
  • Horizontal and vertical edge forming
  • S-shaped edge forming
  • Conical top and bottom edge flanging
flanging pre bending curling machine forming large metal disc workpiece

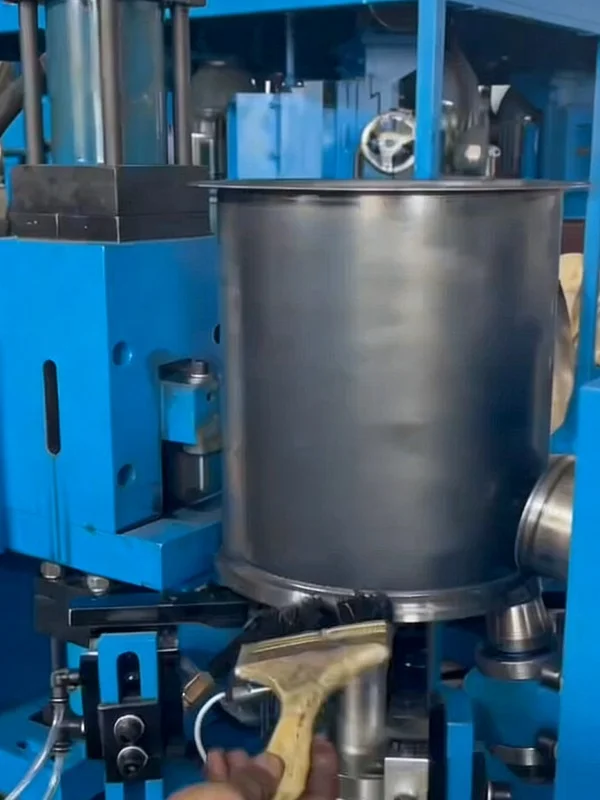

flanging pre bending curling machine processing cylindrical metal workpiece

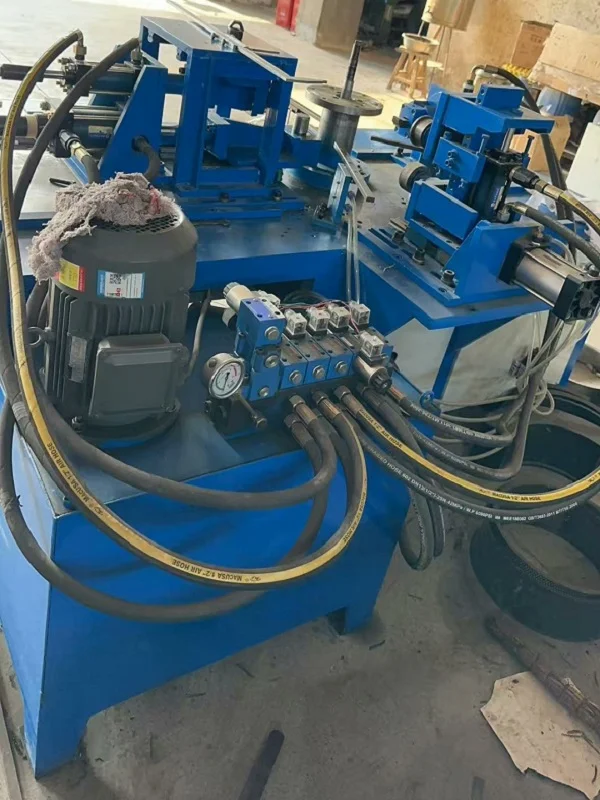

hydraulic system of flanging pre bending curling machine power drive unit

Application Range

  • Metal containers (barrels, tanks, and housings)
  • Lighting components (lamp housings and reflectors)
  • Ventilation systems (ducts and fan casings)
  • Automotive components (mufflers and exhaust parts)
  • General metal cylindrical and structural parts
Model Product Diameter (mm) Processing Height (mm) Iron Thickness (mm) Stainless Steel Thickness (mm) Machine Size (L×W×H, mm) Weight (kg)
AEK FBM 650 90–650 80–1500 2.5 2 1500 × 800 × 1400 600
AEK FBM 800 150–800 150–1500 2.5 2 1700 × 800 × 1400 800
AEK FBM 1000-A (Thin Material) 250–1000 150–1500 3 2.5 1800 × 1000 × 1400 1000
AEK FBM 1000-B (Thick Material) 300–1000 150–1500 4 3 1900 × 1000 × 1400 1100
AEK FBM 1300-A (Thin Material) 250–1300 150–1500 3 2.5 2100 × 1200 × 1500 1500
AEK FBM 1300-B (Thick Material) 350–1300 150–1500 4 3 2100 × 1200 × 1500 2500
AEK FBM 1600-B (Thick Material) 400–1600 150–1500 4 3 2400 × 1600 × 1800 3000
AEK FBM 2000-B (Thick Material) 600–2000 150–1500 4 3 2400 × 2000 × 1800 5000
AEK FBM 3000-B (Thick Material) 800–3000 150–1500 4 3 4000 × 3500 × 2400 10000
