CNC Vertical Tube End Closing Machine with RF Heating

cnc vertical tube end closing machine with rf heating img1
cnc vertical tube end closing machine with rf heating img4

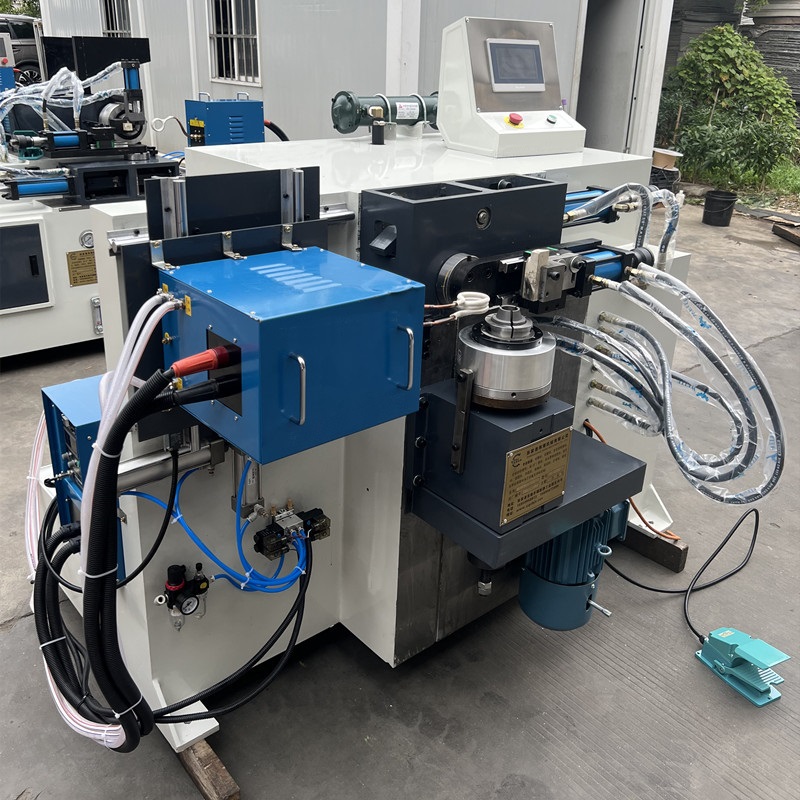

cnc vertical tube end closing machine with rf heating img3
cnc vertical tube end closing machine with rf heating img2
cnc vertical tube end closing machine with rf heating img1
cnc vertical tube end closing machine with rf heating img4
cnc vertical tube end closing machine with rf heating img3
cnc vertical tube end closing machine with rf heating img2

Model Number: AEK-TCM NC40 Series

$2300.00$2200.00
(Reference Price)

The Vertical Tube End Closing Machine is a vertically arranged tube processing equipment designed for precise closing, shrinking, sealing, and end forming of metal and plastic tubes.

Key Functions:

  • Tube End Shrinking / Reducing: Reduces the tube end diameter to a specified size, forming tapered, stepped, or other profiles suitable for downstream assembly, such as pipe fittings or valve cores.
  • End Sealing: Completely seals the tube end via extrusion, spinning, or heat bonding to achieve leak-proof and dust-proof results.
  • Custom End Forming: Produces special end shapes like round, flat, or flanged ends according to product requirements.
Send Inquiry Now

 Vertical Tube End Closing Machine Photos

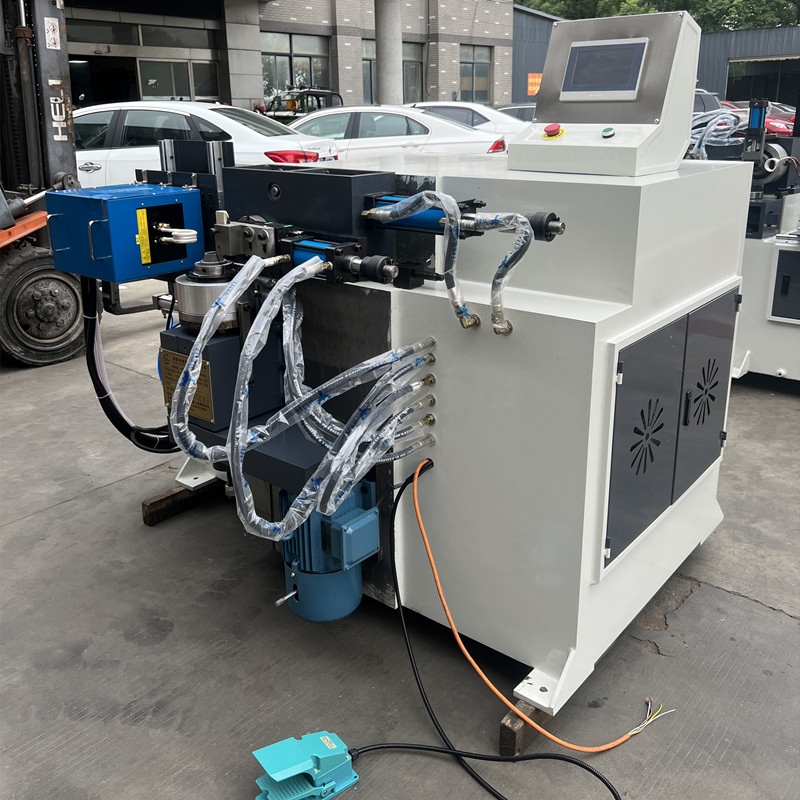

cnc vertical tube end closing machine with high precision forming
vertical tube end closing machine for stainless steel

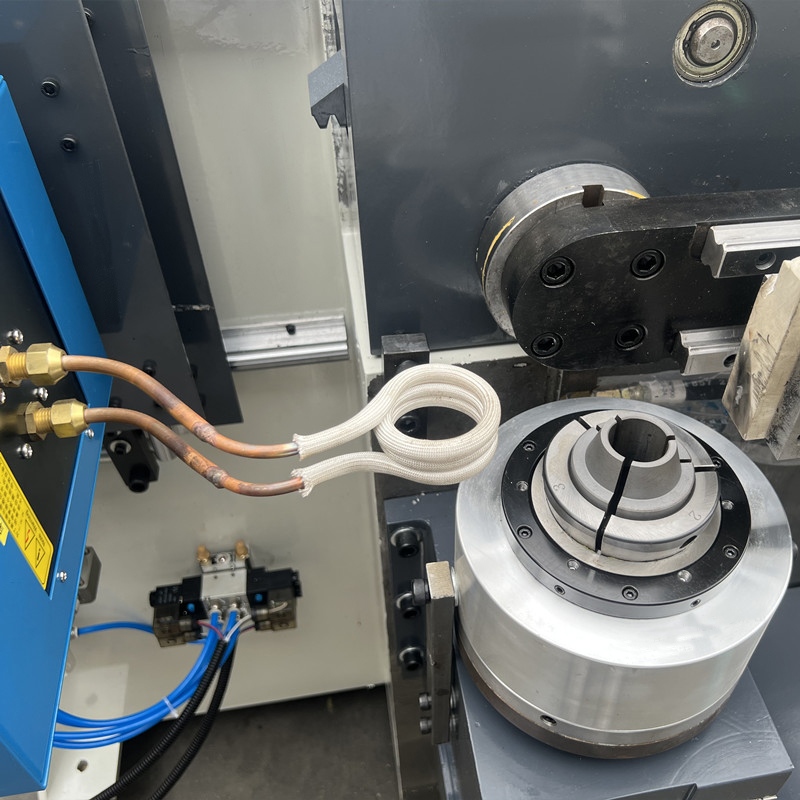

rf heating coil for vertical tube end closing machine

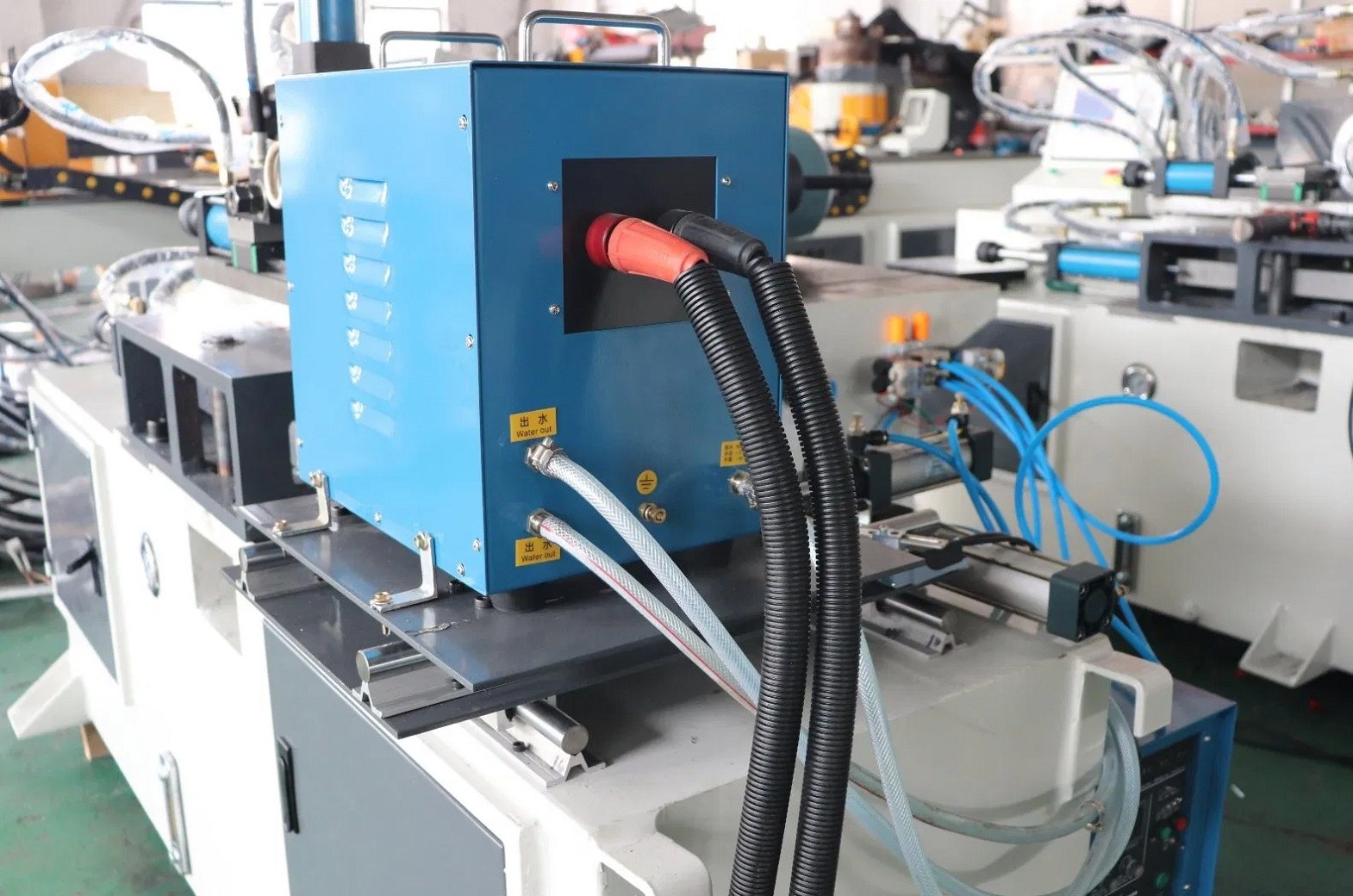

cnc vertical tube end shrinking and sealing machine
hydraulic cylinder drive unit

Features

  • Compact Vertical Layout: Vertical design saves floor space, allowing dense production line arrangements or integration with multiple machines.
  • Precise and Stable Positioning: Tubes are vertically placed, using gravity-assisted alignment combined with hydraulic or servo clamping for end-forming accuracy of ±0.1–0.3 mm.
  • Uniform Forming Quality: Vertical pressing ensures symmetrical force distribution, preventing eccentricity or deformation, especially for thin-walled tubes.
  • High Automation Compatibility: Seamlessly integrates with vibration bowl feeders, robotic arms, hoppers, and other automatic loading/unloading systems for fully unmanned production.
  • Wide Material Compatibility: Primarily designed for metal tubes (copper, aluminum, stainless steel, steel) and, in some models, compatible with rigid plastic tubes.

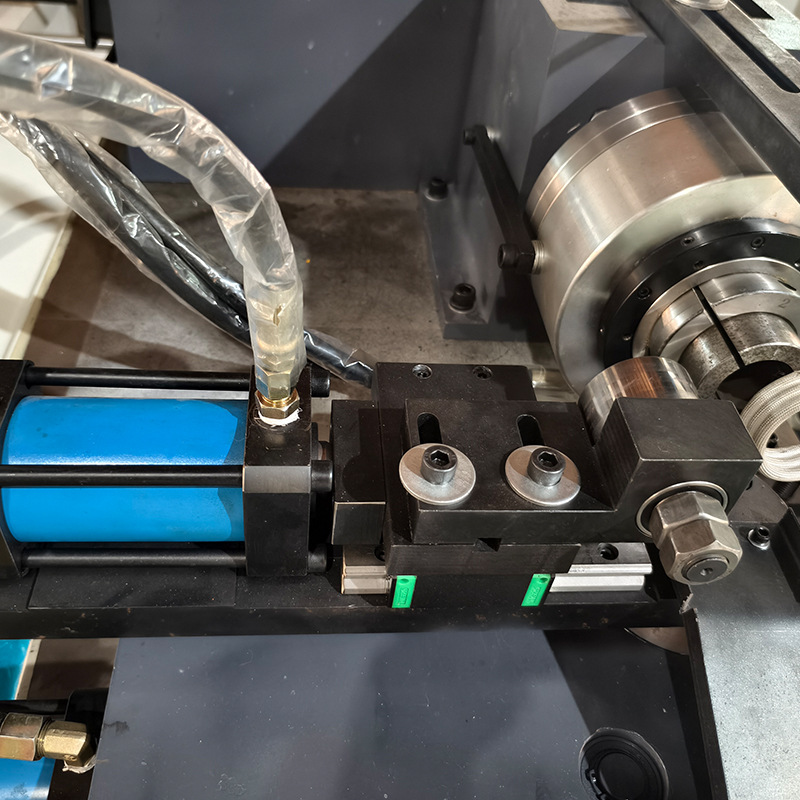

automatic lubrication system for die and roller

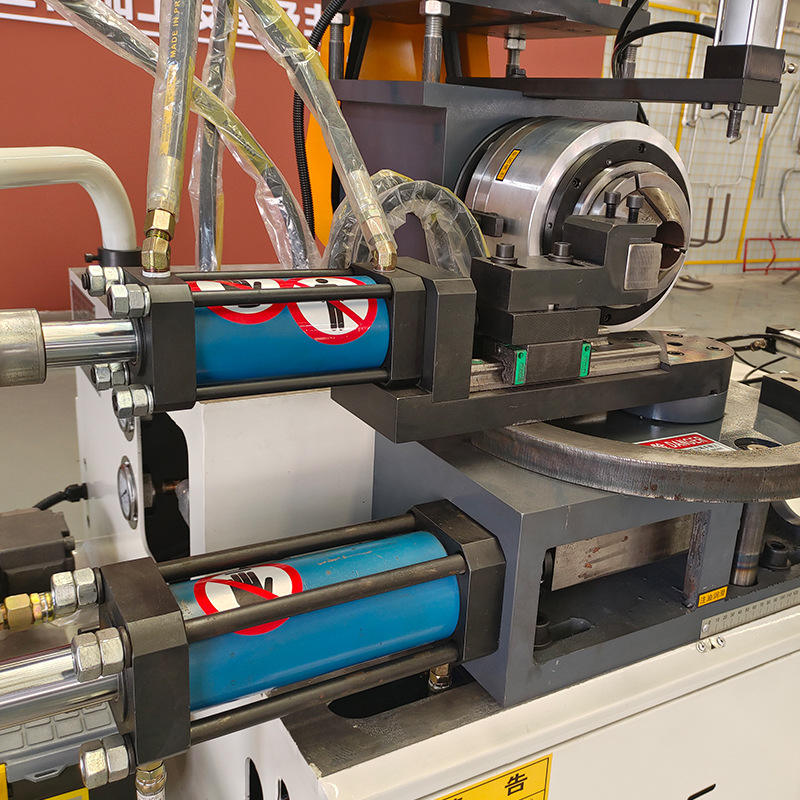

die installation and tool change area

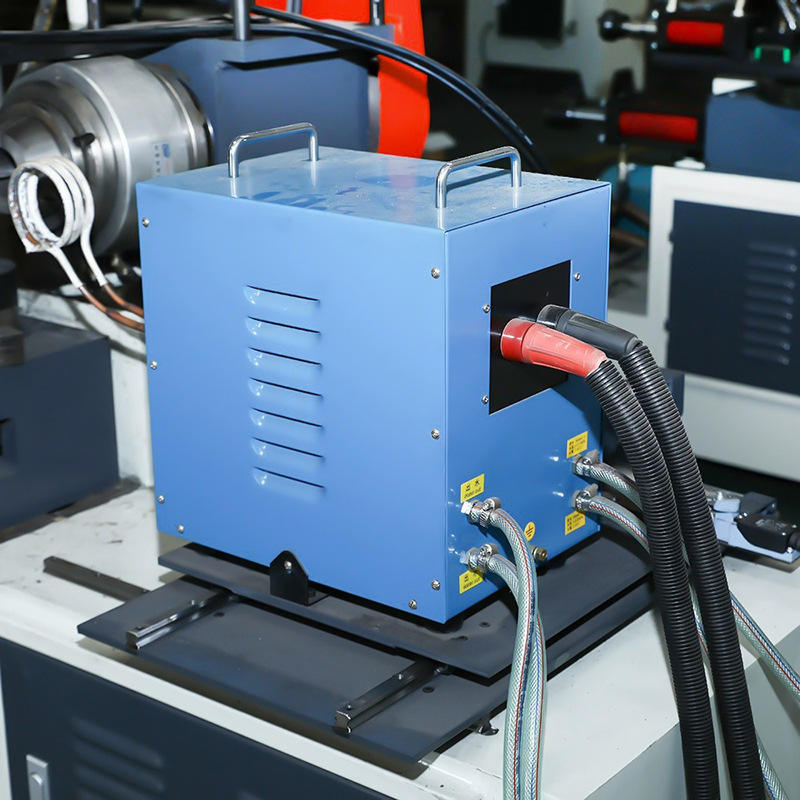

hf generator rf power supply

Applications

  • Automotive Components: Fuel lines, brake tube end closing
  • Furniture Tubes: Table legs, chair frames end sealing
  • Hardware Accessories: Hydraulic fittings, gas springs tube end forming
  • Household Appliances: Air conditioning copper tubes, hot water inlet/outlet

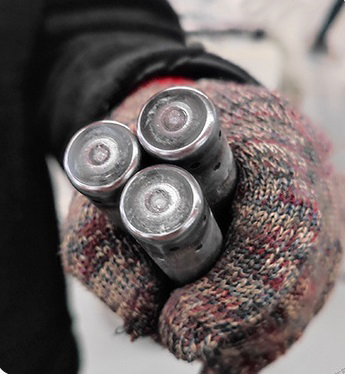

round tube end with rf heated forming sample 1
flat end tube sample carbon steel round tube
tube end sample round stainless steel tube

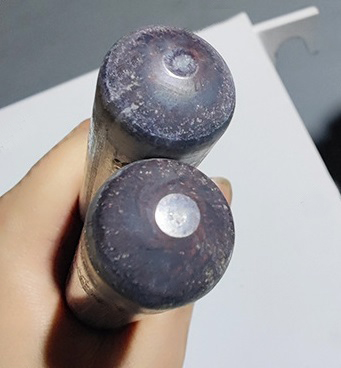

round tube end with rf heated forming sample 2
Model AEK-TCM NC40
Processing capacity 40x3mm
Hydraulic motor power 4 kw
Rotating motor power 3kw
Ultrasonic high frequency machine 15kw
Maximum applicable pipe ￠40 x 2.5mm
Maximum pipe length 1.5m
Hydraulic pressure 12MPa
Size 2100 x 1300 x 1350 mm
Package size 2020x1400x1600mm
Weight 900kg
