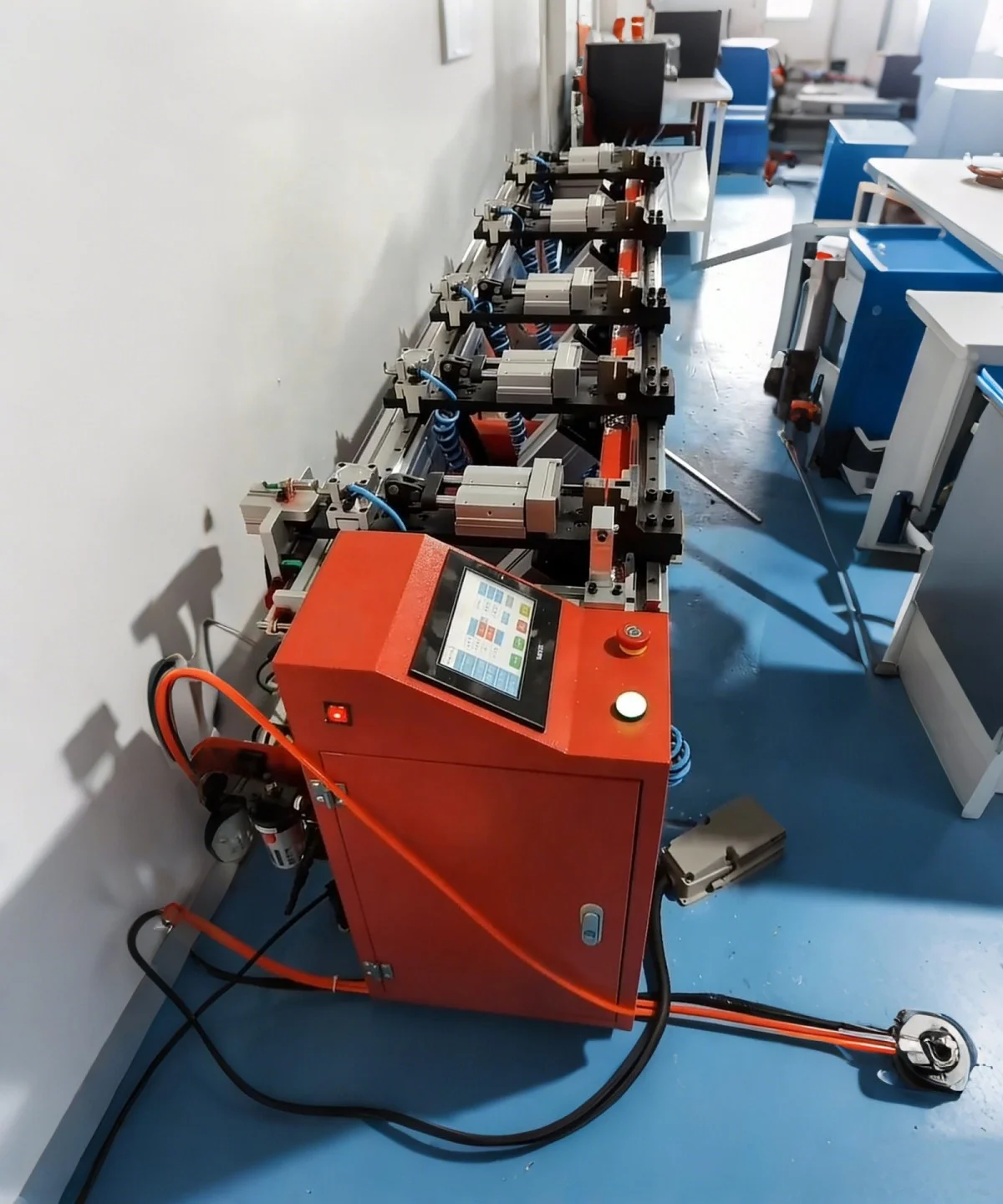

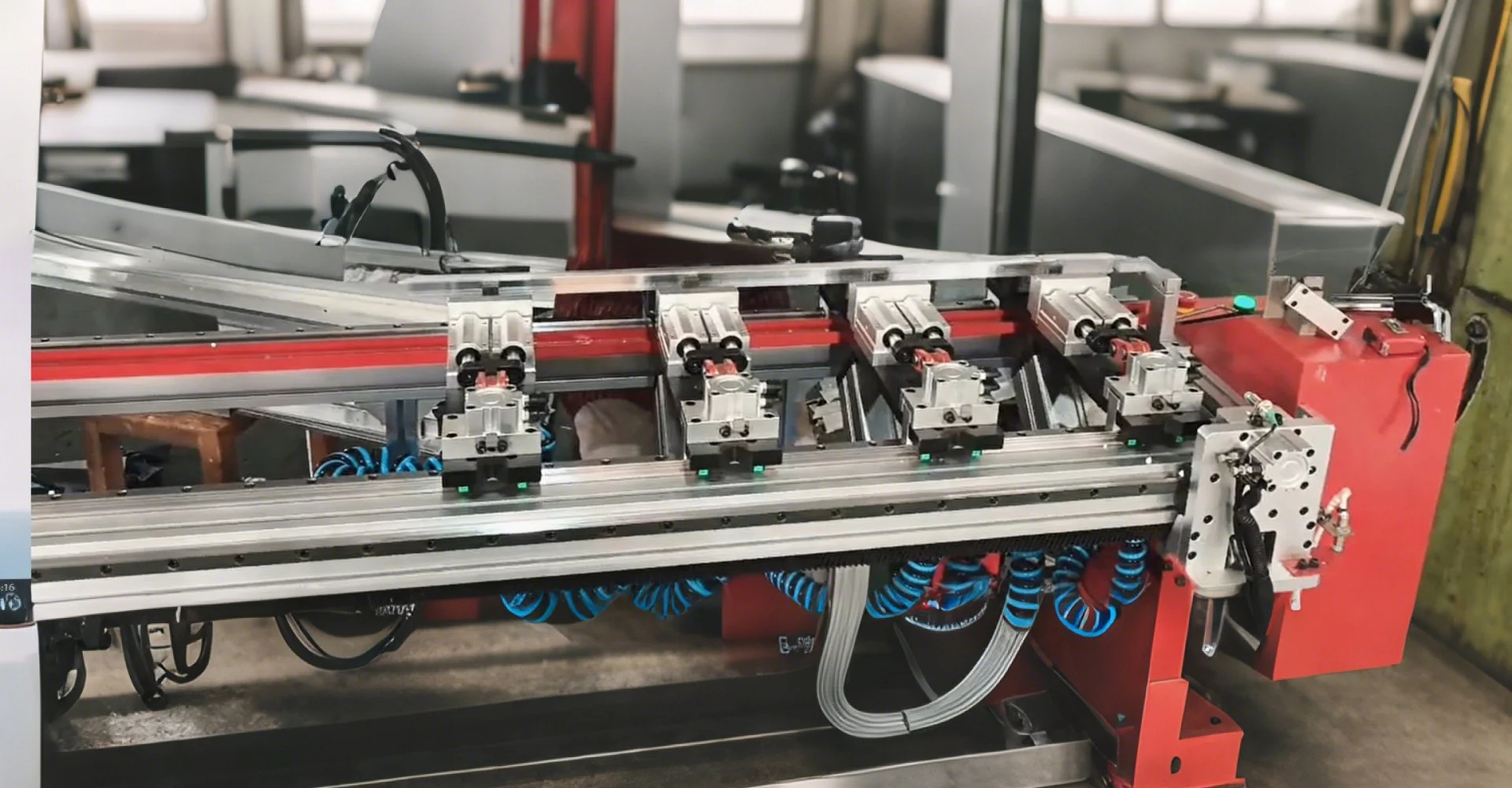

CNC Multi-hole Positioning Punching Machine for Profiles

Equipped with a CNC positioning system, the machine automatically calculates hole spacing and precisely positions each punching unit based on input parameters, including material length, number of holes, and edge distance. This eliminates the need for manual marking and repeated adjustments, ensuring fast setup and consistent accuracy.

Applications

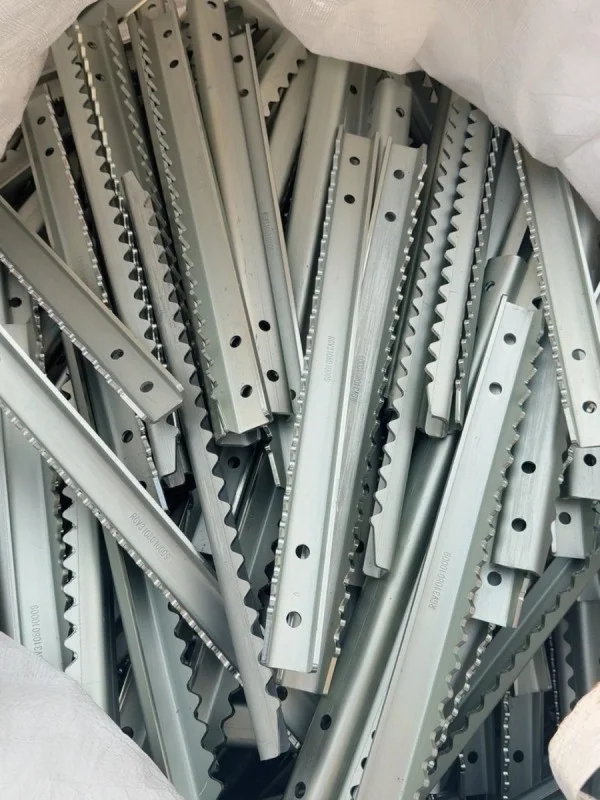

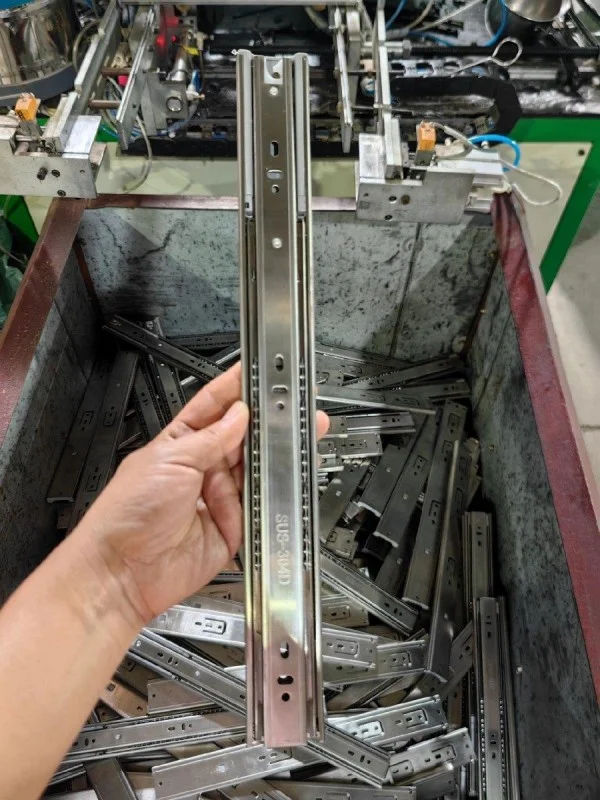

Processing Products

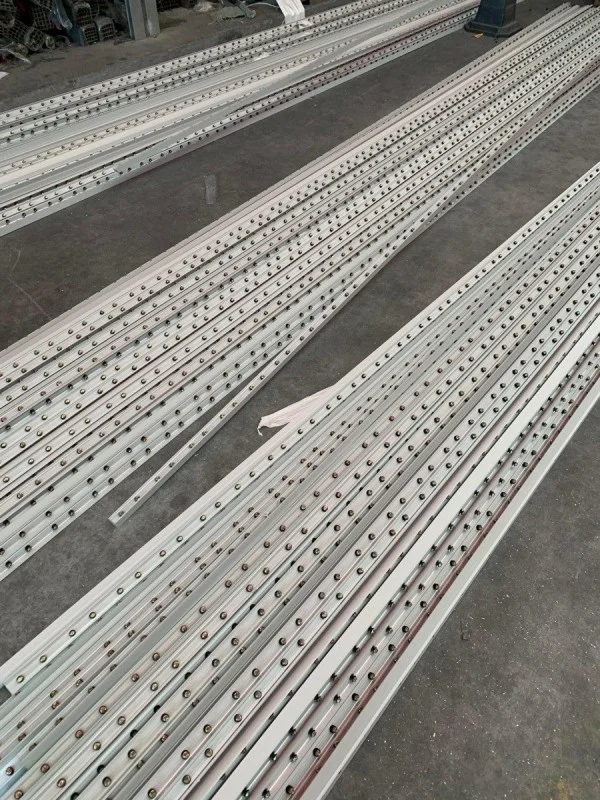

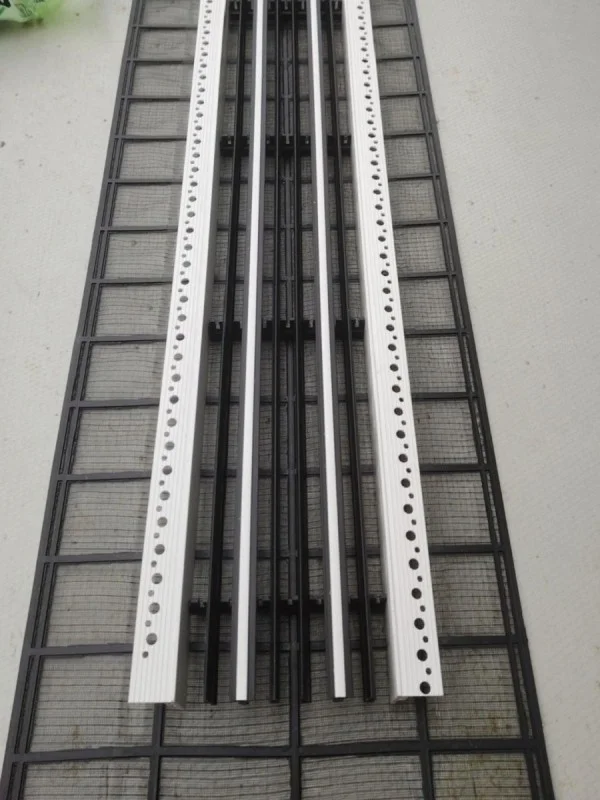

• HVAC air vent outer frames and inner frames
• Window and door profiles

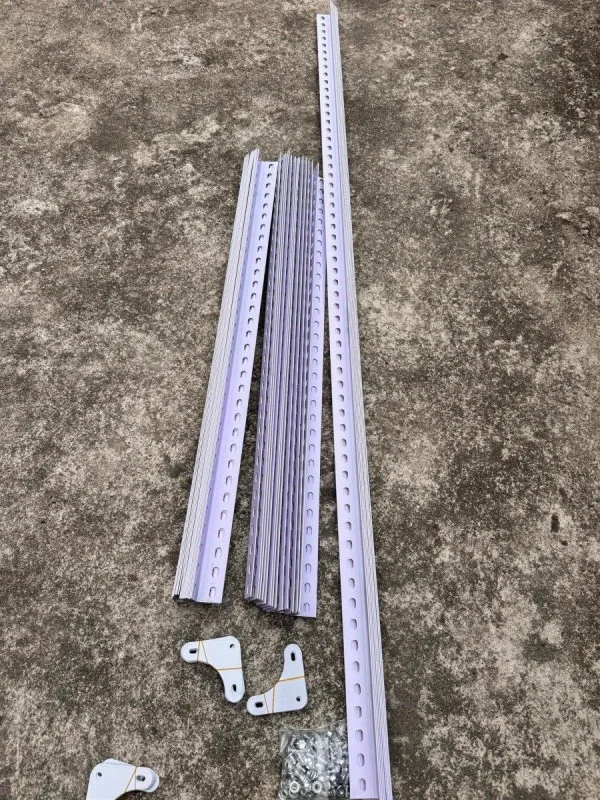

• Decorative trims and frames

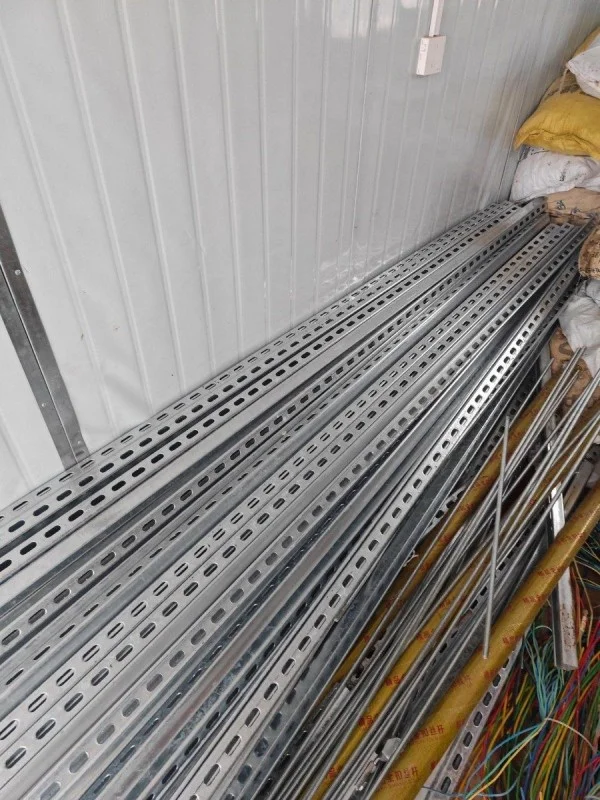

• Guardrails and shelving profiles

Hole Types

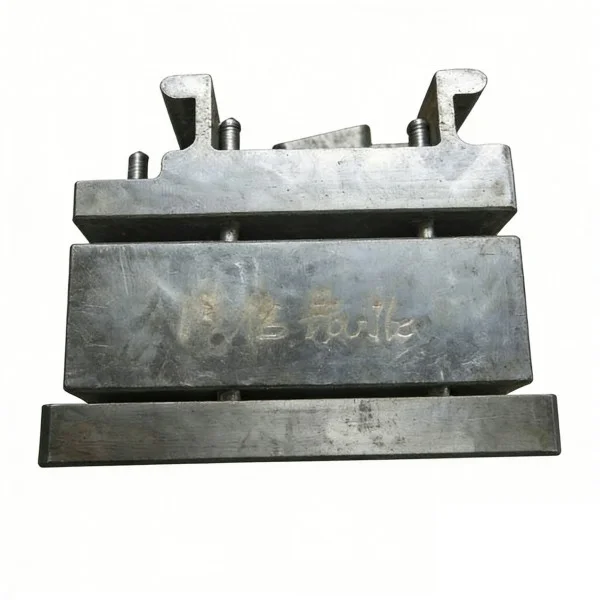

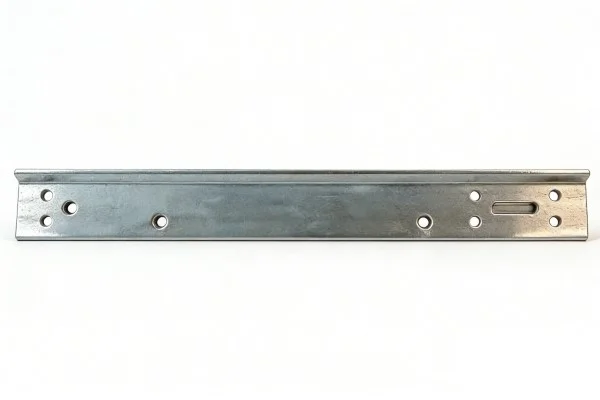

• Latch holes
• Lock holes

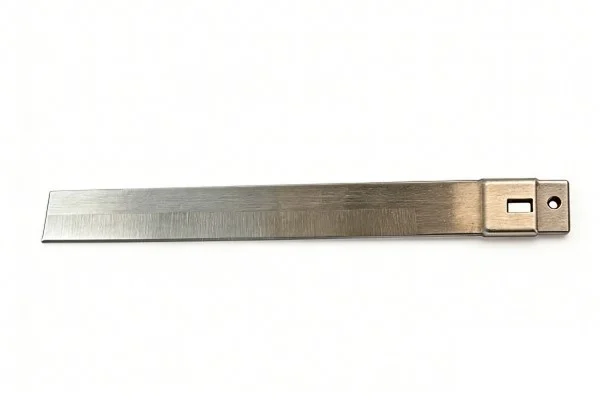

• Hinge holes

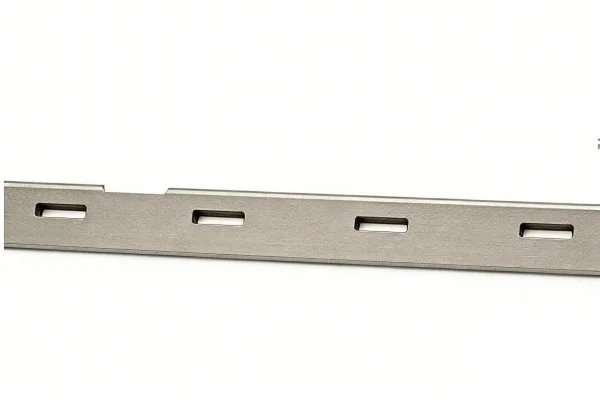

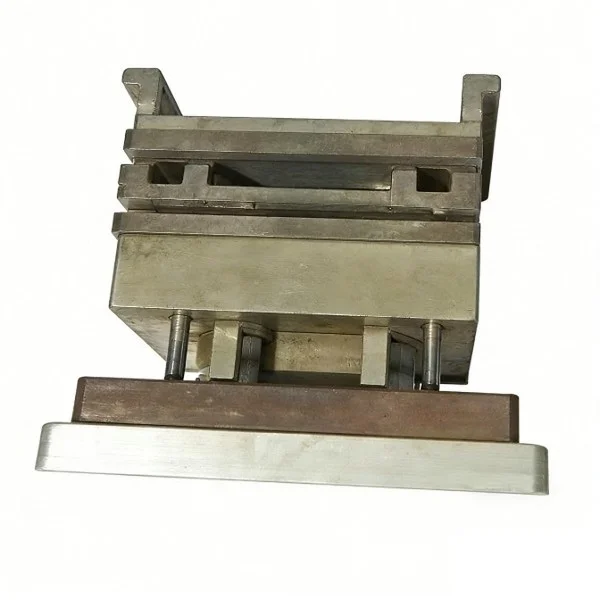

• Clip holes
• Slot holes

Key Advantages

• CNC Automatic Positioning: The system automatically calculates hole positions and adjusts punching units after parameter input, improving setup efficiency by up to 4 times compared to manual adjustment. It is especially ideal for multi-specification and small-batch production.

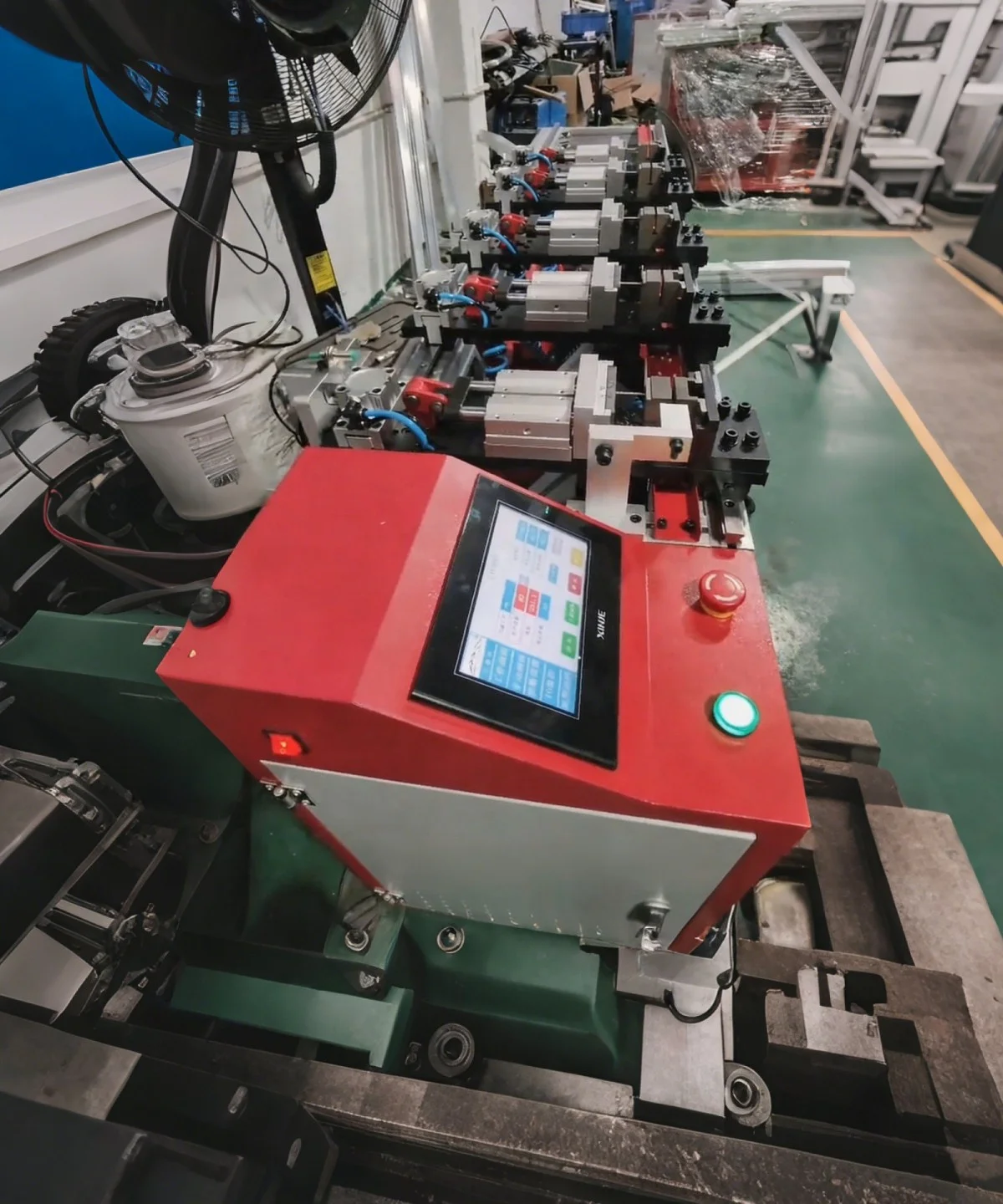

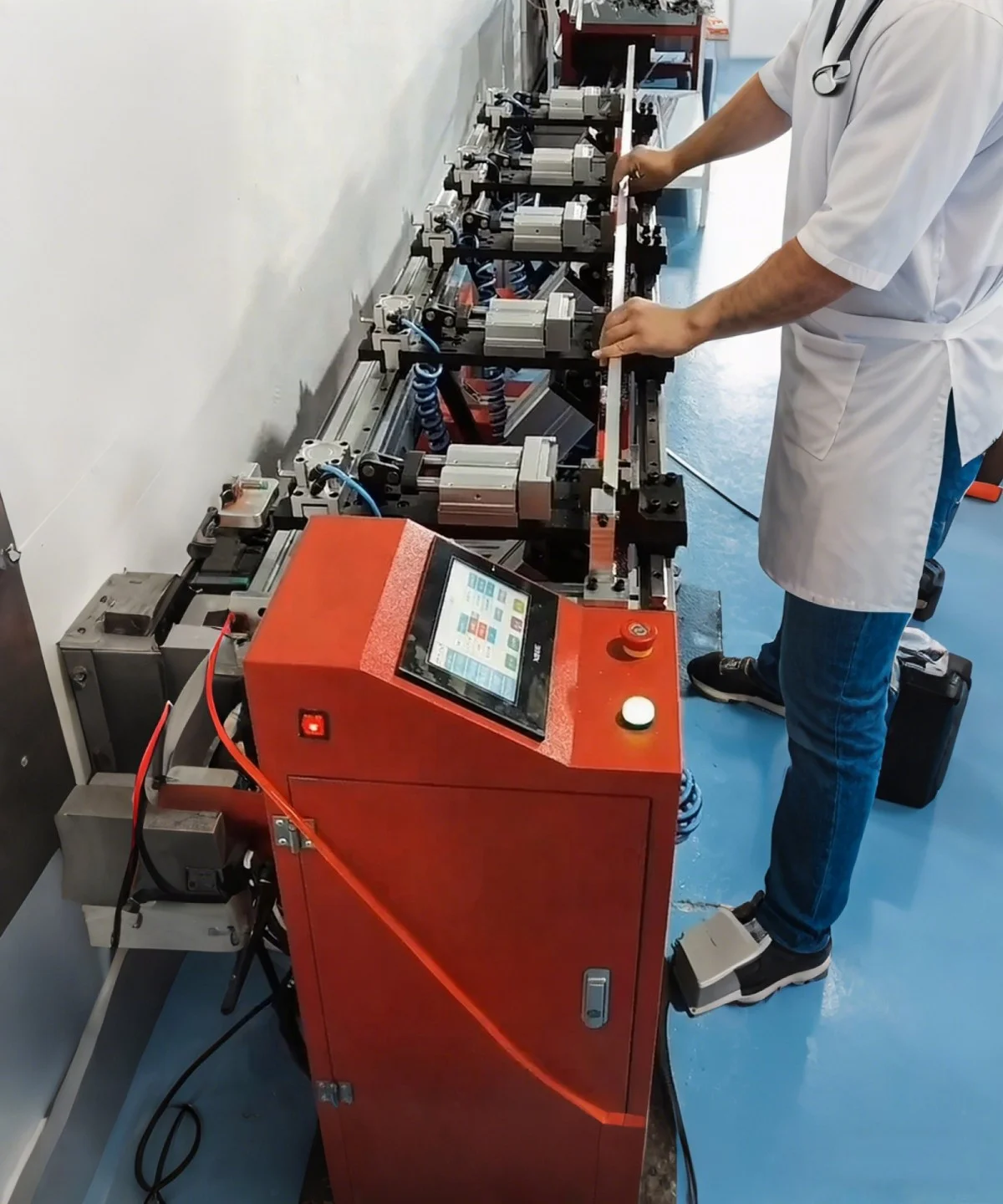

• Easy Operation: Equipped with a user-friendly CNC interface, the machine requires no professional operating experience. Operators can master the operation quickly with basic training.
• Efficient & Energy-Saving Structure: Adopts a linkage punching mechanism, reducing air consumption while enhancing punching speed and operational stability compared with traditional cylinder systems.
• Dual Profile Processing: Supports simultaneous punching of two profiles, ensuring symmetrical hole positions and greatly improving overall production efficiency.
• Quick Die Change: With plug-in mold design, mold replacement can be finished within minutes, realizing flexible switching among different hole types and processing requirements.

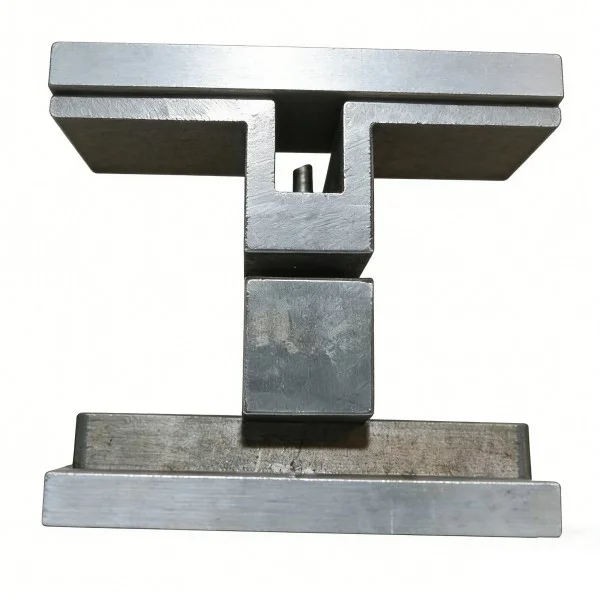

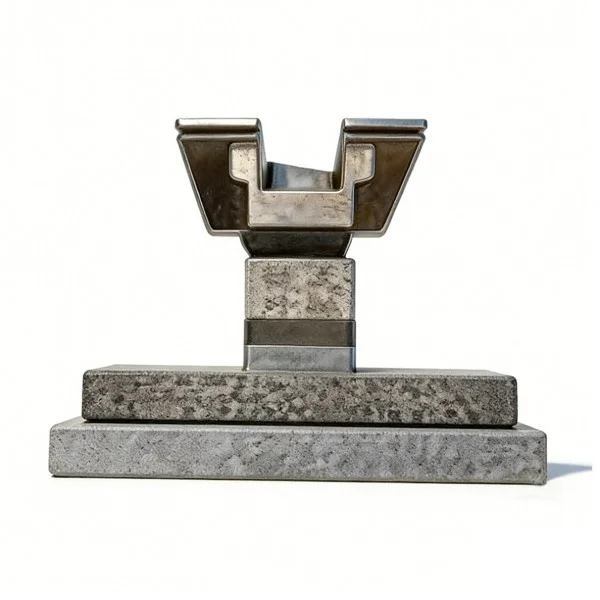

Punching Die for CNC Profile Punching Machine

Technical Features

• Standard 5-cylinder synchronous punching, up to 5 holes per cycle
• Supports dual-profile simultaneous processing
• Punching accuracy: ±0.1 mm
• Clean punching: no burrs, no material deformation
• Applicable materials: Aluminum, ABS, PVC (thickness ≤2 mm)

Stroke & Processing Capacity

• Standard stroke length: 2 meters
• Maximum processing length: up to 4 meters (double stroke)
• For longer profiles: flip and process in two steps
