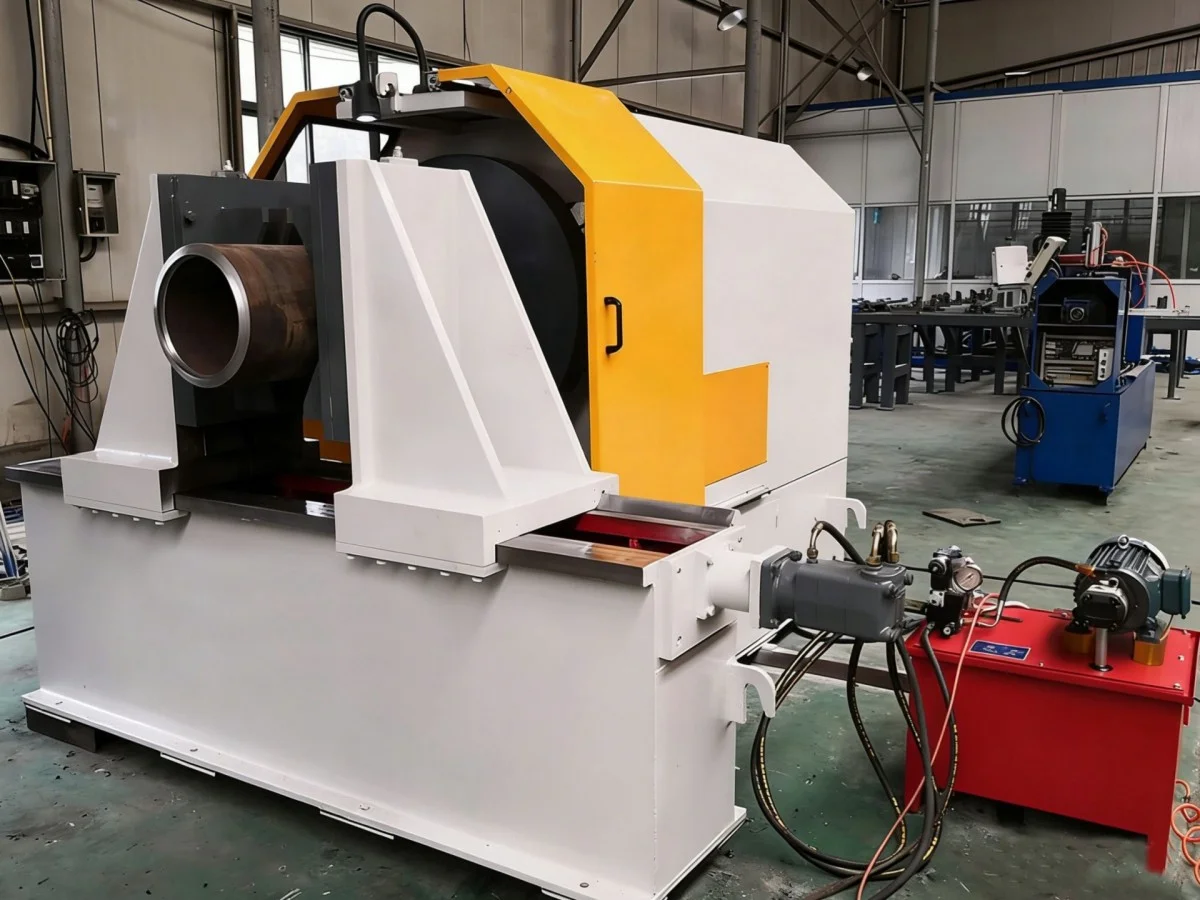

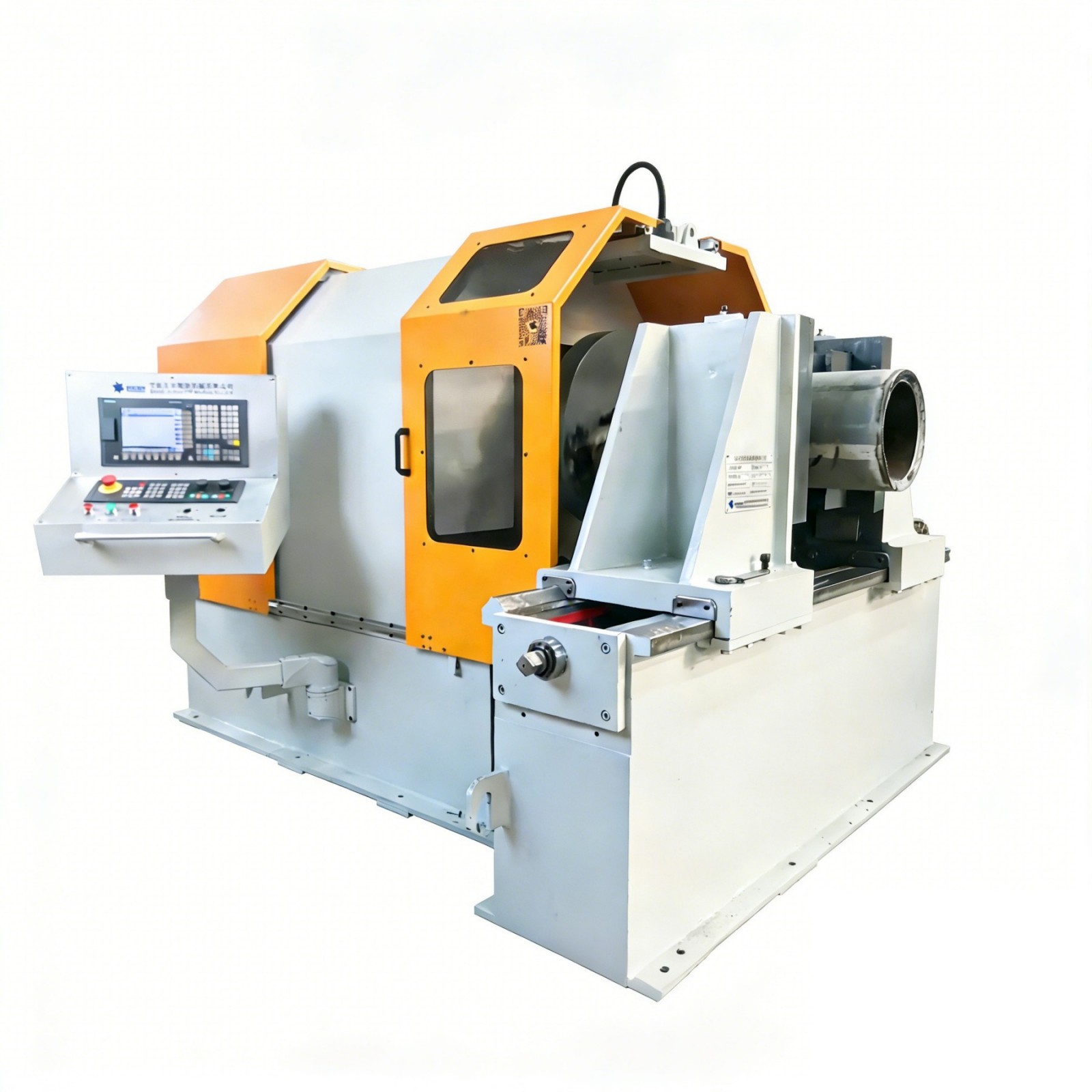

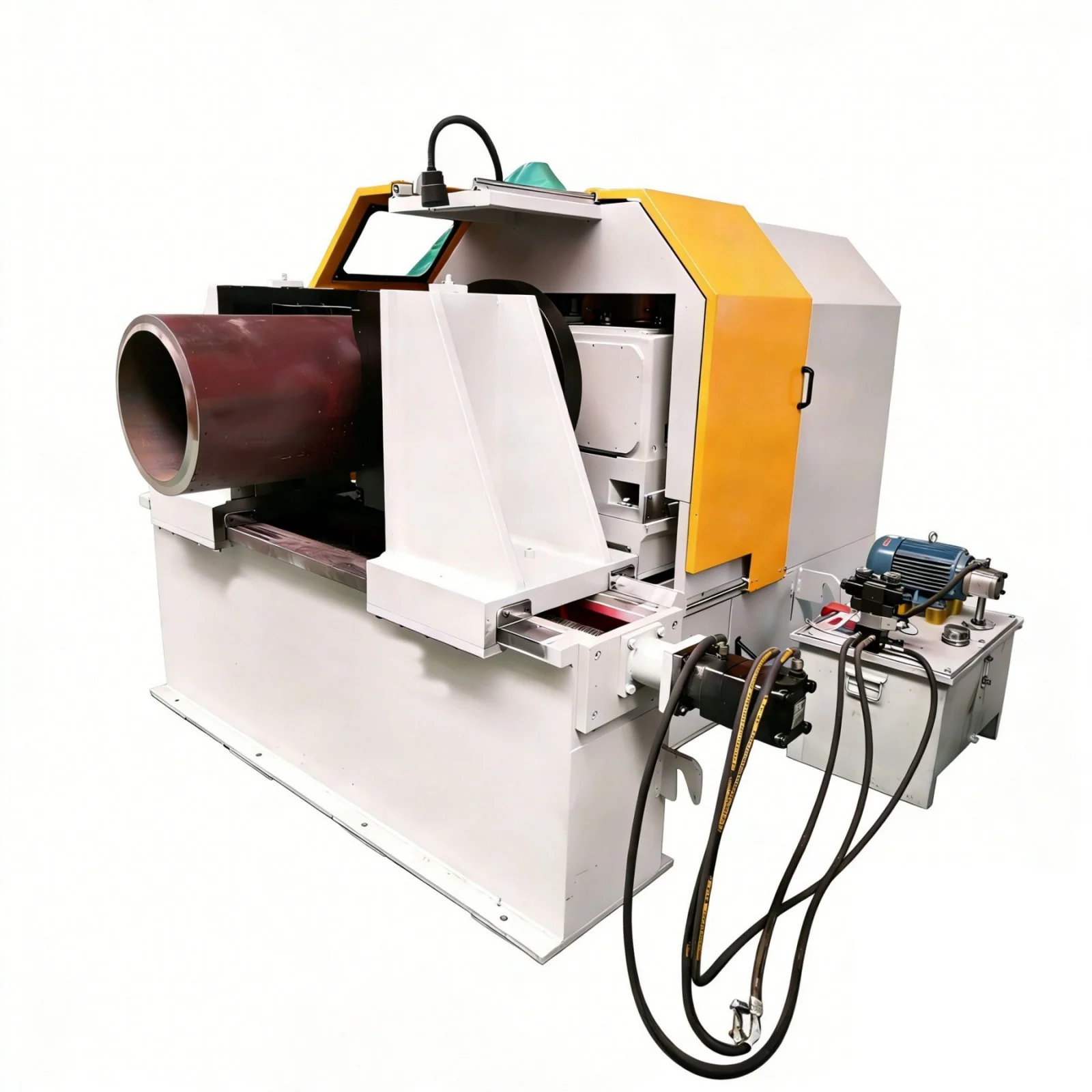

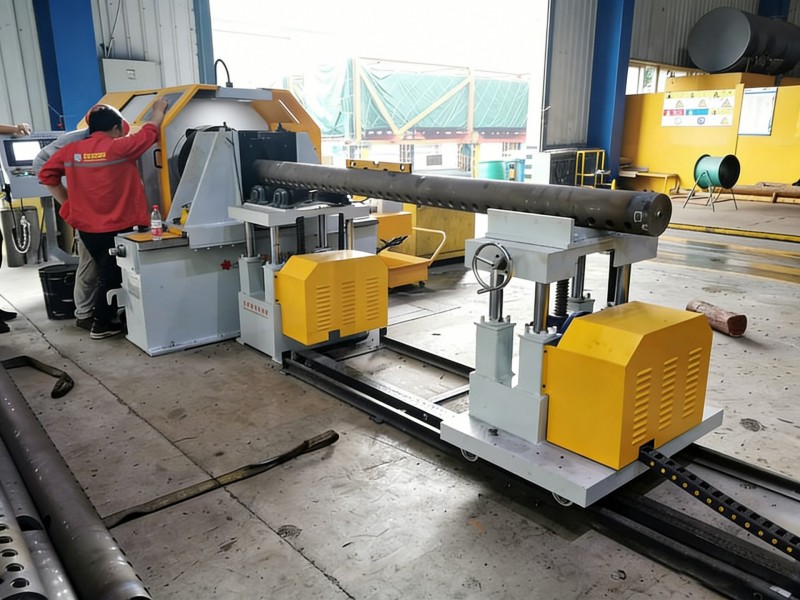

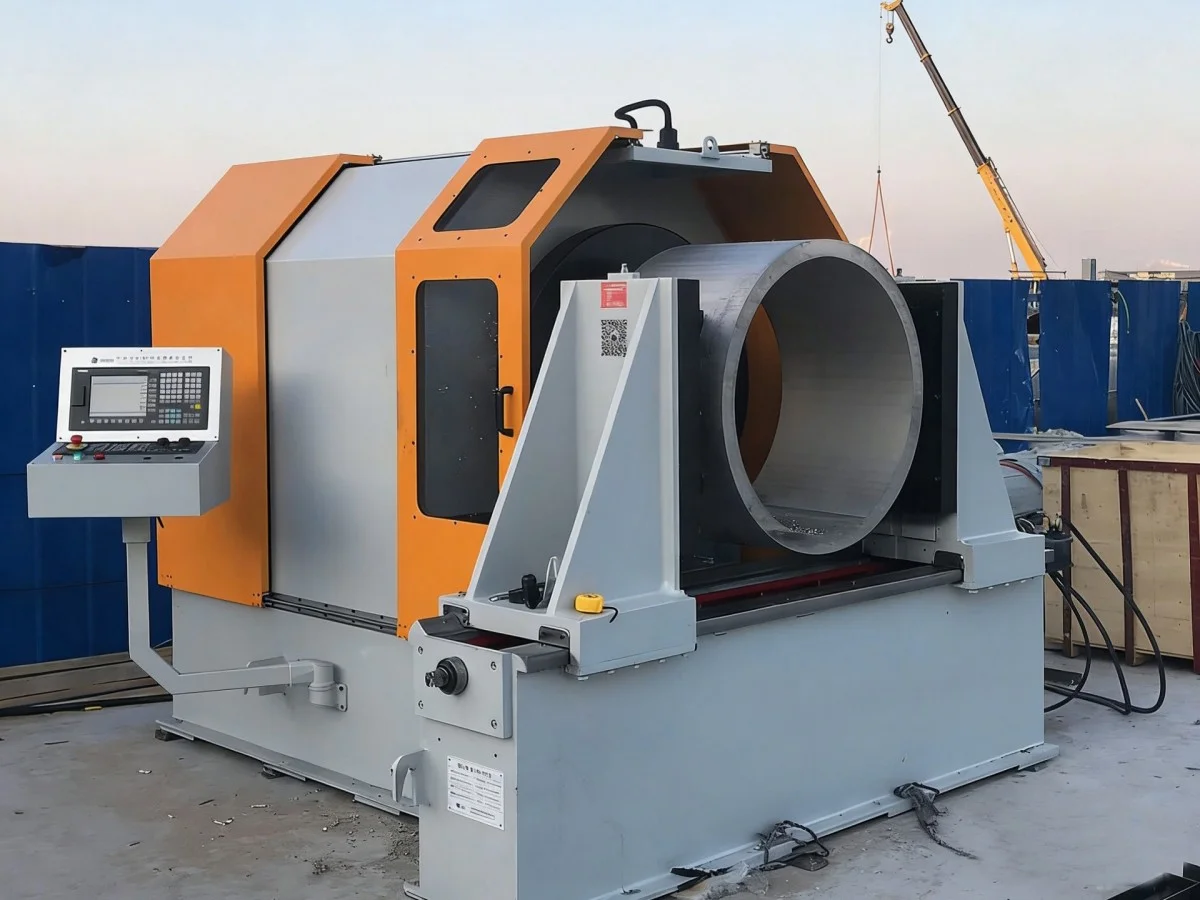

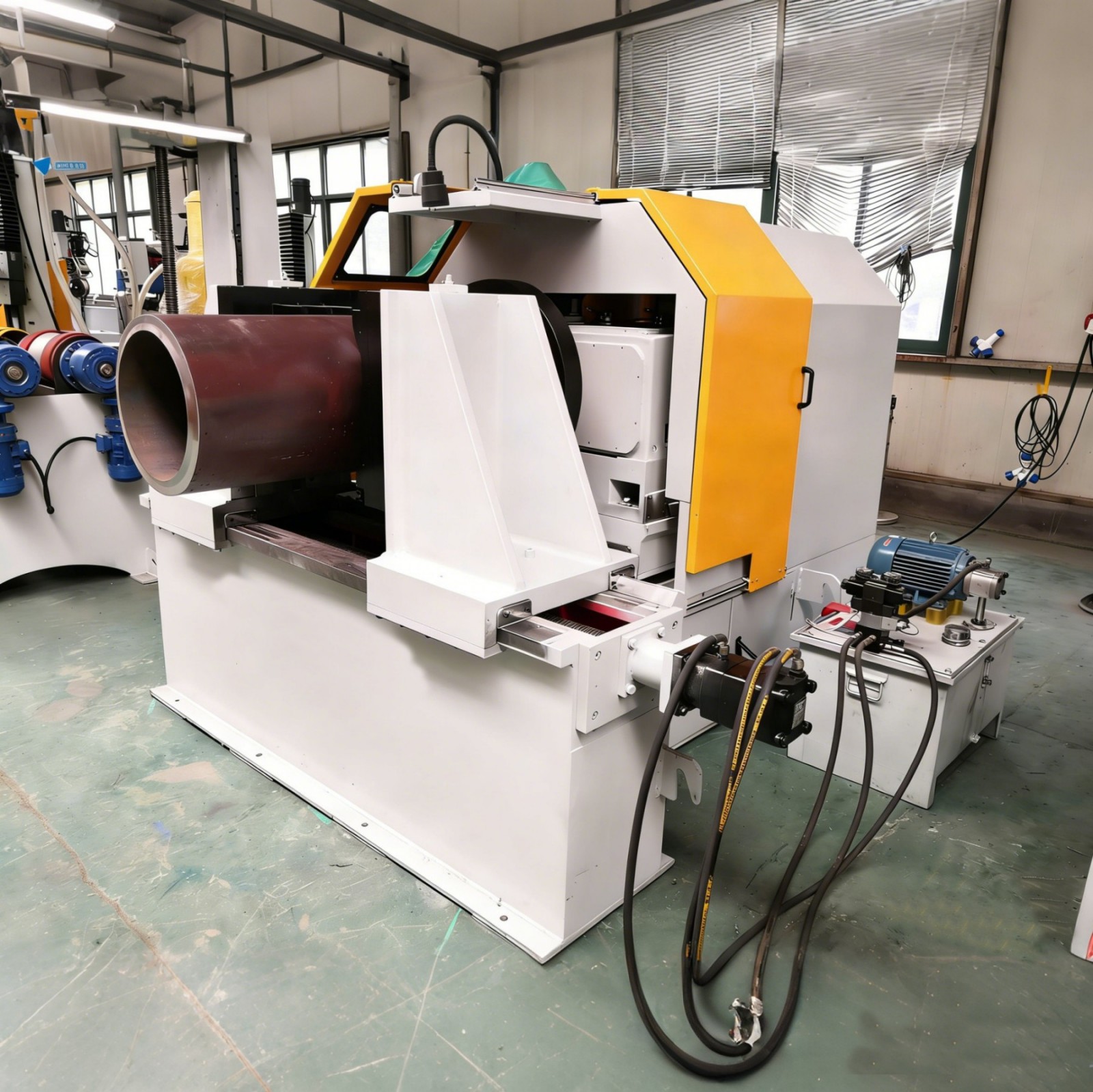

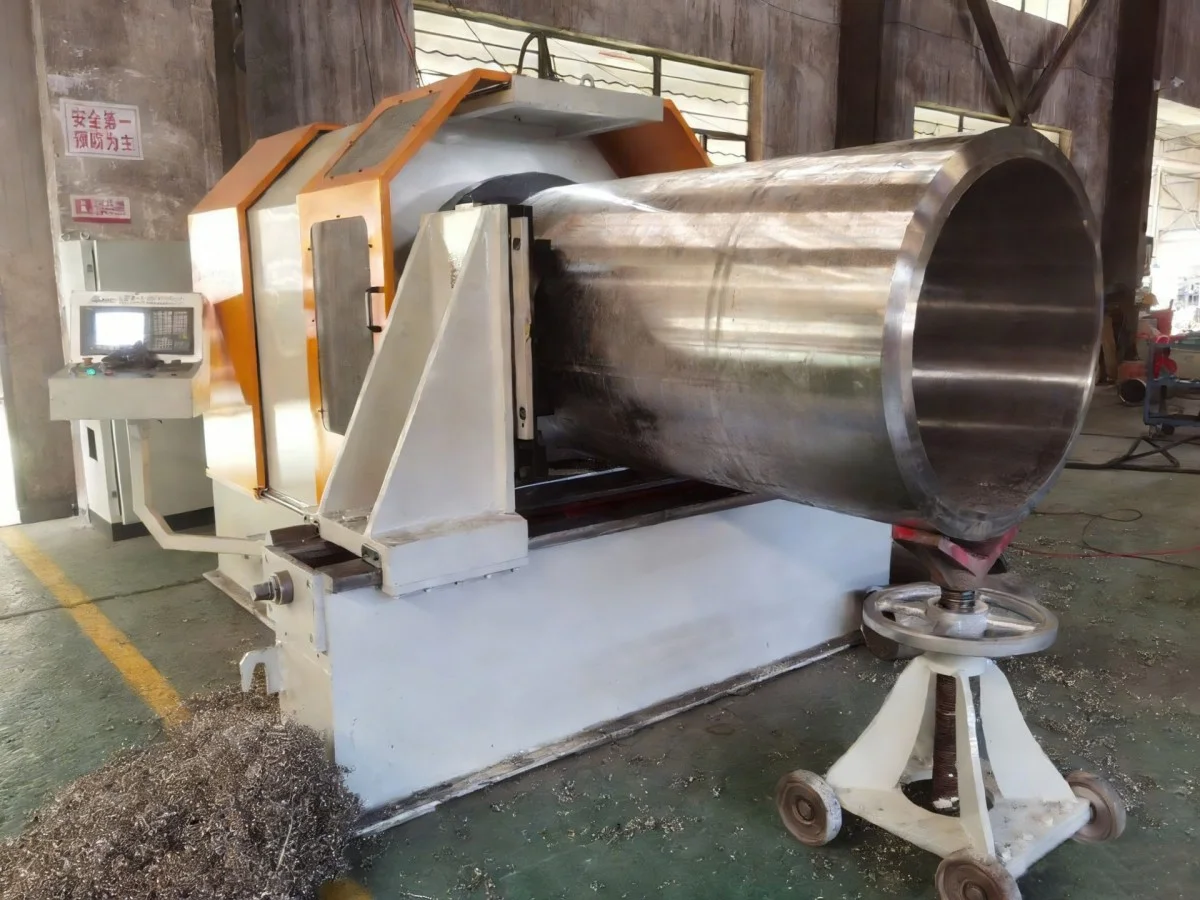

CNC High-Speed Stationary Pipe Beveling Machine

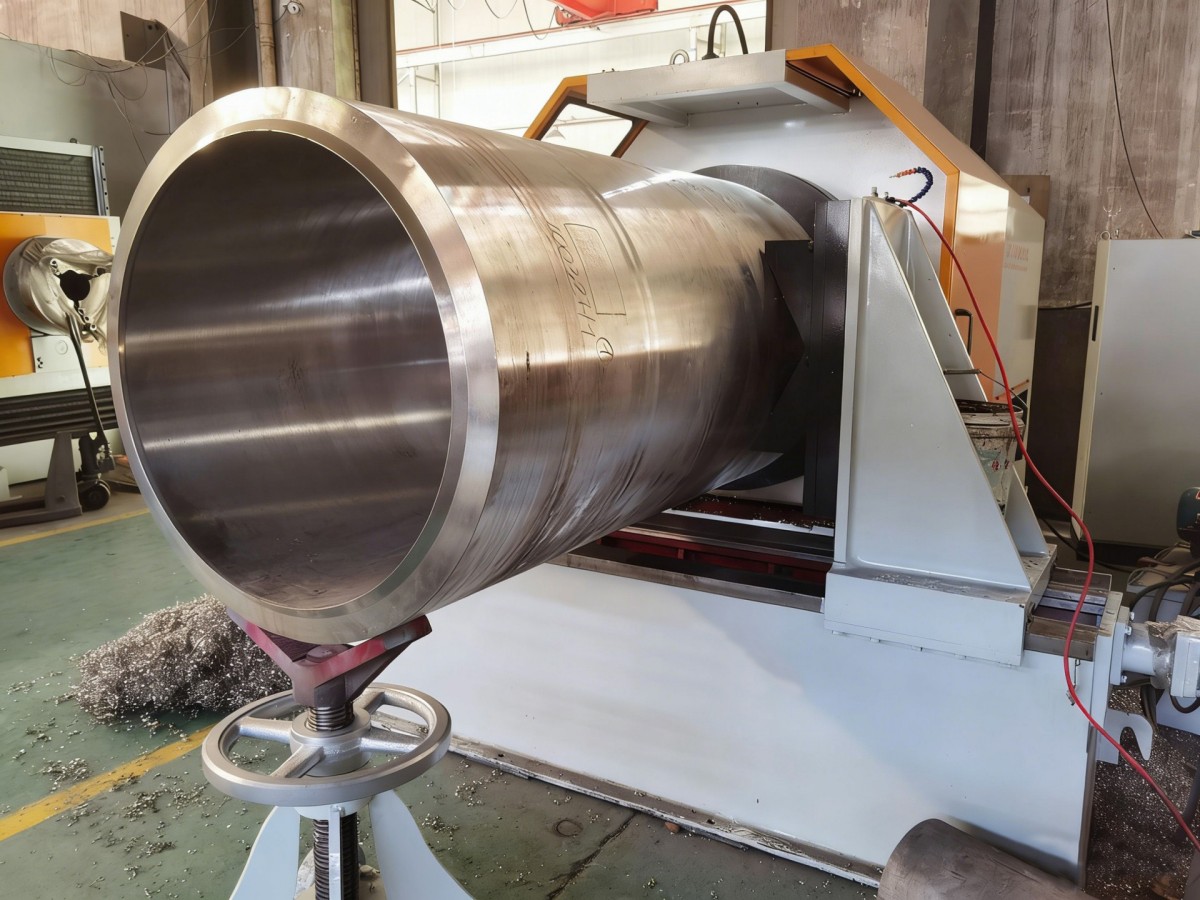

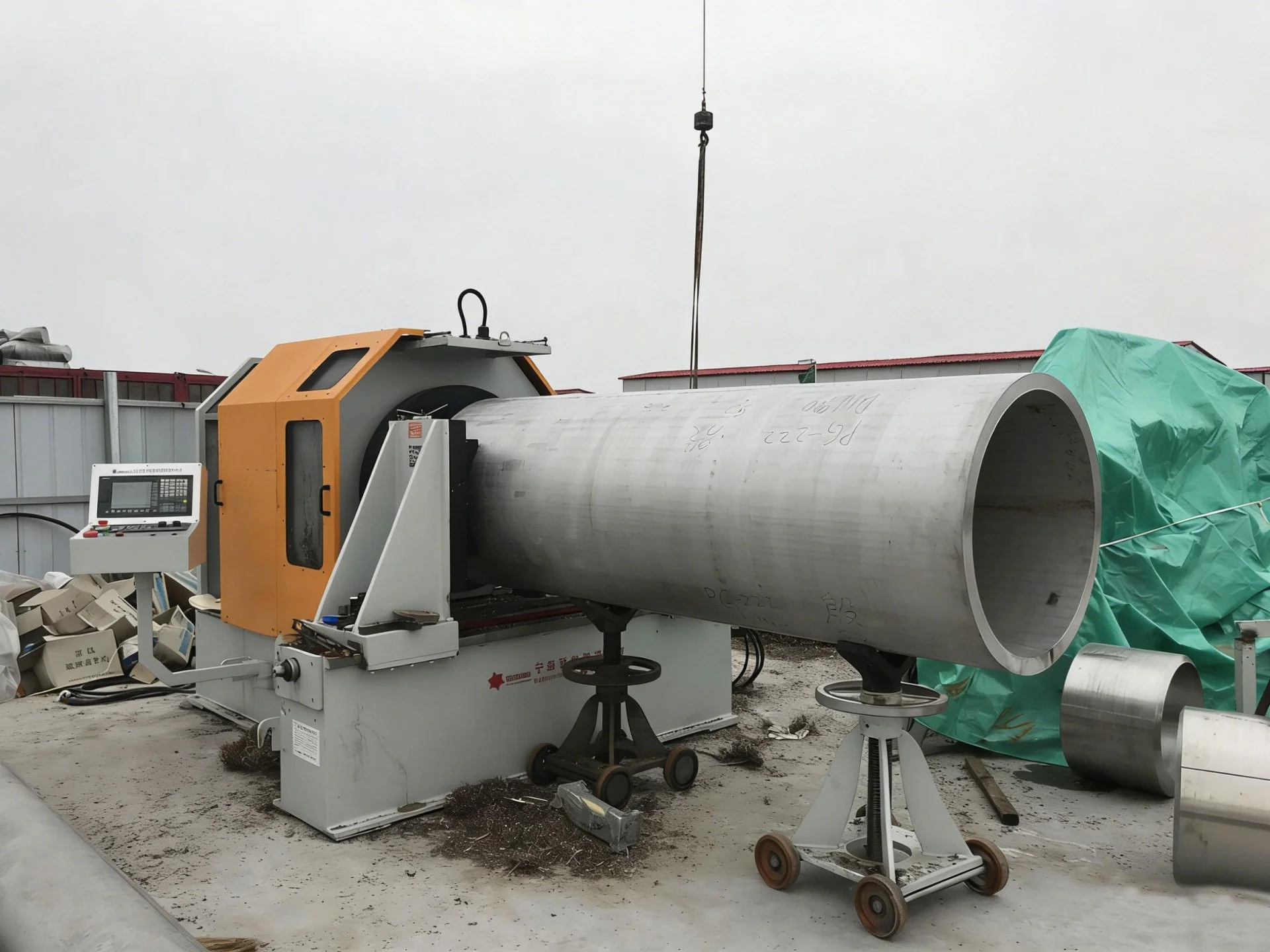

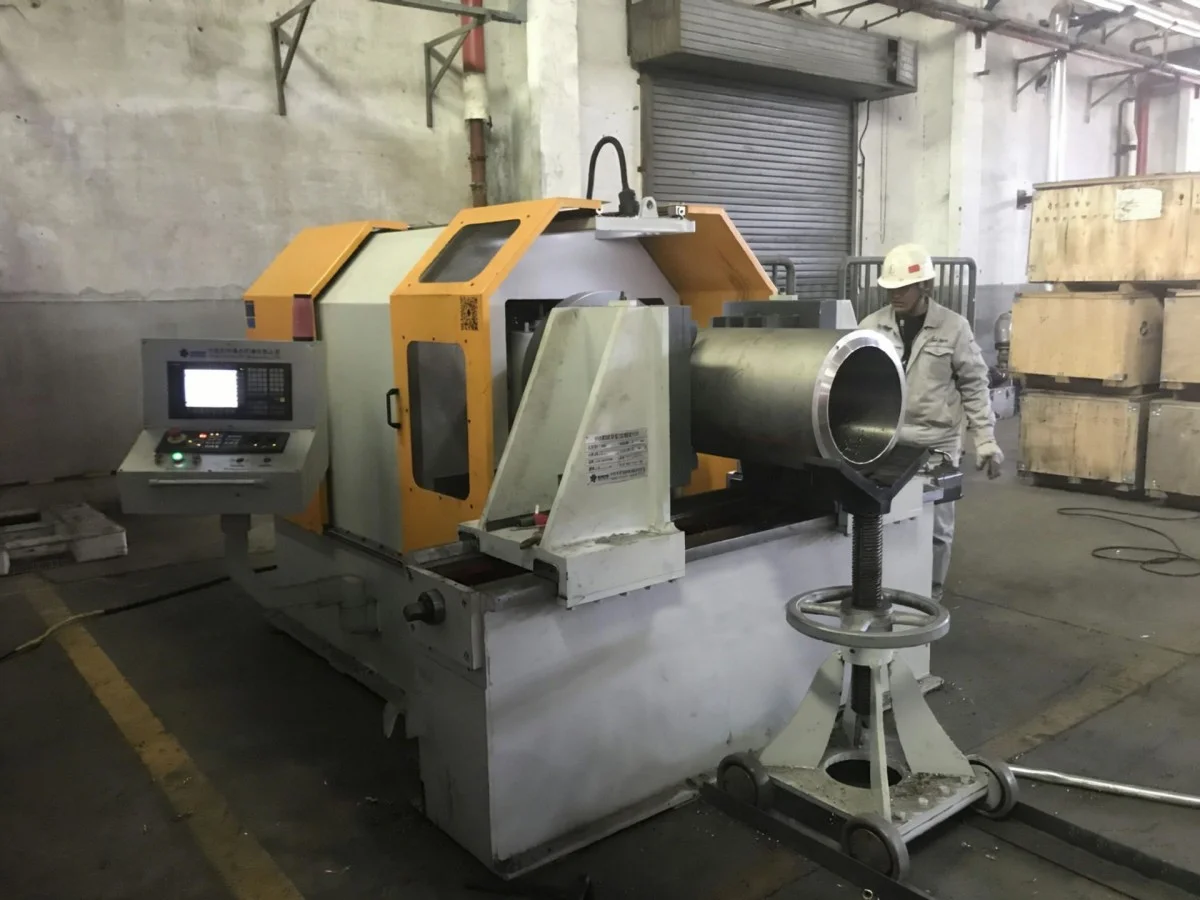

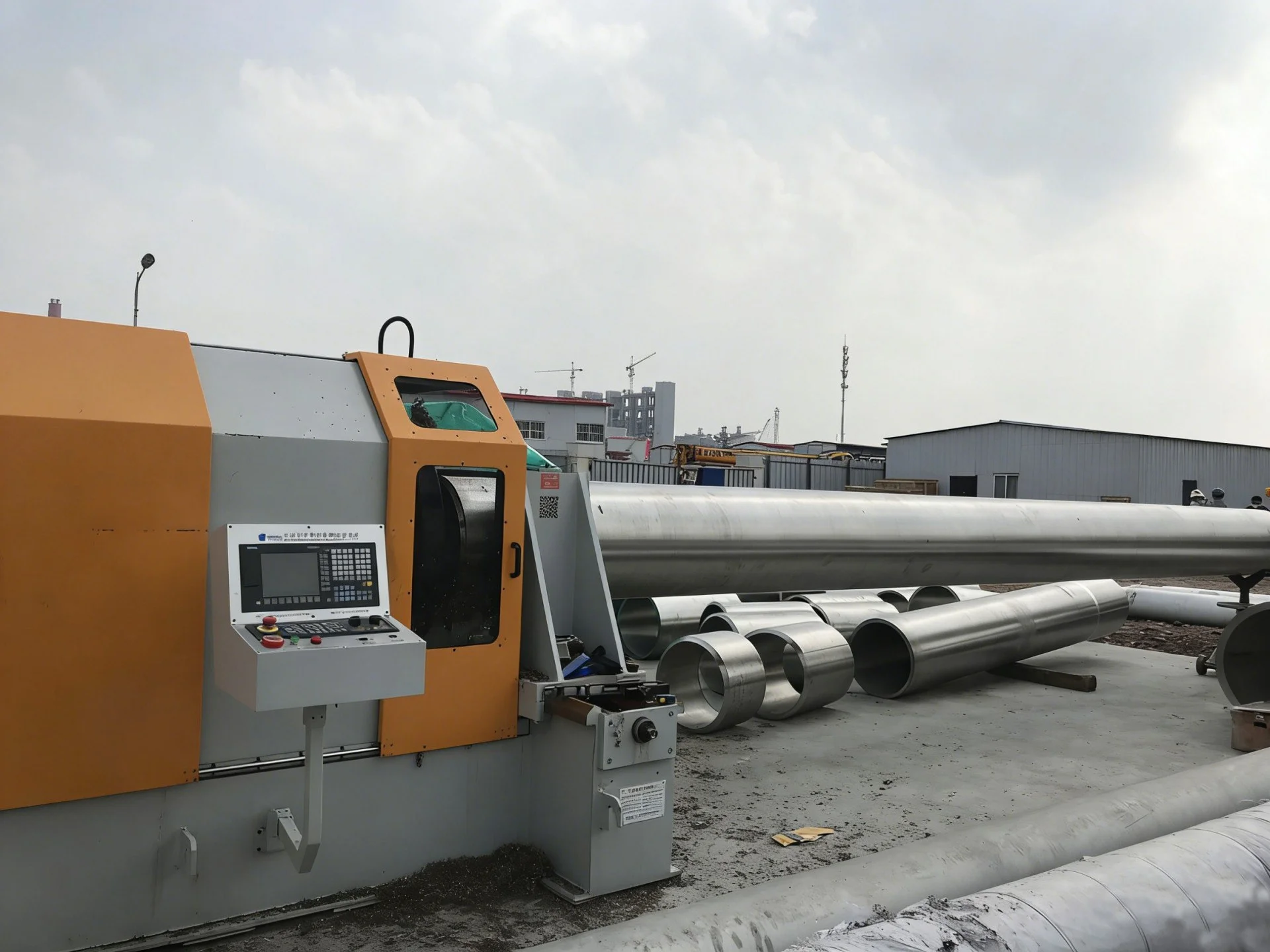

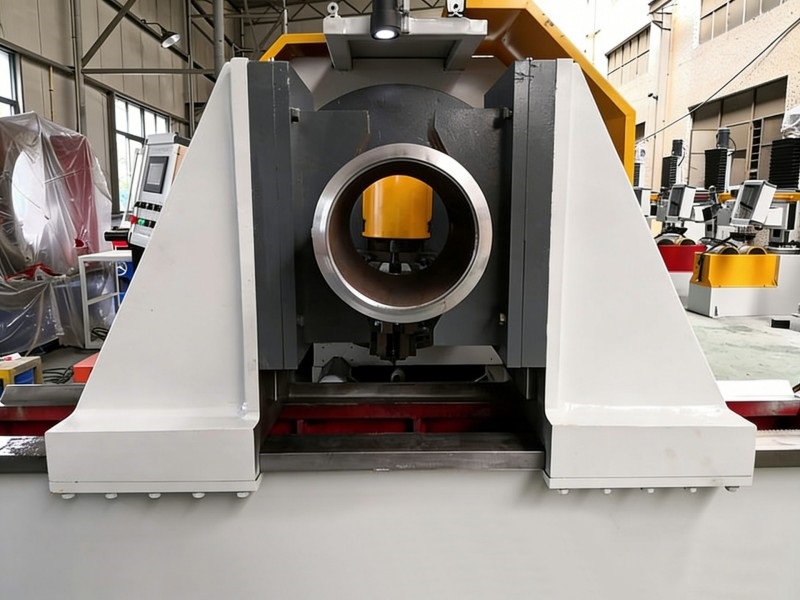

CNC Pipe Beveling Machine On Site

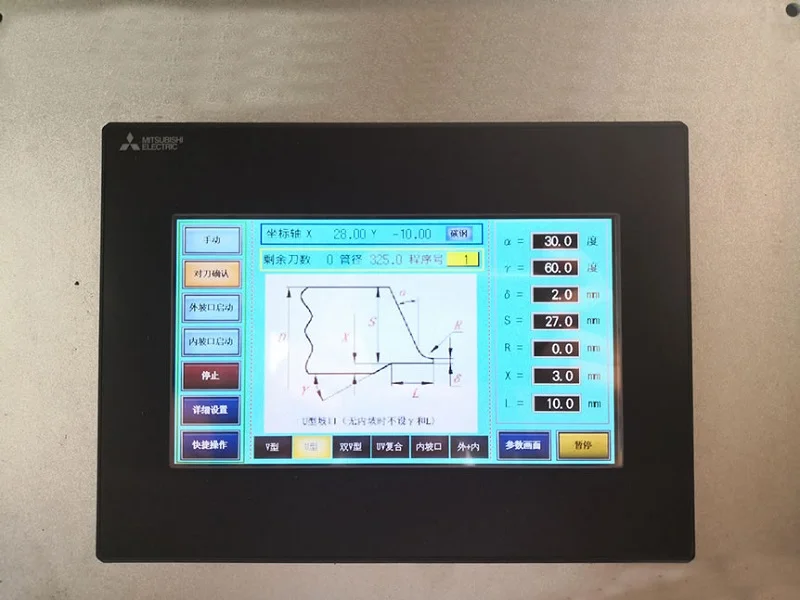

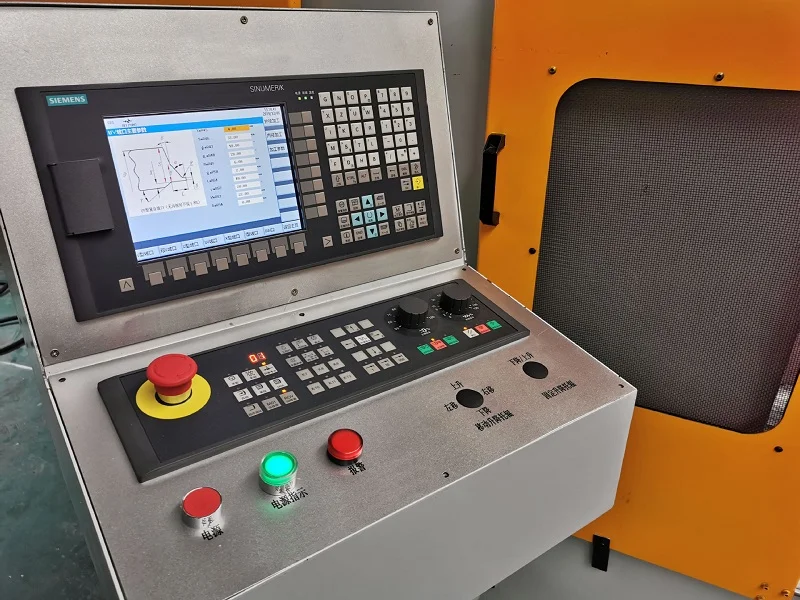

Intelligent CNC Control & Automation

• Built-in beveling database covering I, V, U, X, Double V, Double U, compound bevels, internal beveling and boring
• Automatic G-code generationbased on selected bevel type and input parameters
• One-click automatic machining with no manual programming required
• Real-time monitoring of machining status, coordinates, and progress
• Storage of over 200 machining programsfor repeat production
• Supports USB data import/exportand OPC / OPC UA communication

This system simplifies operation into a parameter-input-driven workflow, reducing human error and training requirements.

High Precision & High Efficiency Performance

• 3-axis CNC linkage system: axial feed (X), radial feed (Y), and rotary cutting head (Z)
• High-performance servo motors combined with precision planetary gear transmission
• Continuous automatic cutting without stopping or tool change
• Consistent bevel accuracy suitable for high-standard welding applications
• Capable of handling both thin and thick wall pipes with stable performance
• Achieves productivity levels of over 1000 inch-dia per day

Designed for mass production environments, ensuring both speed and consistency.

Wide Material Compatibility & Low Operating Cost

• Cold cutting processeliminates heat-affected zones and preserves material properties
• Suitable for carbon steel, stainless steel, alloy steel, duplex stainless steel, nickel alloys, titanium, and heat-resistant steels
• Compatible with standard indexable carbide inserts
• No need for custom tooling, reducing tooling costs
• Durable design minimizes maintenance and long-term operational expenses

This ensures maximum flexibility with minimum cost per part.

Robust Design, Safety & Expandability

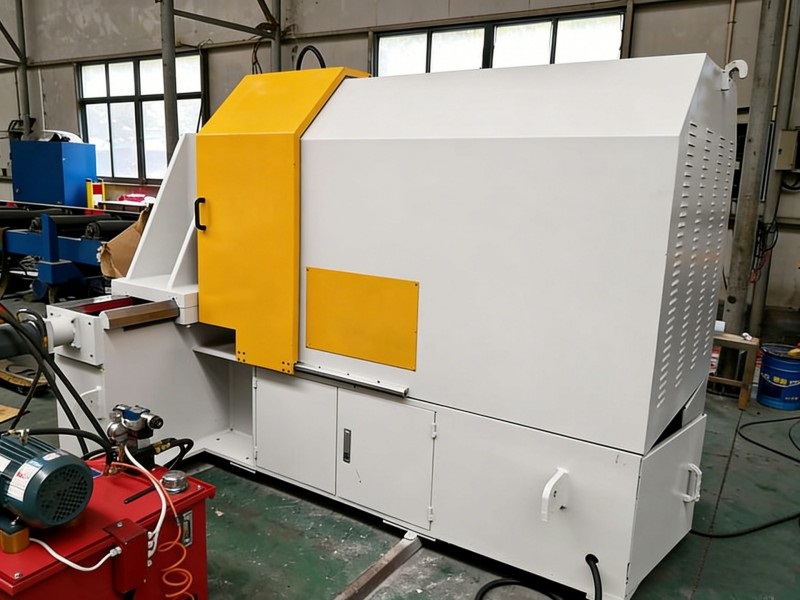

• Fully enclosed safety guard protects operators and working environment
• Equipped with emergency stop and safety limit systems
• Automatic lubrication system enhances machine reliability and lifespan
• Ergonomic operating height (900–1200 mm) for comfortable use

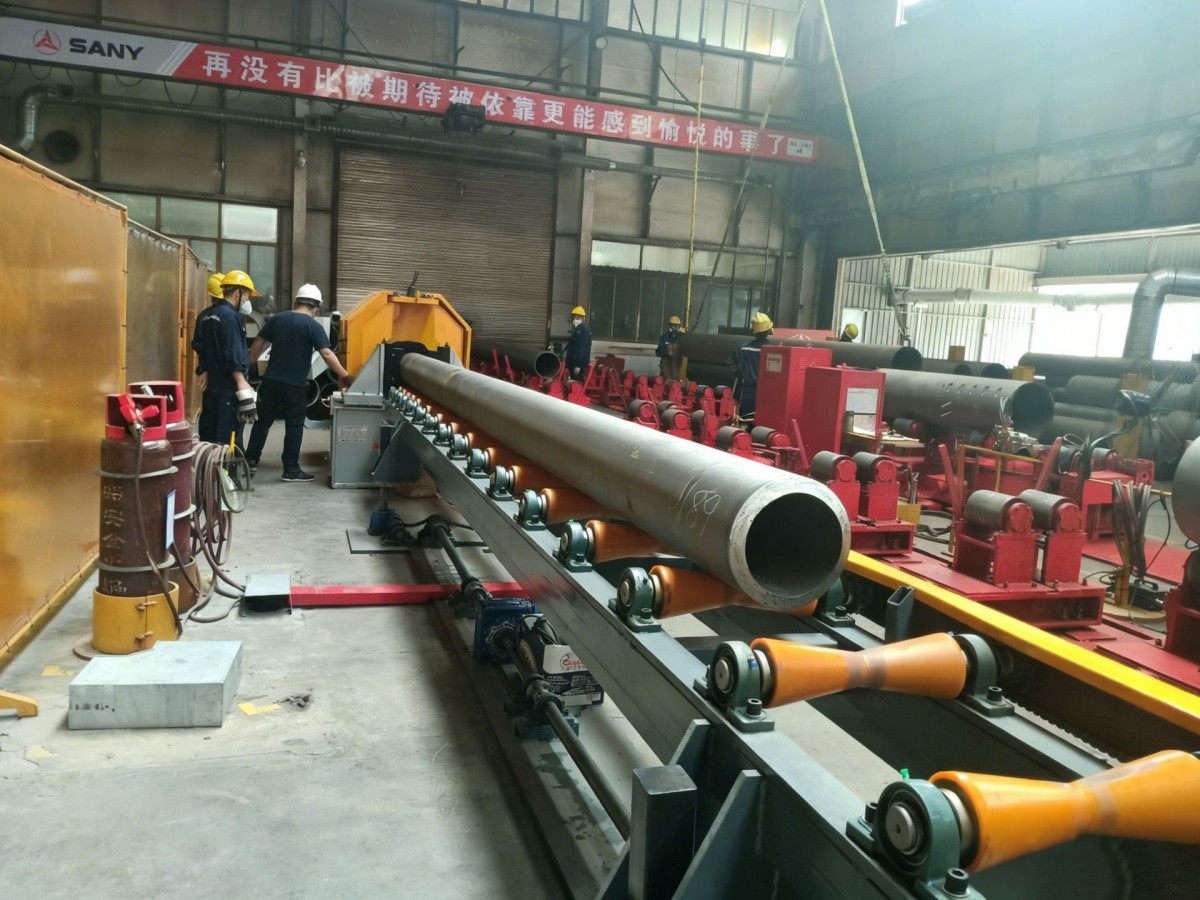

• Modular design supports integration with pipe conveying and rotation systems
• Enables automated pipeline production and continuous workflow

The system integrates components from leading global brands such as Siemens, Mitsubishi Electric, Schneider Electric, and Omron to ensure long-term stability and reliability.
