CNC Double Head Automatic Feeding Chamfering Machine

automatic double head chamfering machine for long workpieces img2

automatic double head chamfering machine for long workpieces img4

automatic double head chamfering machine for long workpieces img1

automatic double head chamfering machine for long workpieces img3

Model Number: AEK-SM Series

~~$6500.00~~$6300.00

(Reference Price)

The AEK-SM Series Double Head CNC Servo Chamfering Machine is designed for end-face machining of metal round tubes, solid bars, shafts, and thick-walled profiles. The series covers models from Ø80 mm to Ø200 mm, providing a consistent solution for different workpiece sizes within a unified machine platform.

The machine adopts a double-head configuration with independent servo feeding on both sides.

In a single clamping cycle, it can complete inner and outer chamfering, end facing, deburring, and beveling. This reduces repositioning and improves process consistency.

Send Inquiry Now

Description
Specifications

Double Head CNC Servo Chamfering Machine for Ø80–200 mm Workpieces

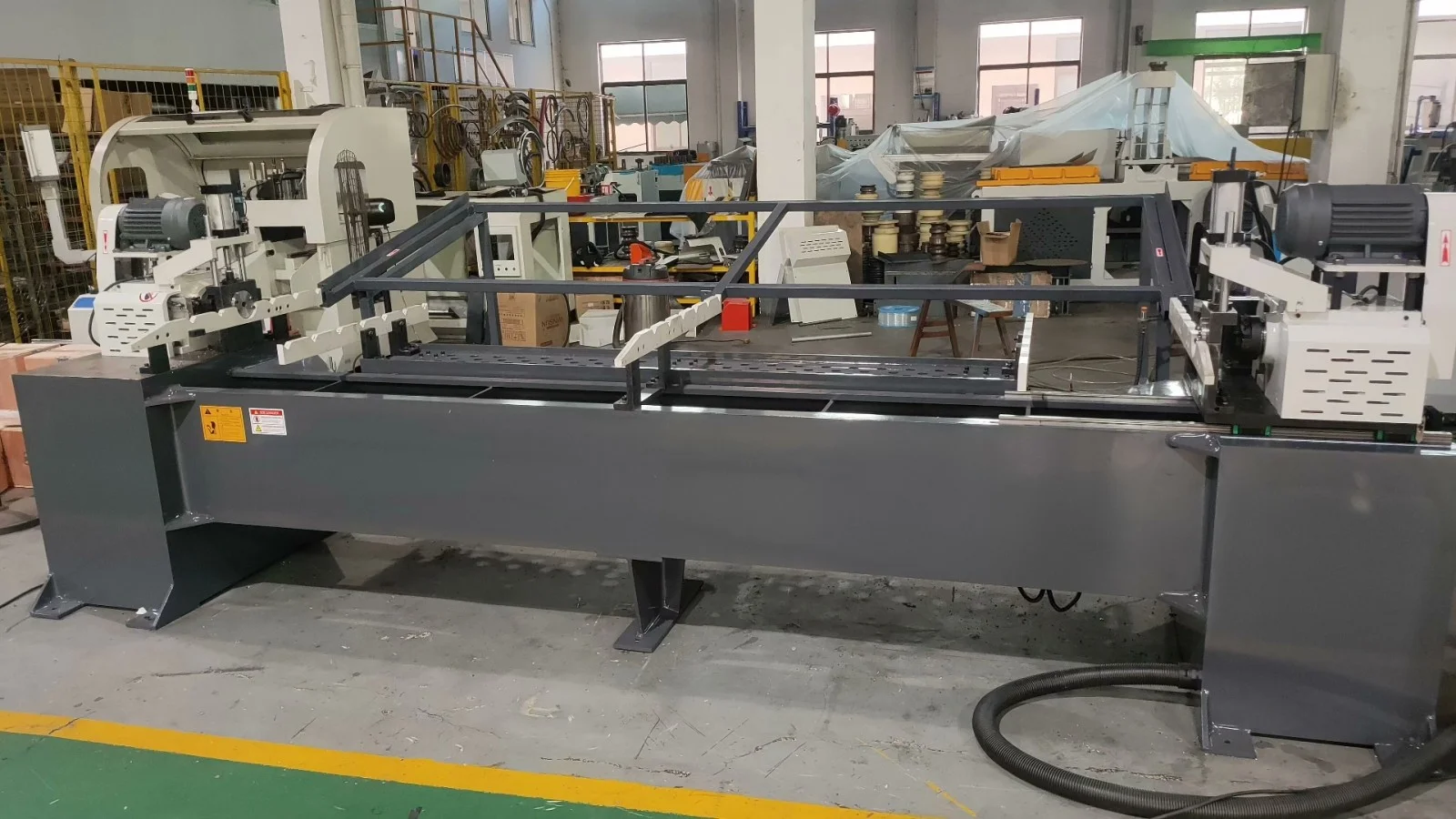

double head servo chamfering machine for heavy duty workpieces

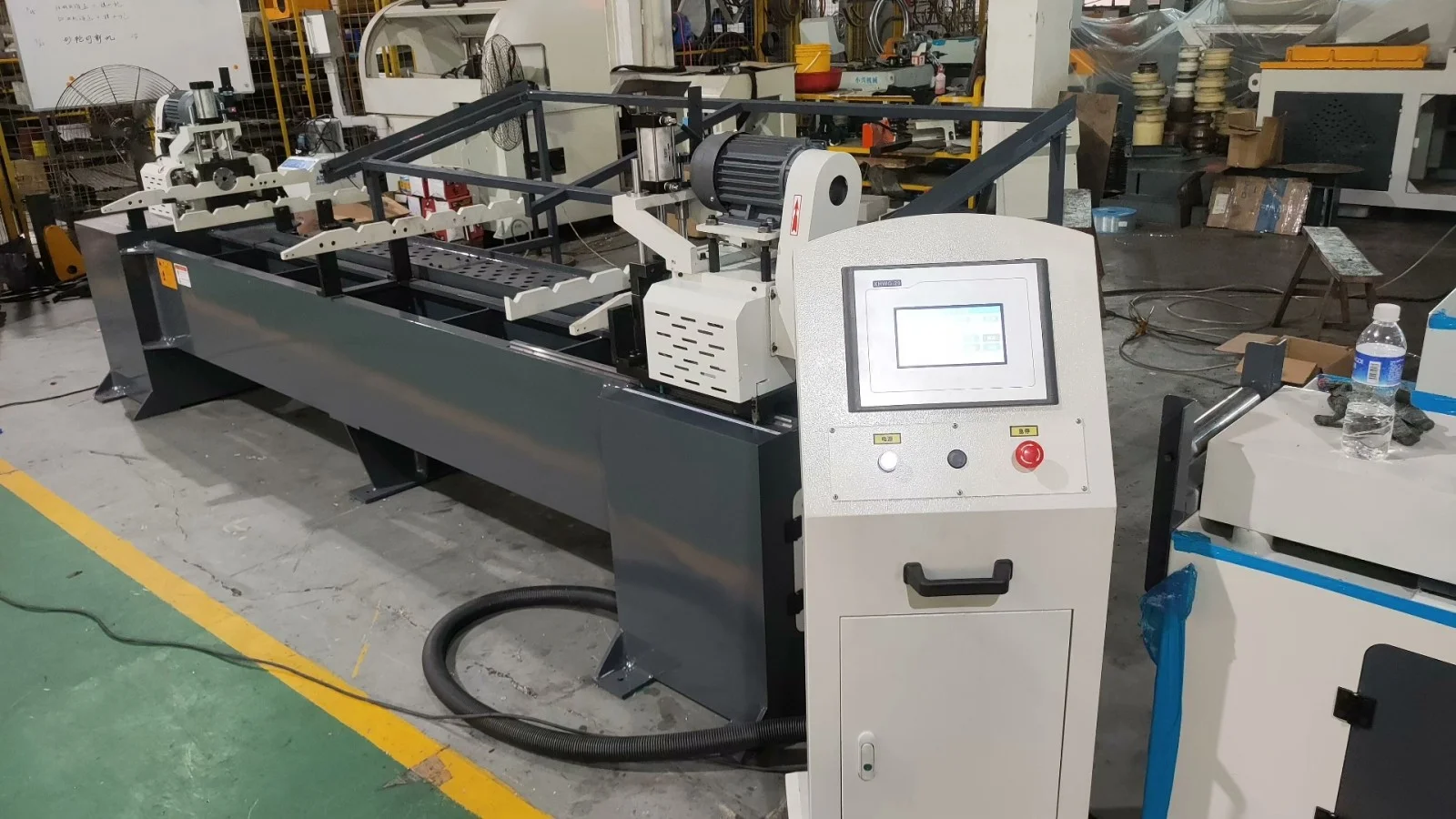

double head servo chamfering machine with support feeding system

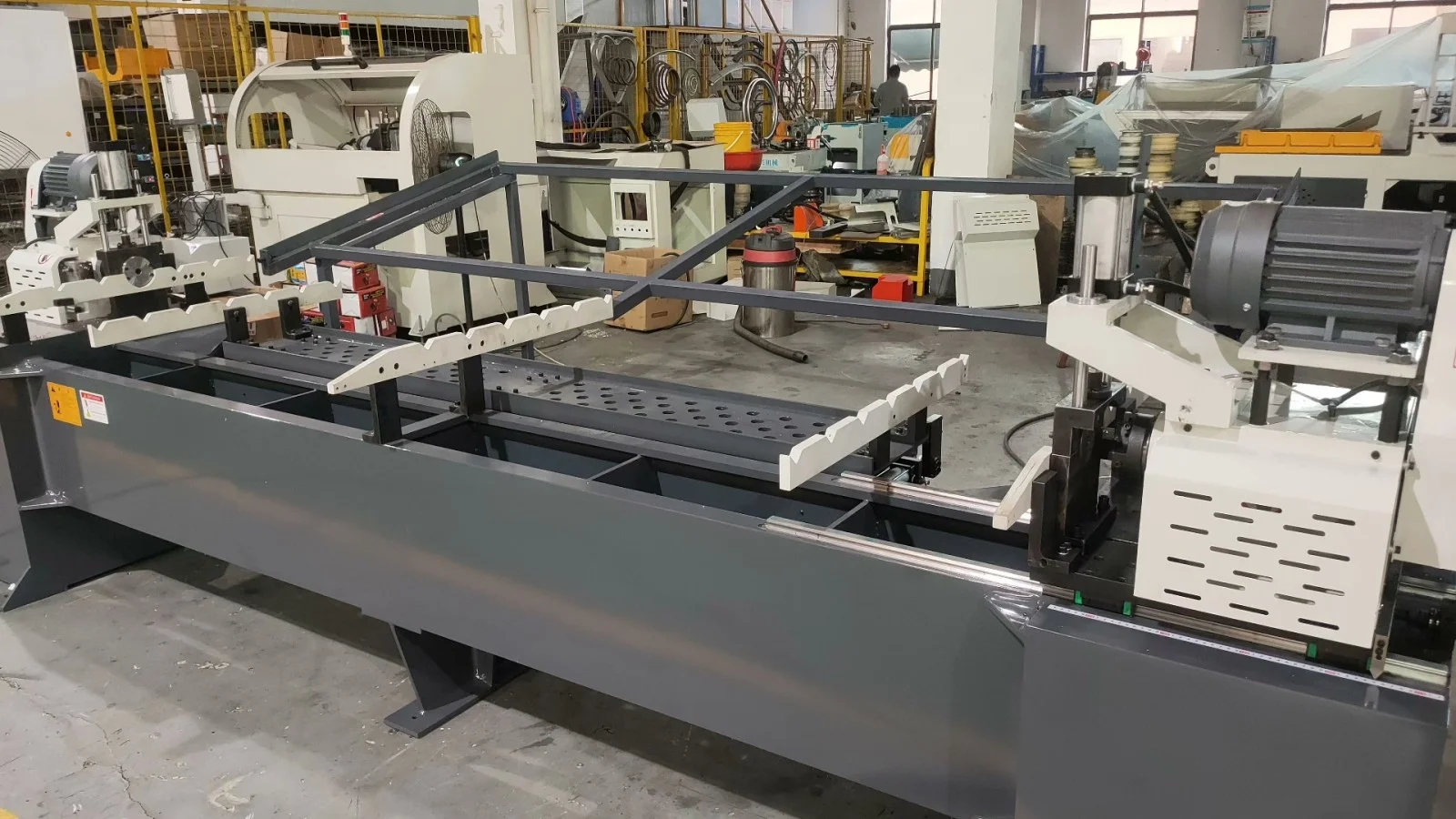

cnc double head chamfering machine for long tube processing

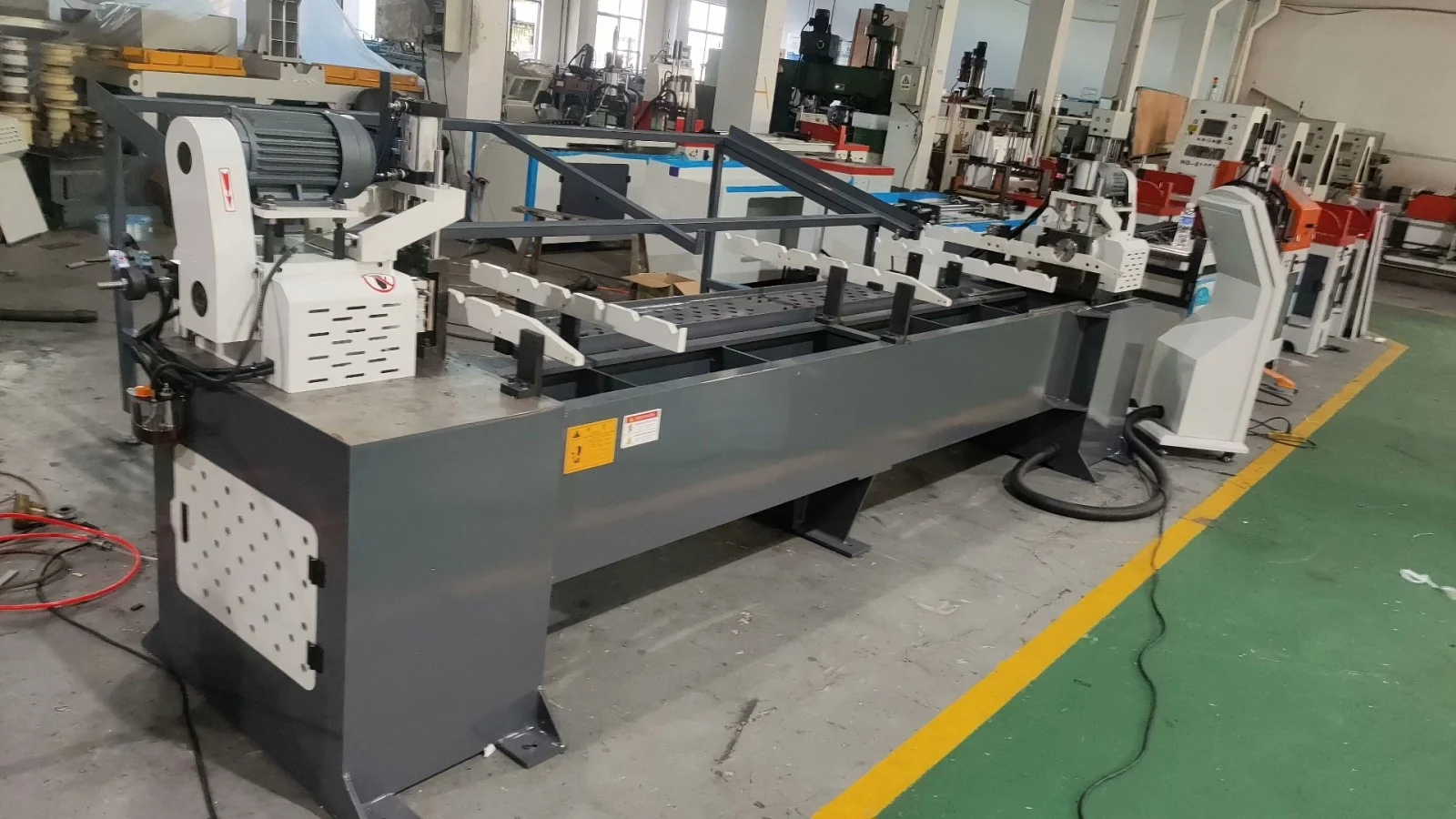

double head automatic chamfering machine for large diameter pipes

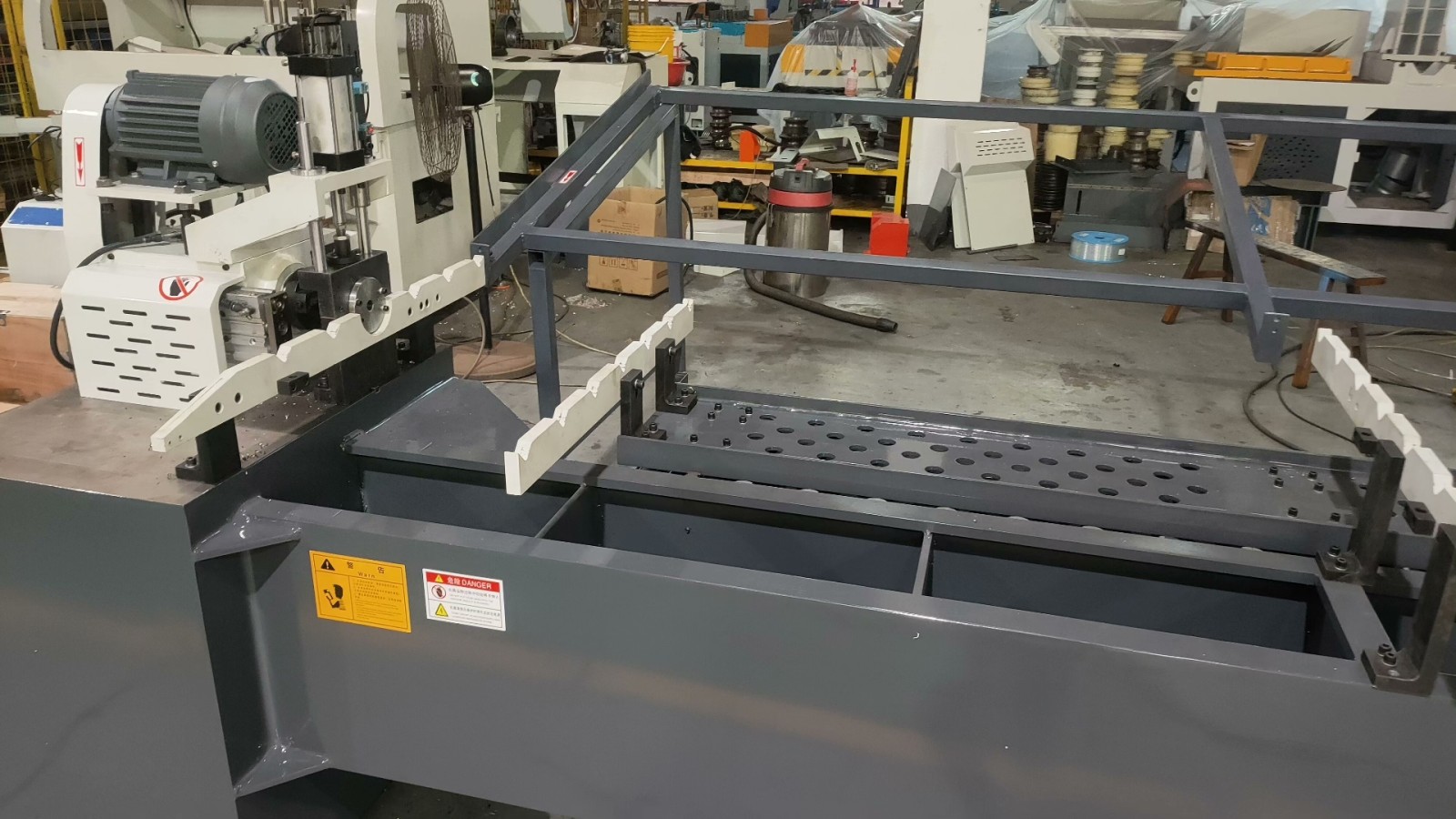

double head cnc chamfering machine for o80 200 mm pipes and bars

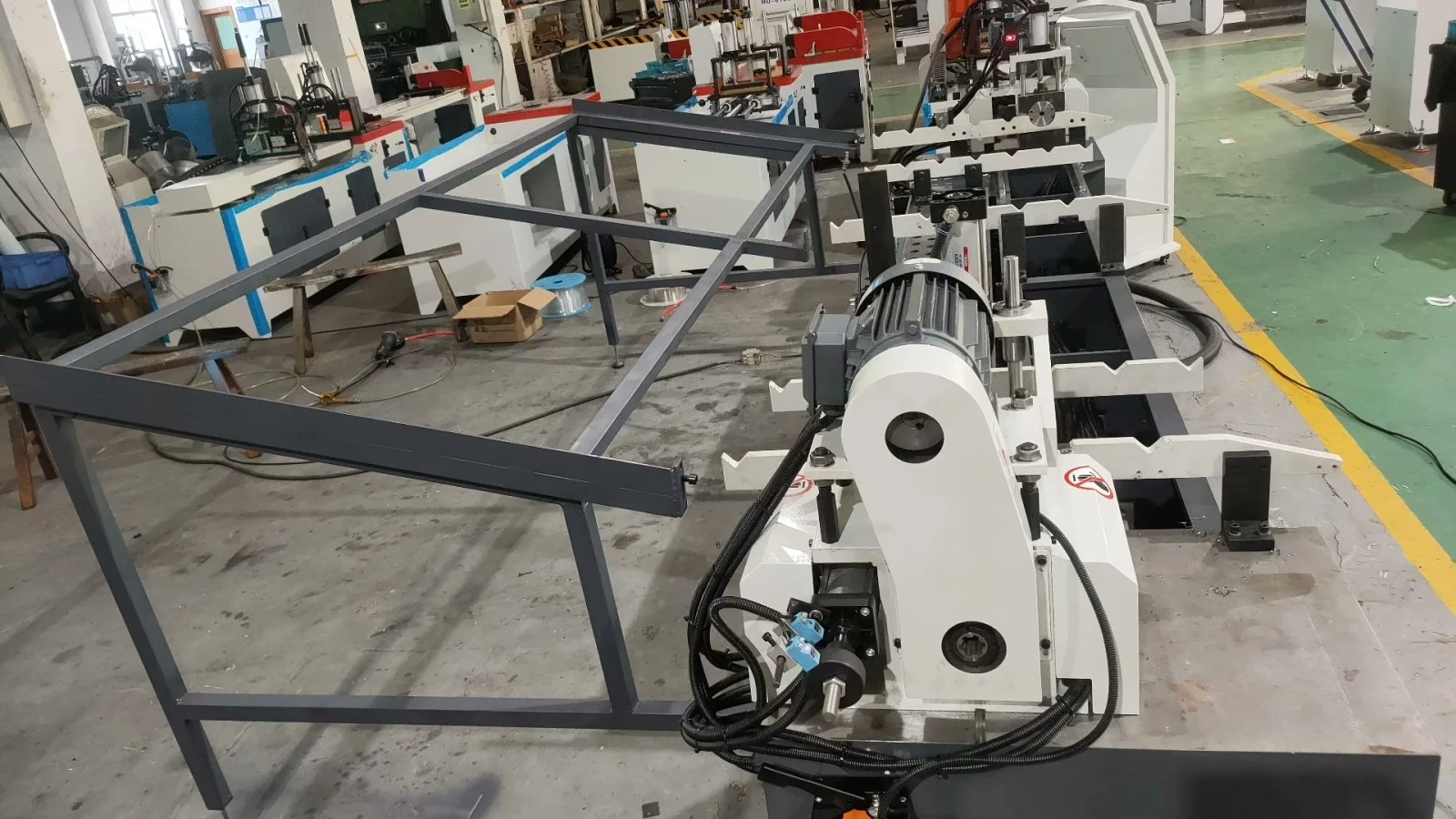

workshop layout of double head cnc chamfering machine showing dual heads and long workpiece conveying bracket

Structure and Machining Stability

The machine is built with a high-rigidity frame and a support-type material handling structure. According to different model sizes, segmented, heavy-duty, or extra heavy-duty support systems are applied to ensure stable positioning of long and large-diameter workpieces.

This design helps reduce common issues such as deflection in long materials, eccentric rotation of large tubes, and vibration during thick-wall cutting. Linear guideways and ball screw transmission systems are used to maintain stable feeding and repeatable positioning accuracy.

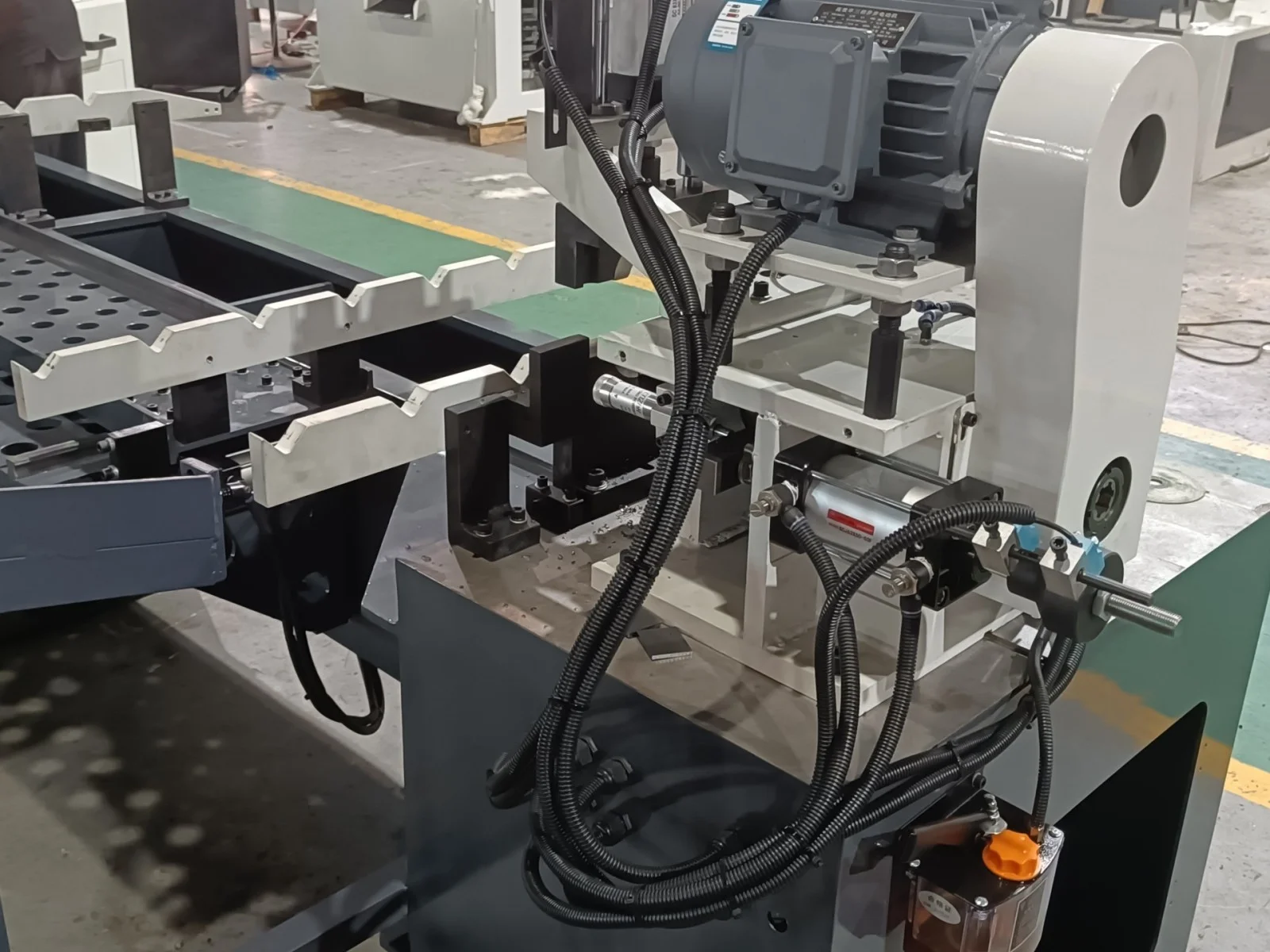

side view of single head for double head cnc servo chamfering machine showing motor drive and pneumatic clamping structure

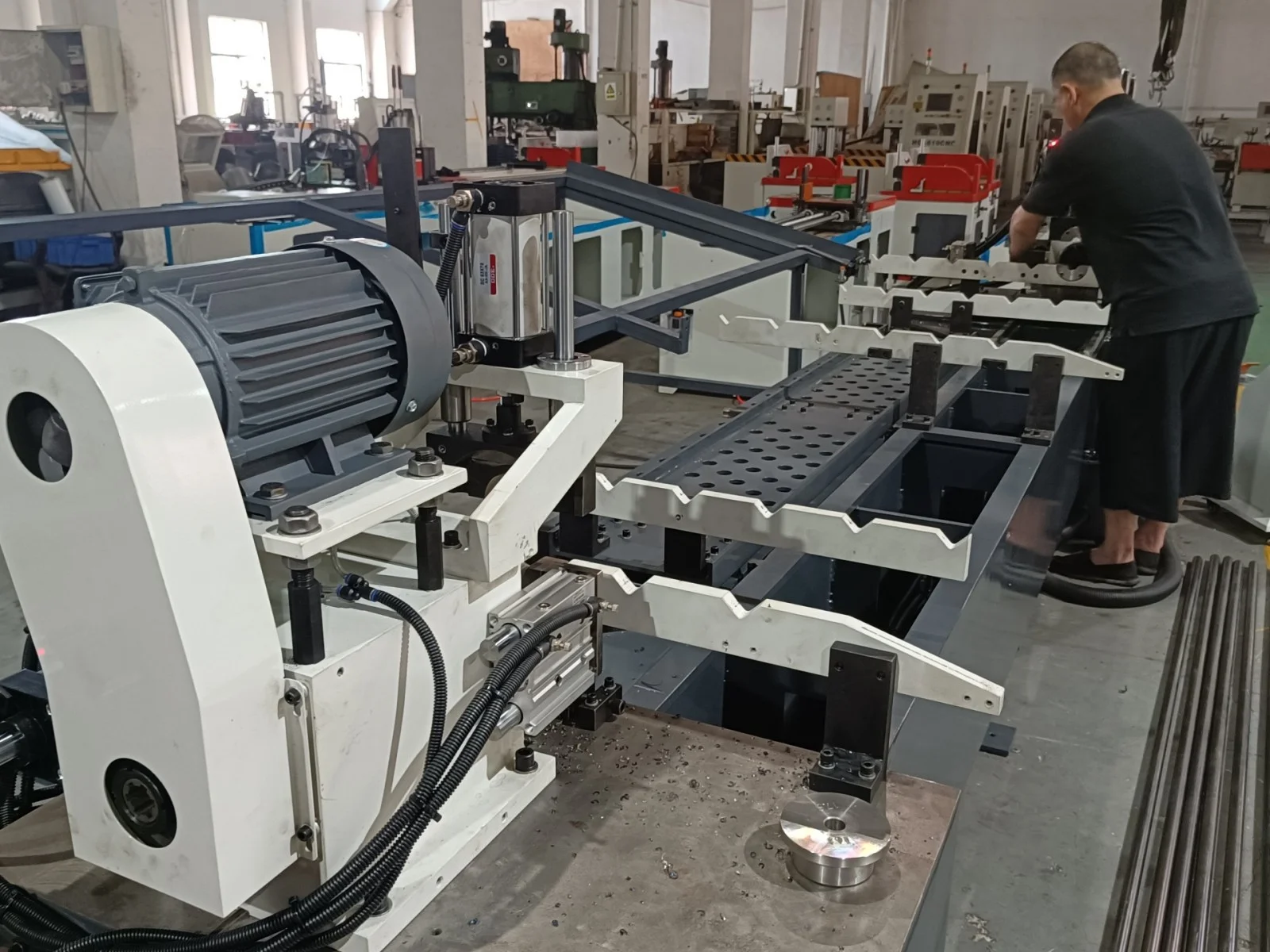

workpiece loading station of double head chamfering machine showing worker operation and round bar stock to be processed

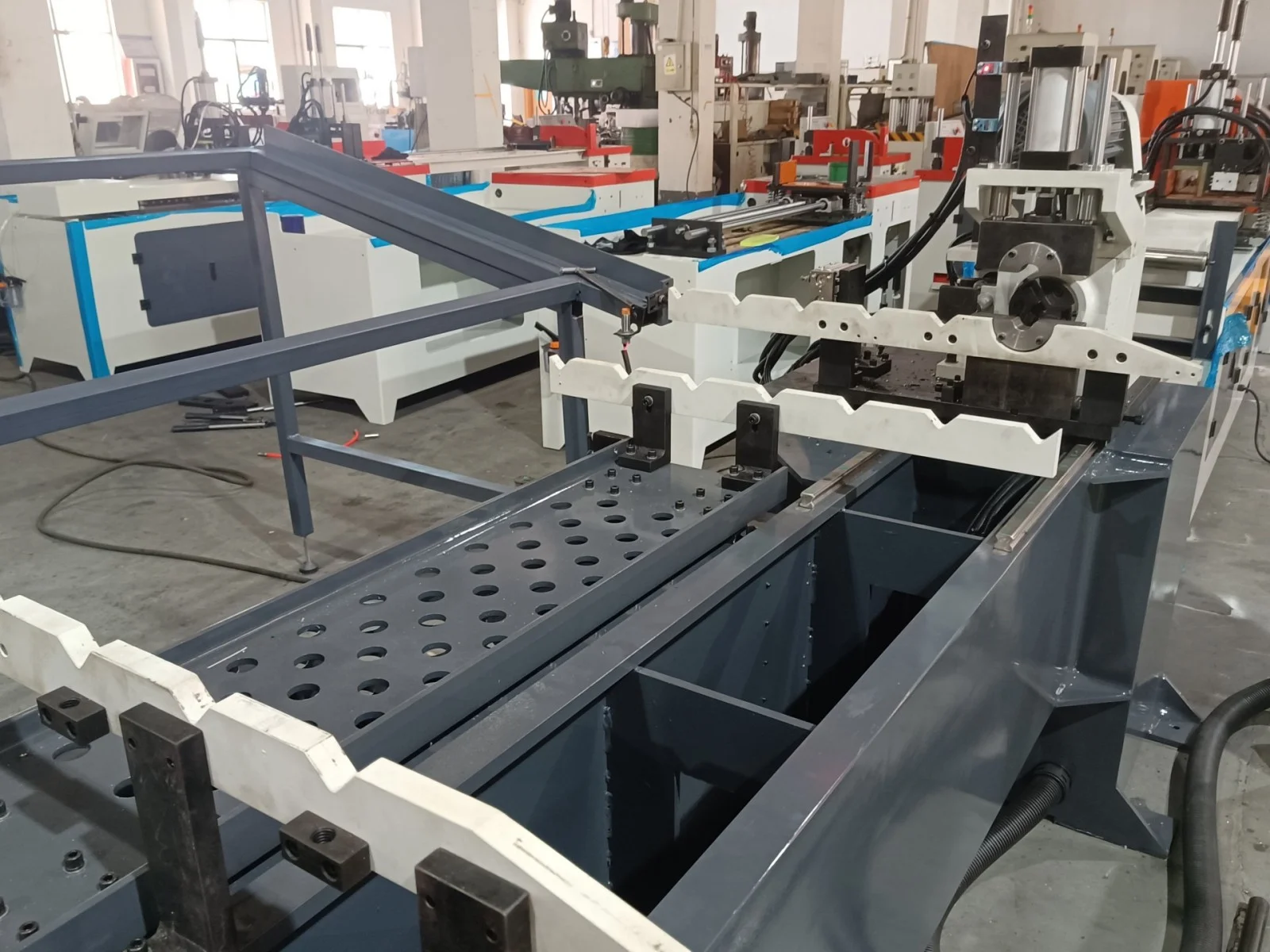

workpiece support and conveying system of double head cnc chamfering machine showing long material positioning bracket

Custom Chamfering Solutions

The AEK-SM series can be configured based on specific processing requirements. Customization options include:

Chamfering angle and tool configuration
Support system design for different workpiece lengths
Clamping method (pneumatic or hydraulic)
Loading and unloading methods (manual, semi-automatic, or automatic)
Integration into automated production lines

These configurations allow the machine to be adapted to different materials, dimensions, and production requirements.

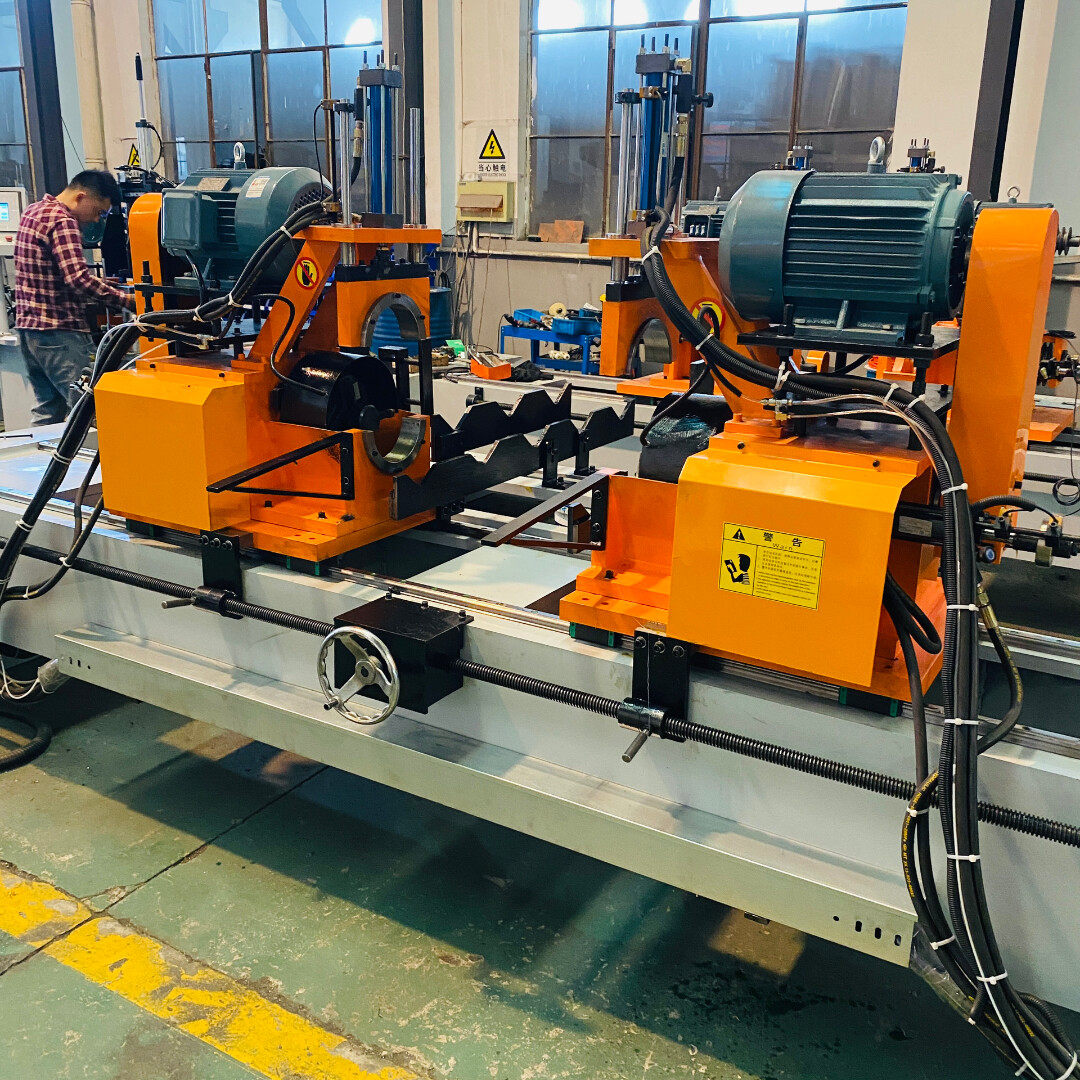

cnc double head pipe chamfering machine for o80 200 mm range

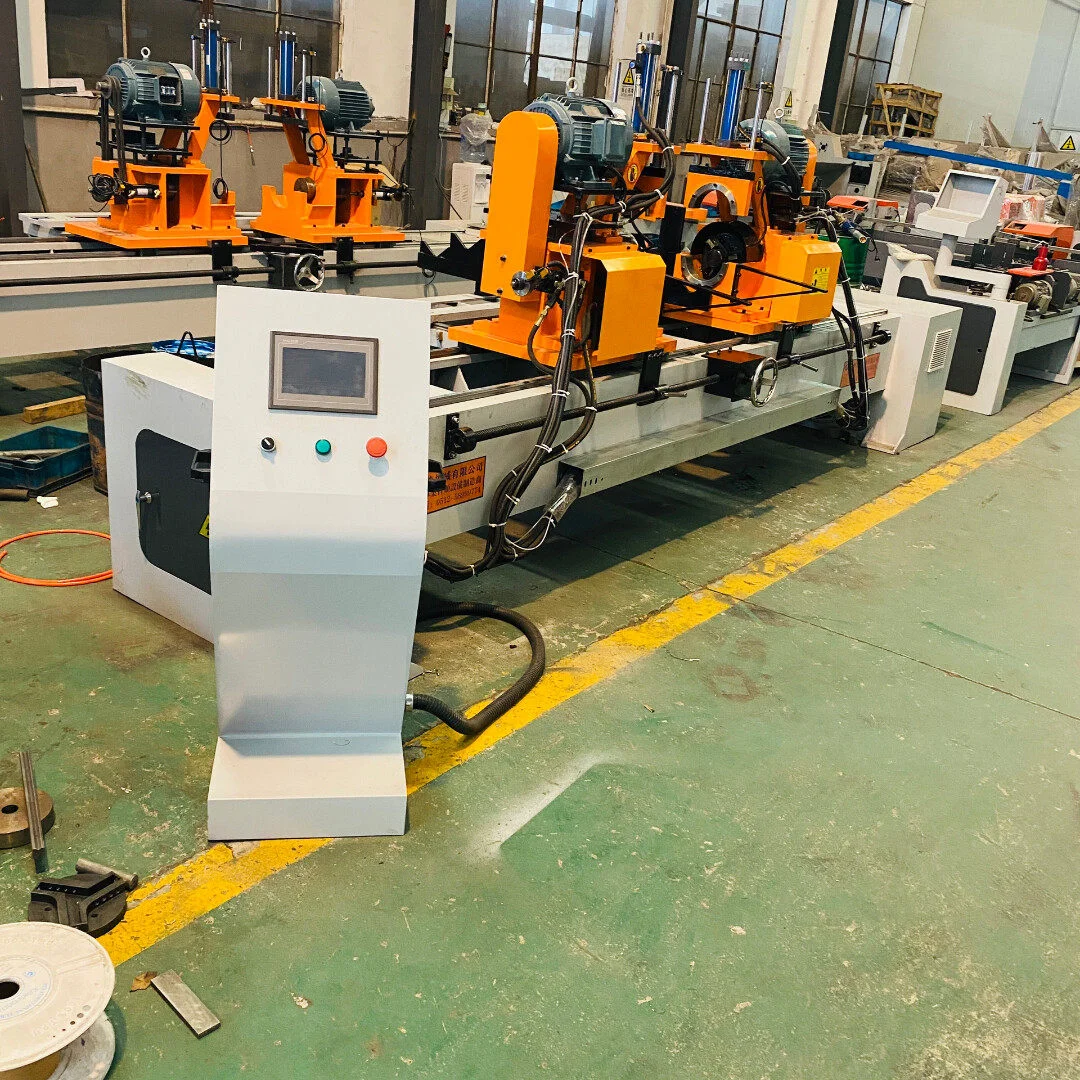

cnc double head servo fully automatic feeding chamfering machine

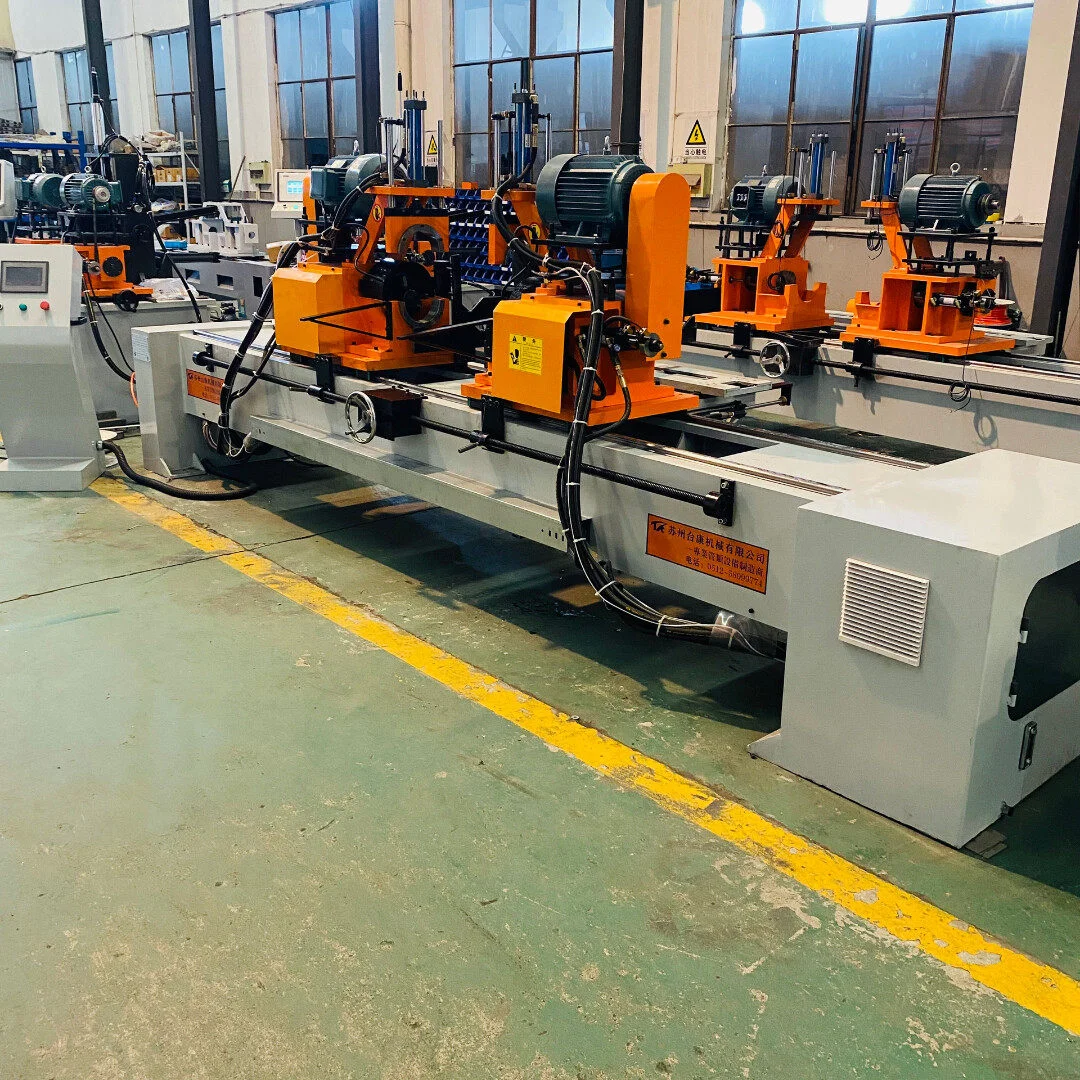

double head chamfering machine for large diameter pipe end finishing

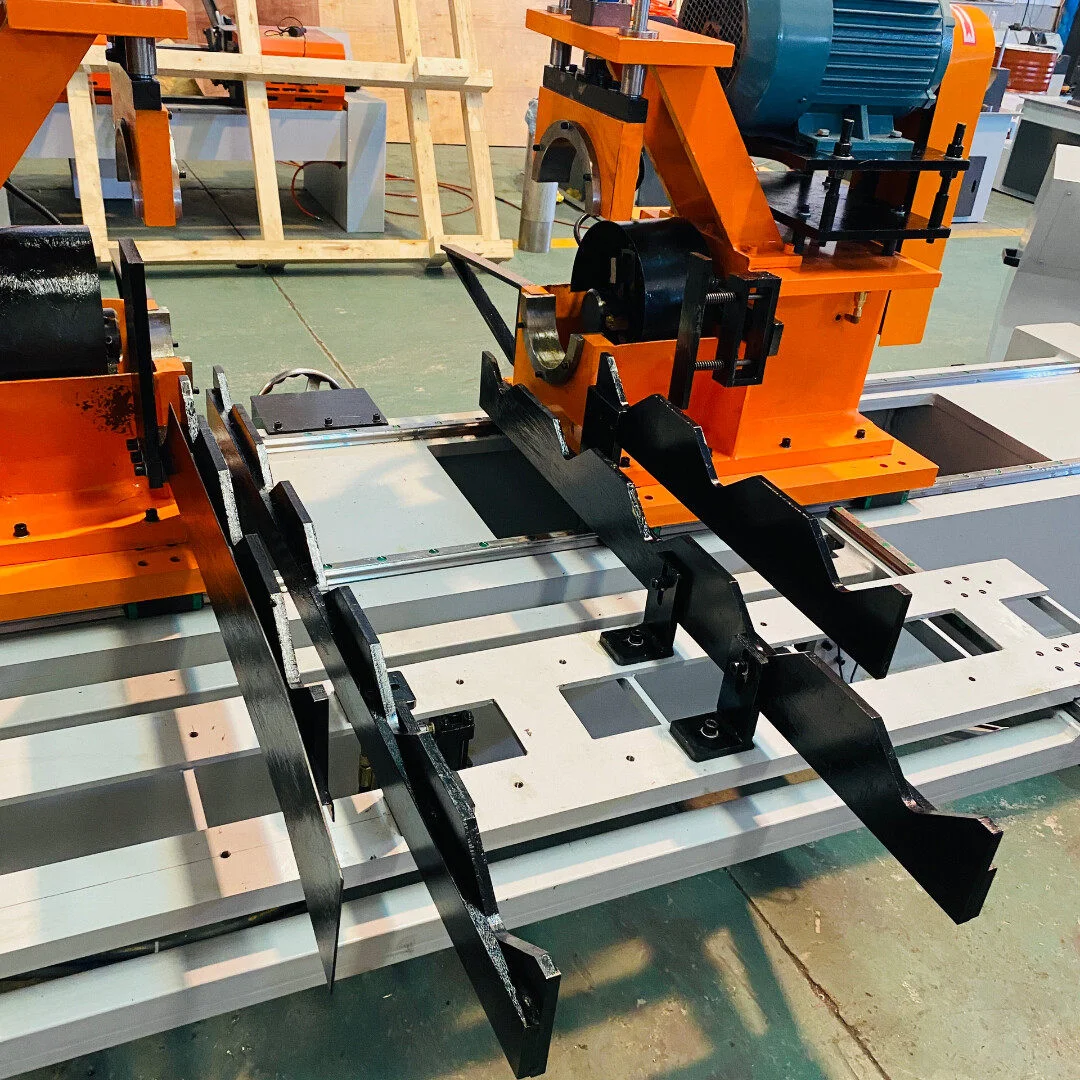

double head cnc servo chamfering machine overall structure showing dual heads and workpiece support brackets

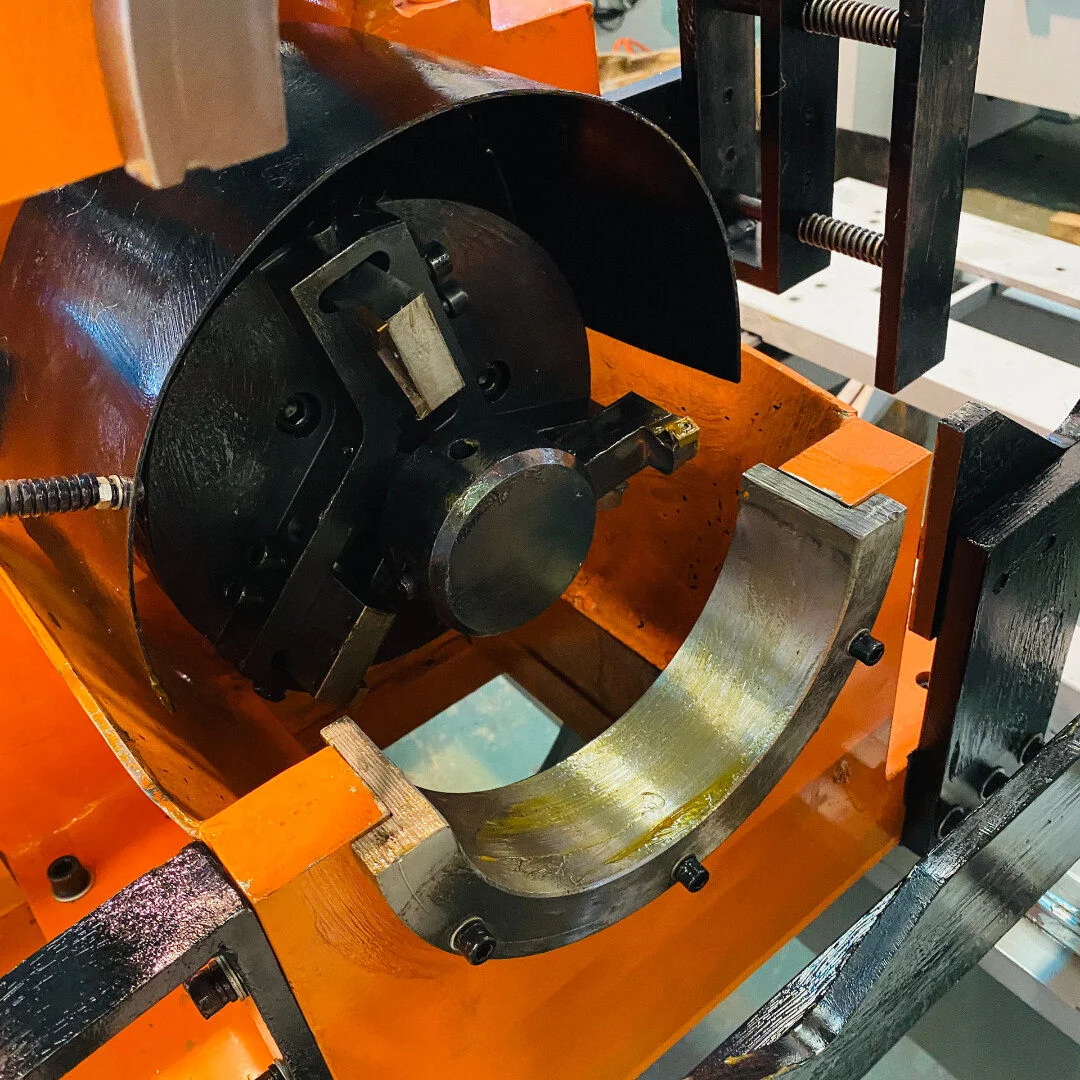

close up of double head chamfering machine machining head showing 3 jaw chuck and innerouter chamfering tools

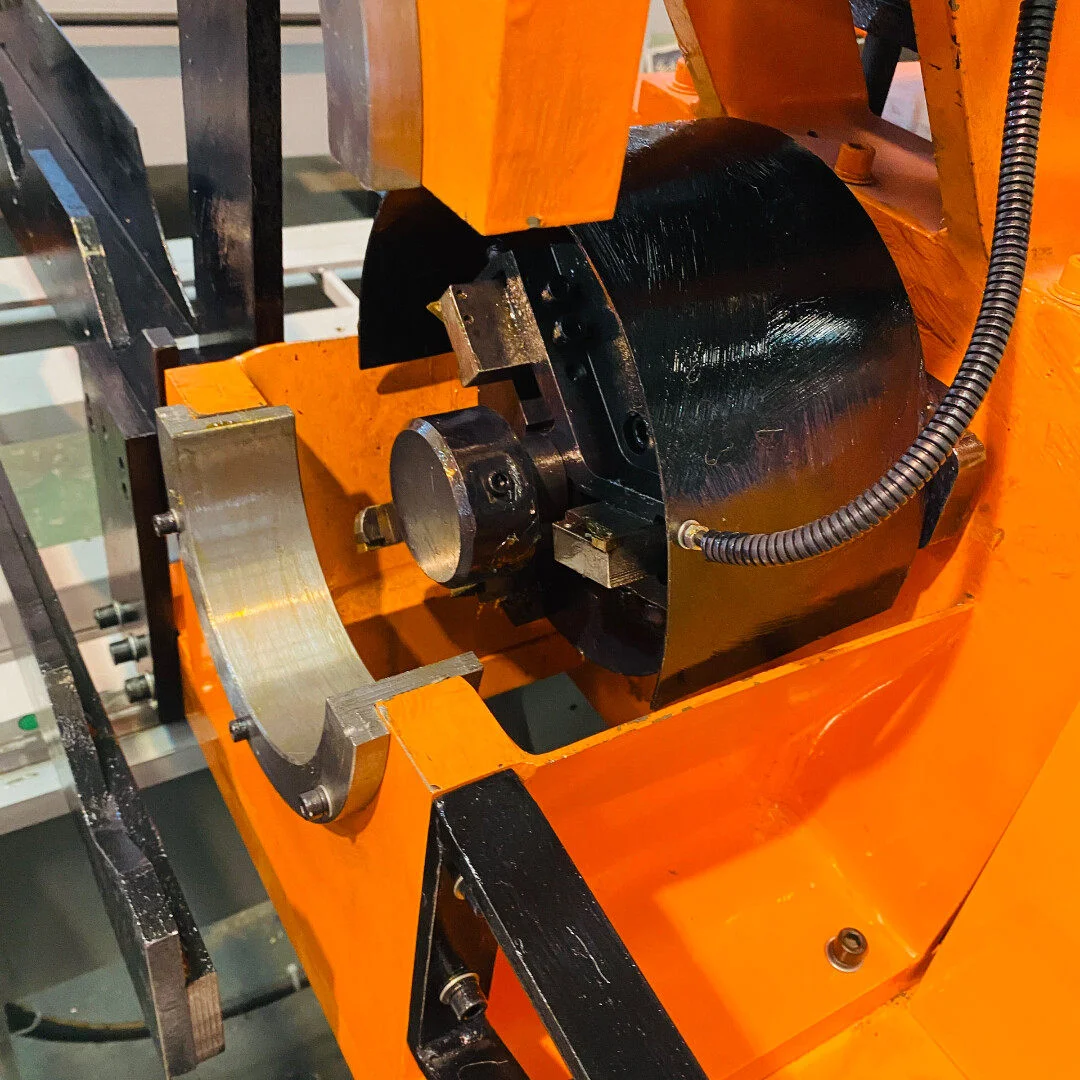

close up of double head chamfering machine machining station showing workpiece clamping and chamfering execution structure

Control and Operation

The feeding system is driven by dual servo motors with closed-loop control, ensuring stable and repeatable machining accuracy. Depending on the model, the machine is equipped with a PLC or CNC control system with a touchscreen interface for parameter setting and operation monitoring.

The machine supports automatic operation including feeding, clamping, chamfering, and unloading. This reduces manual intervention and supports continuous production.

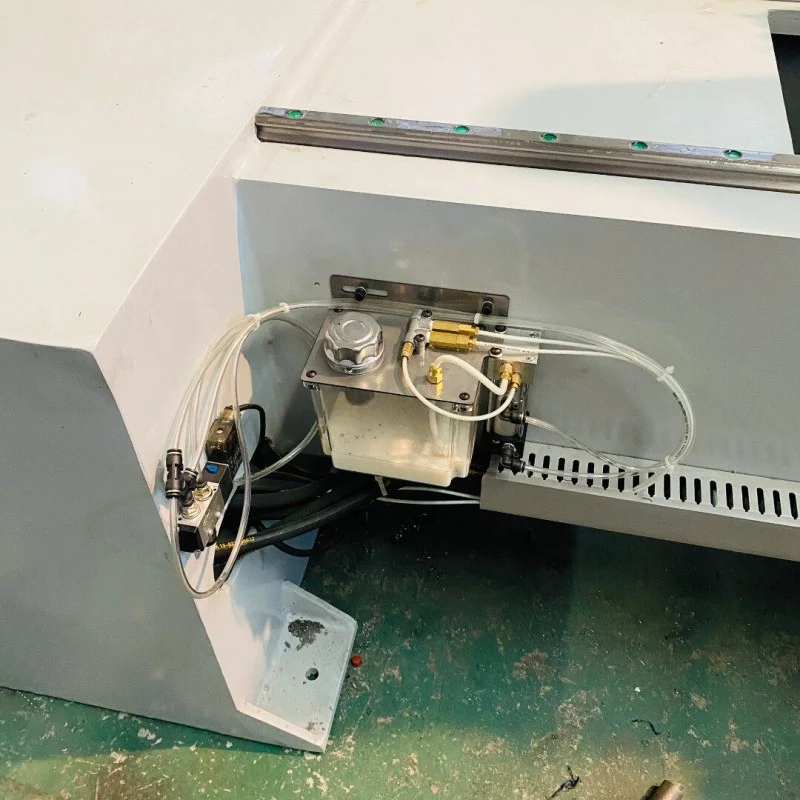

automatic lubrication system of double head chamfering machine including lubricant tank pneumatic solenoid valve and oil pipeline

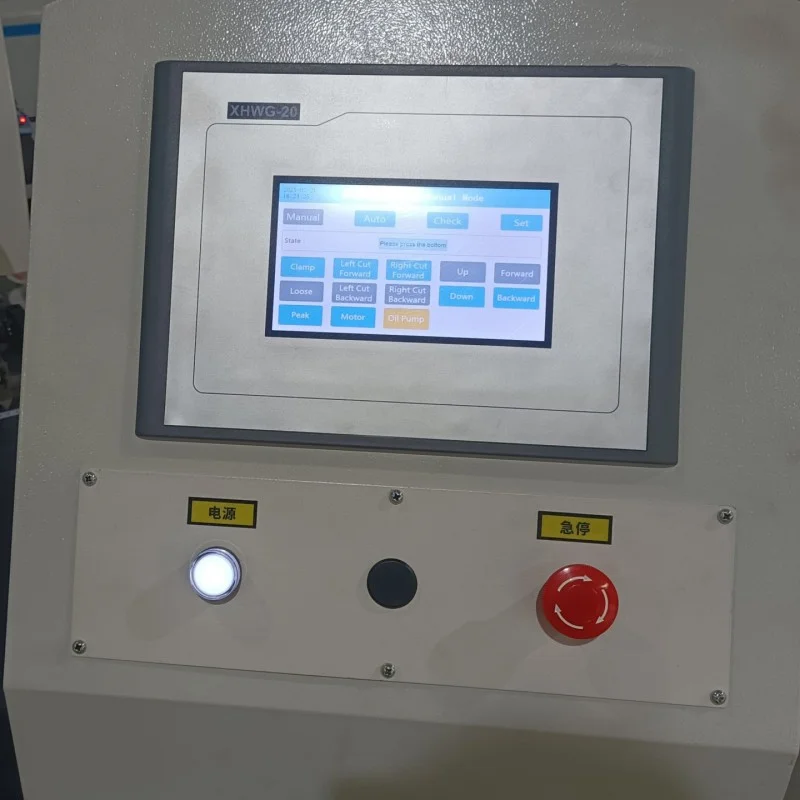

touch operation panel for double head cnc chamfering machine with manualauto mode and emergency stop button

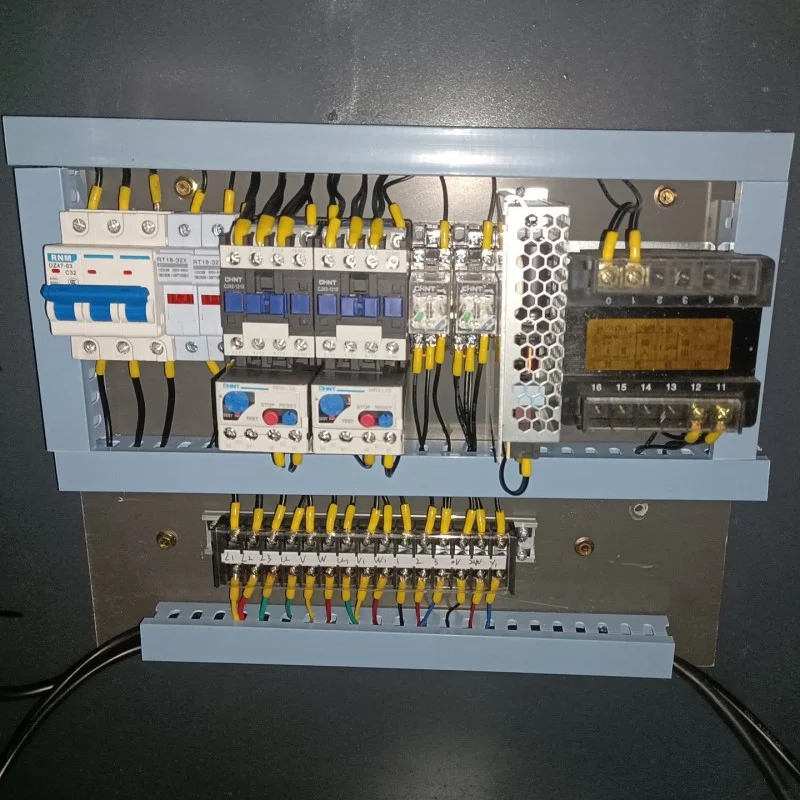

internal view of double head chamfering machine electrical control box including circuit breakers contactors terminal blocks and other components

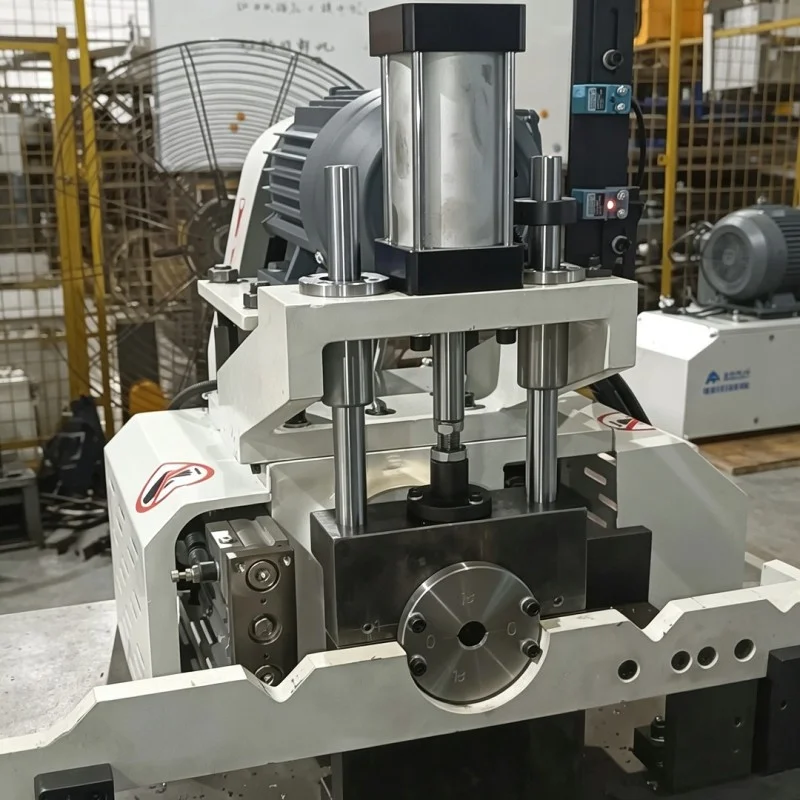

servo feed head of double head cnc chamfering machine showing cylinder drive and tool mounting structure

Applications

Suitable for processing carbon steel, stainless steel, aluminum, copper, and alloy materials. Typical applications include:

Automotive components
Structural and construction parts
Pipe and fluid systems
Hardware and fittings
General metal machining

Model	AEK-80SM	AEK-100SM	AEK-120SM	AEK-150SM	AEK-180SM	AEK-200SM
Outer Diameter Range	Ø10–80 mm	Ø15–100 mm	Ø30–120 mm	Ø40–150 mm	Ø50–180 mm	Ø60–200 mm
Workpiece Length	50–1000 mm	80–1500 mm	100–2000 mm	150–2500 mm	200–3000 mm	250–3500 mm
Wall Thickness	0.5–8 mm	1–10 mm	2–12 mm	3–16 mm	5–20 mm	5–25 mm
Machining Accuracy	±0.02 mm	±0.03 mm	±0.05 mm	±0.08 mm	±0.10 mm	±0.15 mm
End Face Perpendicularity	≤0.02 mm	≤0.03 mm	≤0.04 mm	≤0.05 mm	≤0.08 mm	≤0.10 mm
Surface Roughness	Ra ≤1.6	Ra ≤1.6	Ra ≤3.2	Ra ≤3.2	Ra ≤6.3	Ra ≤6.3
Chamfering Angle	30°–90° Adjustable	30°–90° Adjustable	30°–90° Adjustable	30°–90° Adjustable	30°–90° Adjustable	30°–90° Adjustable
Processing Functions	Inner & Outer Chamfering, Facing, Deburring	Inner & Outer Chamfering, Facing, Deburring	Inner & Outer Chamfering, Facing, Deburring	Inner & Outer Chamfering, Facing, Beveling	Inner & Outer Chamfering, Facing, Beveling	Inner & Outer Chamfering, Facing, Beveling
Cycle Time	3–5 s	4–6 s	5–7 s	6–9 s	8–12 s	10–15 s
Feeding Drive	Dual Servo Motors	Dual Servo Motors	Dual Servo Motors	Dual Servo Motors	Dual Servo Motors	Dual Servo Motors
Servo Feed Power	0.75 kW ×2	1.0 kW ×2	1.5 kW ×2	2.2 kW ×2	3.0 kW ×2	3.0 kW ×2
Spindle Motor Power	1.5 kW ×2	2.2 kW ×2	3.0 kW ×2	4.0 kW ×2	5.5 kW ×2	5.5 kW ×2
Spindle Speed	1500–3000 rpm	1200–2500 rpm	1000–2000 rpm	800–1500 rpm	600–1200 rpm	500–1000 rpm
Control System	PLC + HMI	PLC + HMI	PLC + HMI	CNC / PLC	CNC / PLC	CNC / PLC
HMI Screen Size	7″ Touchscreen	7″ Touchscreen	10″ Touchscreen	10″ Touchscreen	10–12″ Touchscreen	12″ Touchscreen
Clamping Method	Pneumatic / Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Support Structure	Segmented Support	Segmented Support	Heavy-Duty Support	Heavy-Duty Support	Extra Heavy-Duty Support	Extra Heavy-Duty Support
Transmission System	Precision Linear Guides + Ball Screws	Precision Linear Guides + Ball Screws	Heavy-Duty Linear Guides + Ball Screws	Heavy-Duty Linear Guides + Ball Screws	Extra Heavy-Duty Linear Guides + Ball Screws	Extra Heavy-Duty Linear Guides + Ball Screws
Power Supply	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase
Applicable Materials	Carbon Steel, Stainless Steel, Copper, Aluminum, Alloys	Same	Same	Same	Same	Same
