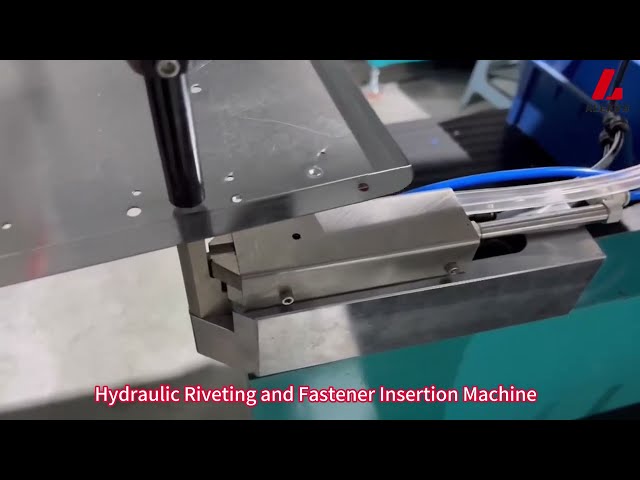

Hydraulic Riveting Machine Product Images
M820-NC Hydraulic Riveting Machine: Core Features and Performance
- Stable and Durable Structure: Built with a high-rigidity one-piece frame (1160 × 940 × 2070 mm) to prevent deformation and vibration, ensuring riveting accuracy. The hydraulic and electrical components are sourced from international brands, providing long-term reliability and a service life exceeding 15 years.
- High-Precision Riveting Performance: The pneumatic-hydraulic system delivers a pressure range of 6–78 kN with a maximum riveting force of 8 tons. A 200 mm stroke, 510 mm throat depth, and 400 mm throat height accommodate various workpiece sizes. The pressure-holding function maintains constant force to prevent loosening, ideal for stainless steel and other high-strength materials.
- Safe and Easy Operation: Equipped with multi-layer hand protection suitable for conductive and non-conductive materials. The PLC control systemand 7-inch TG765G touch screen provide an intuitive interface, allowing precise pressure setup within 5 seconds.
- Intelligent Anti-Miss and Quality Protection: The anti-miss riveting system automatically detects fastener presence—no fastener, no press. The counting system records each cycle and alerts when reaching preset quantities. The forward limit protection prevents deformation or surface damage on soft or thin materials, ensuring consistent quality.
- Efficient and Energy-Saving Design: Powered by a 0 kWmotor with a 60 L oil tank, operating on 380V, 3-phase, 5-wire, 50 Hz supply. Designed for continuous and reliable industrial production.
8 Ton Fastener Insertion Machine Components
Supports Customization
Application and Compatible with Various Fastener Types
